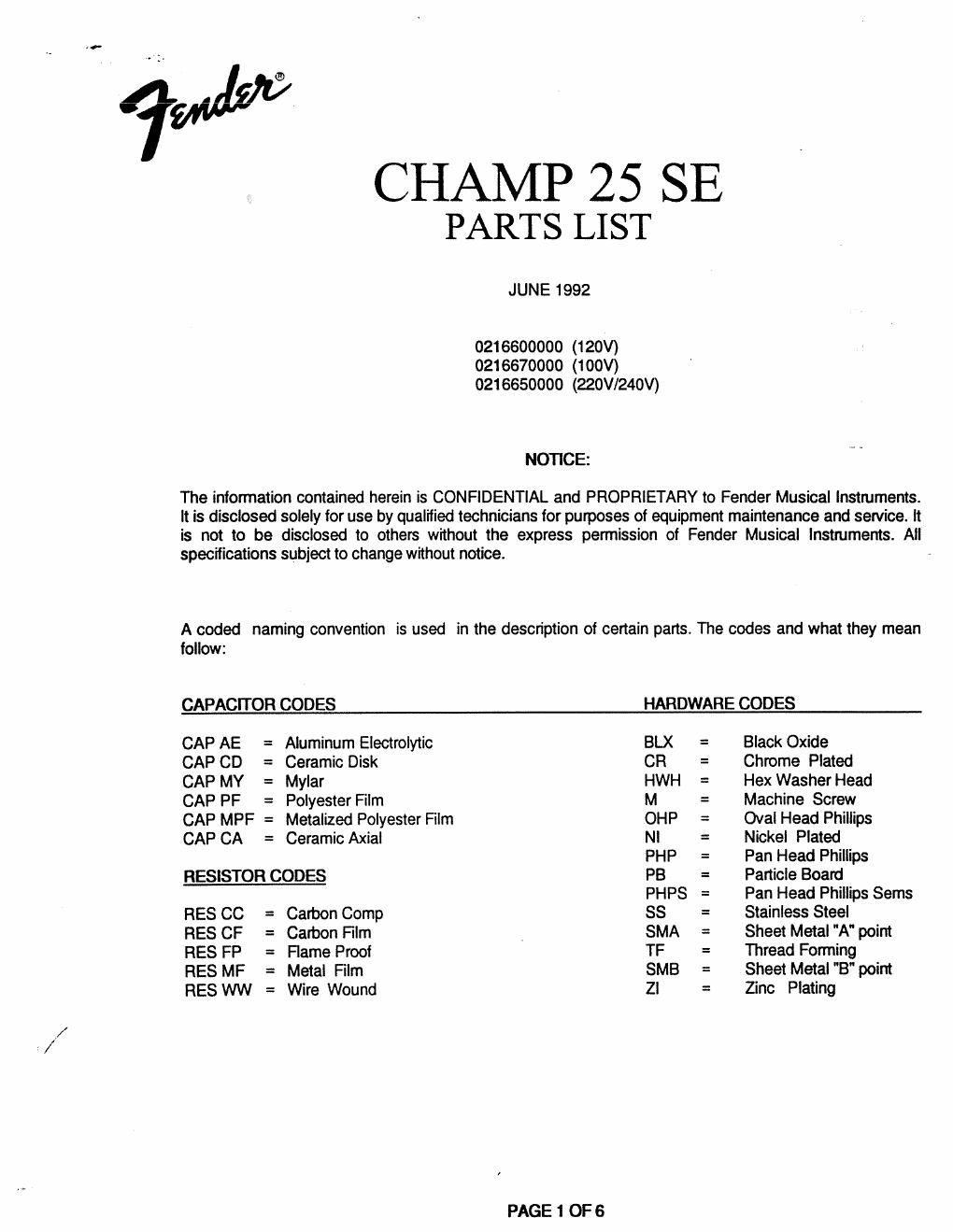

Page 1
CHAMP 25 SE
PARTS LIST
JUNE 1992
0216600000 (120V)
0216670000 (1 00V)
0216650000 (220V/240V)
NOTICE:
The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments.
It is disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It
is not to be disclosed to others without the express permission of Fender Musical Instruments. All
specifications subject to change without notice.
A coded naming convention is used in the description of certain parts. The codes and what they mean
follow:
CAPACITOR CODES HARDWARE CODES
CAP AE = Aluminum Electrolytic BLX = Black Oxide
CAP CD = Ceramic Disk CR = Chrome Plated
CAP MY = Mylar HWH = Hex Washer Head
CAP PF = Polyester Film M = Machine Screw
CAP MPF = Metalized Polyester Film OHP = Oval Head Phillips
CAP CA = Ceramic Axial NI = Nickel Plated
PHP = Pan Head Phillips
RESISTOR CODES PB = Particle Board
PHPS = Pan Head Phillips Sems
RES CC = Carbon Comp SS = Stainless Steel
RES CF = Carbon Film . SMA = Sheet Metal "A point
RES FP = Flame Proof TF = Thread Forming
RES MF = Metal Film SMB = Sheet Metal "B" point
RES W = Wire Wound ZI = Zinc Plating
PAGE 1 OFS
