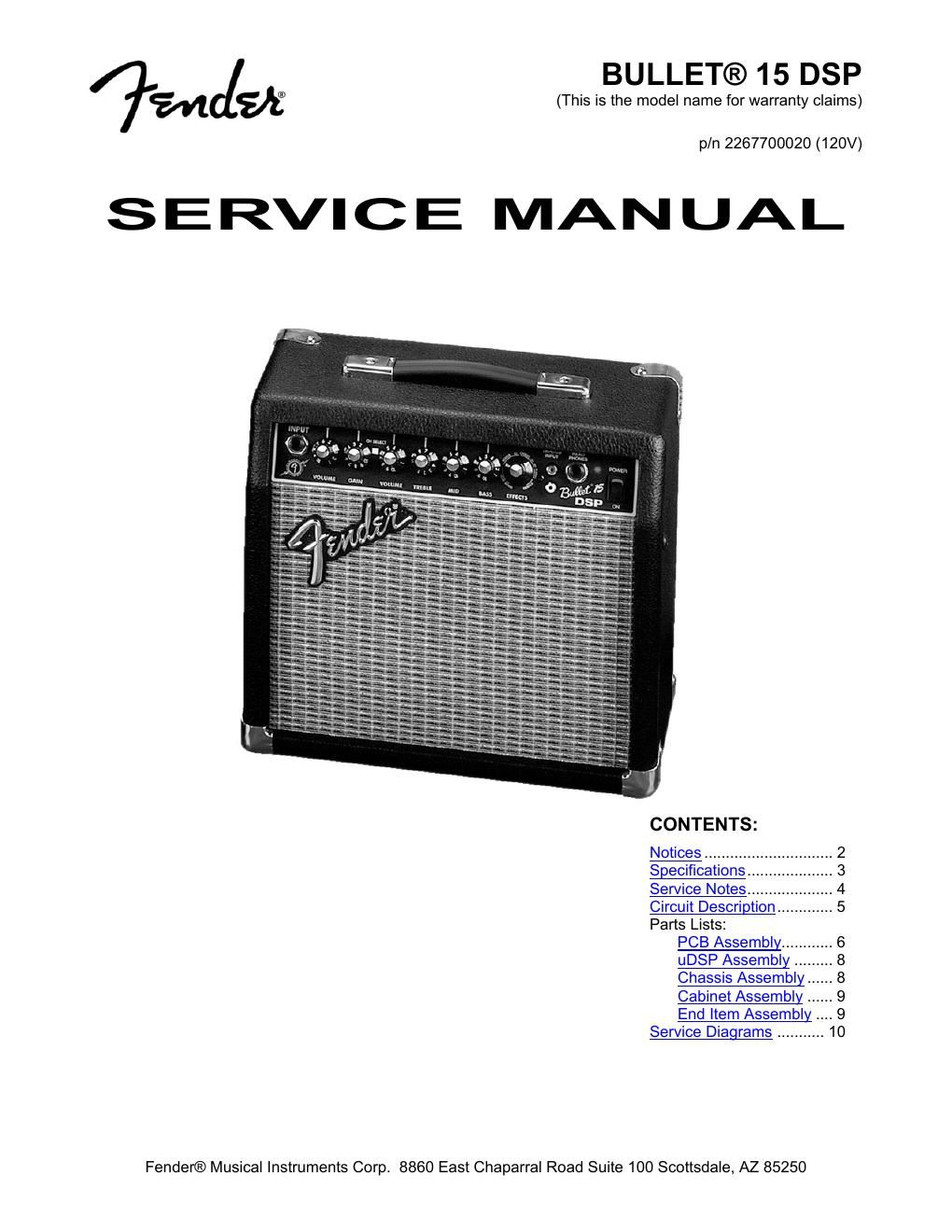

Fender bullet 15 dsp
This is the 16 pages manual for fender bullet 15 dsp.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from fender bullet 15 dsp (Ocr-read)
Page 1
BULLET® 15 DSP (This is the model name for warranty claims)2 June, 2002 IMPORTANT NOTICE Copyright © 2002 FMIC. All rights reserved. All information contained herein is CONFIDENTIAL and PROPRIETARY and is the property of Fender® Musical Instruments Corporation. It is not to be sold or assigned to another party and is disclosed solely for use by Fender Authorized Service Cen- ters for purposes of product service and maintenance. All information is not to be disclosed to others without the expressed permission of Fender® Musical Instruments Corporation. Allspecifications are subject to change without notice. This information and any copies produced elec- tronically or otherwise must be surrendered upon demand of Fender Musical Instruments Corpora- tion. Parts marked with two asterisks ( **) indicate the re- quired use of that specific part. This is necessary for RELIABILITY and SAFETY requirements. DO NOT USE A SUBSTITUTE! PARTS LIST CODES The description codes used in the itemized Parts Lists are defined below: CAPACITOR CODES CAP AE = Aluminum Electrolytic CAP CA = Ceramic Axial CAP CD = Ceramic Disk CAP MPF = Metalized Polyester Film CAP MY = Mylar CAP PFF = Polyester Film/Foil RESISTOR CODES RES CC = Carbon Comp RES CF = Carbon Film RES FP = Flame Proof RES MF = Metal Film RES WW = Wire WoundHARDWARE CODES BLX = Black Oxide CR = Chrome Plated HWH = Hex Washer Head M = Machine Screw NI = Nickel Plated OHP = Oval Head Phillips PB = Particle Board PHP = Pan Head Phillips PHPS = Pan Head Phillips Sems SMA = Sheet Metal "A" Point SMB = Sheet Metal "B" Point SS = Stainless Steel TF = Thread Forming ZI = Zinc Plated
Page 2
BULLET® 15 DSP (This is the model name for warranty claims)3 SPECIFICATIONS Model Name: Bullet 15 DSP Release Number:PR 241 (Not a model number) Part Numbers (120V, 60Hz) US:2267700020 (110V, 60Hz) TW:2267701020 (240V, 50Hz) AUS:2267703020 (230V, 50Hz) UK:2267704020 (230V, 50Hz) ARG:2267705020 (230V, 50Hz) EUR:2267706020 (100V, 50/60Hz) JPN:2267707020 (220V, 60Hz) ROK:2267709020 Power Requirement:38W Power Output:15W RMS into 8 ohms @ 5%THD Nominal Input Level:100mV for 15W into 8 ohms @ 5%THD Impedances Input (Pre-Amp):1M ohms CD Input:greater than 30k ohms Speaker Complement:One (1) 8", 8 ohm, Fender Special Design Speaker (P/N 0025421000) Dimensions Height:12.4 in (31.4 cm) Width:13.25 in (33.7 cm) Depth:7.13 in (18.1 cm) Weight:15 lbs (6.8 kg) Product specifications are subject to change without notice
