Fender blues deluxe
This is the 7 pages manual for fender blues deluxe.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from fender blues deluxe (Ocr-read)

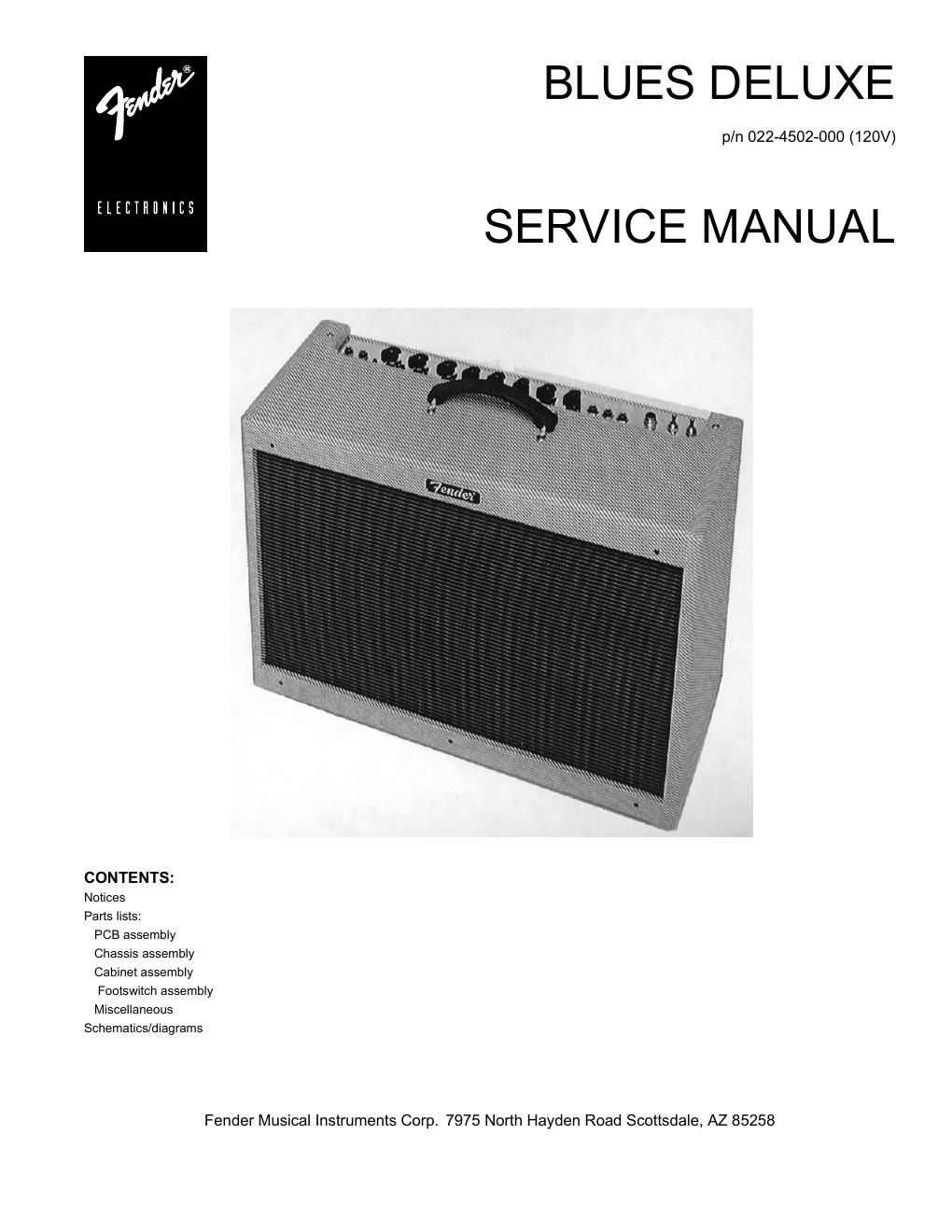

Page 1
BLUES DELUXE (This is the model name for warranty claims) SERVICE MANUAL FEBRUARY 1994 REV A IMPORTANT NOTICE: The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments Corp. It is disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It is not to be disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair. Parts marked with an asterisk ( *) indicate the required use of that specific part. This is necessary for RELIABILITY and SAFETY requirements. DO NOT USE A SUBSTITUTE! A coded naming convention is used in the description of certain parts. The codes and what they mean are as follows: CAPACITOR CODES HARDWARE CODES CAP AE = Aluminum Electrolytic BLX = Black Oxide CAP CA = Ceramic Axial CR = Chrome Plated CAP CD = Ceramic Disk HWH = Hex Washer Head CAP MPF = Metalized Polyester Film M = Machine Screw CAP MY = Mylar NI = Nickel Plated CAP PFF = Polyester Film/Foil OHP = Oval Head Phillips PB = Particle Board RESISTOR CODES PHP = Pan Head Phillips PHPS = Pan Head Phillips Sems RES CC = Carbon Comp SMA = Sheet Metal "A" Point RES CF = Carbon Film SMB = Sheet Metal "B" Point RES FP = Flame Proof SS = Stainless Steel RES MF = Metal Film TF = Thread Forming RES WW = Wire Wound ZI = Zinc Plated
Page 2
BLUES DELUXE .PARTS LIST PRINTED CIRCUIT BOARD ASSEMBLY QTY PART # DESCRIPTION REFERENCE DESIGNATION 1 047022 PCB ASSY BLUES DELUXE (STUFFED) 2 028104 BUTTON PUSH SWITCH BLACK (@S1,2) 1 025722 CABLE ASSY REVERB 1100MM (@P1-4) 3 038856 CABLE JUMPER 6 CKT .1X4.0 (@P5-11) 2 038689 CAP AE AX .47uF 100V C11,19 2 038692 CAP AE AX 10uF 35V R30,31 4 009512 CAP AE AX 22uF 25V 20% R1,8,13,16 2 024819 CA[ AE AX 22uF 500V C45,46 3 036954 CA[ AE RD; 22uF 63V 20% C40 4 028953 CAP AE AX 100uF 350V+50%-10% R34,35,41,42 3 031040 CAP AE RDL 100uF 100V 20% C37-39 2 028494 CAP AE RDL 1000uF 35V 20% C43,44 1 020909 CAP CD 47PF 1000V 10% C12 1 020917 CAP CD 250PF 1000V 10% C5 2 039261 CAP CA 330PF 100V C15,18 1 038874 CAP CA 560PF 50V C20 2 025951 CAP CD 750PF 1000V 10% C3,4 1 039264 CAP CA 1500PF 100V C50 1 033580 CAP PFF RDL .0022uF 100V 10% C17 1 033583 CAP PFF RDL .0047uF C49 1 024823 CAP MPF RDL .01uF 400V 10% C2 1 036234 CAP PFF RDL .015uF 100V 10% C21 3 024833 CAP MPF RDL .022uF 400V 10% C7,9,23 1 033591 CAP PFF RDL .033uF 100V 10% C28 1 024839 CAP MPF .033uF 400V C14 1 027272 CAP MPF .047uF 63V C10 1 033592 CAP PFF RDL .047uF 100V 10% C32 2 024853 CAP MPF RDL .1uF 250V 10% C22,24 1 024854 CAP MPF RDL .1uF 400V 10% C6 2 024855 CAP MPF RDL .1uF 630V 10% C25,26 1 027286 CAP MPF .47uF 63V C27 1 041510 CONTROL SNAPIN 25K B R14 1 047031 CONTROL SNAPIN 25K 30C TAPER R42 1 037600 CONTROL SNAPIN 100K B R38 2 047540 CONTROL SNAPIN 250K 15A R7,17 1 037597 CONTROL SNAPIN 250K 30A R12 2 041507 CONTROL SNAPIN 1M 10A R13,21 8 006260 DIODE 1N4448/1N914B SIGNAL CR1,5,6,7,9,10,11,12,13 4 026730 DIODE 1N4006/1N5062 800PRV 1A CR14-17 3 064089 DIODE 1N4003 CR19-21 2 029690 DIODE HV 3KV 200MA CR24,25 2 028119 DIODE ZEN 1N5353V 16V 5W CR22,23 2 031019 DIODE ZEN 1N5245B 15V .5W 5% CR2,3 23 025802 FSTN TB MALE .250X.032 PCBMT CP1-23 2 016795 IC DUAL OP AMP TL072 U1,2 2 031611 IC DUAL OP AMP PC4560 U3,4 1 031570 JACK PHONE PCB STEREO PREMIUM J3 4 037036 JACK PHONE PCB MONOCA PREMIUM J1,2,4,5 43 020888 JUMPER WIRE 22GA.5X.175 Q1-43 6 026043 JUMPER WIRE 18GA.8X.175 JP1-3, 5-7 1 028039 LED RED 5X5MM SLB-55VR3 LD1 1 047006 PCB FAB BLUES DLX/DVL (RAW BOARD) 2 031901 PIN MALE PCB .093 SP1,2 2 036613 RELAY DPDT DIP 24 VOLT 8.3mA RY1,2 1 025818 RES CF 1/4W 5% 4.7Ω R92 1 024947 RES CF 1/4W 5% 47Ω R31 1 024961 RES CF 1/4W 5% 470Ω R49 2 024962 RES CF 1/4W 5% 560ΩR72,74 1 024965 RES CF 1/4W 5% 1K R61 10 024969 RES CF 1/4W 5% 1.5K R5,10,19,28,36,39,41,55,56
