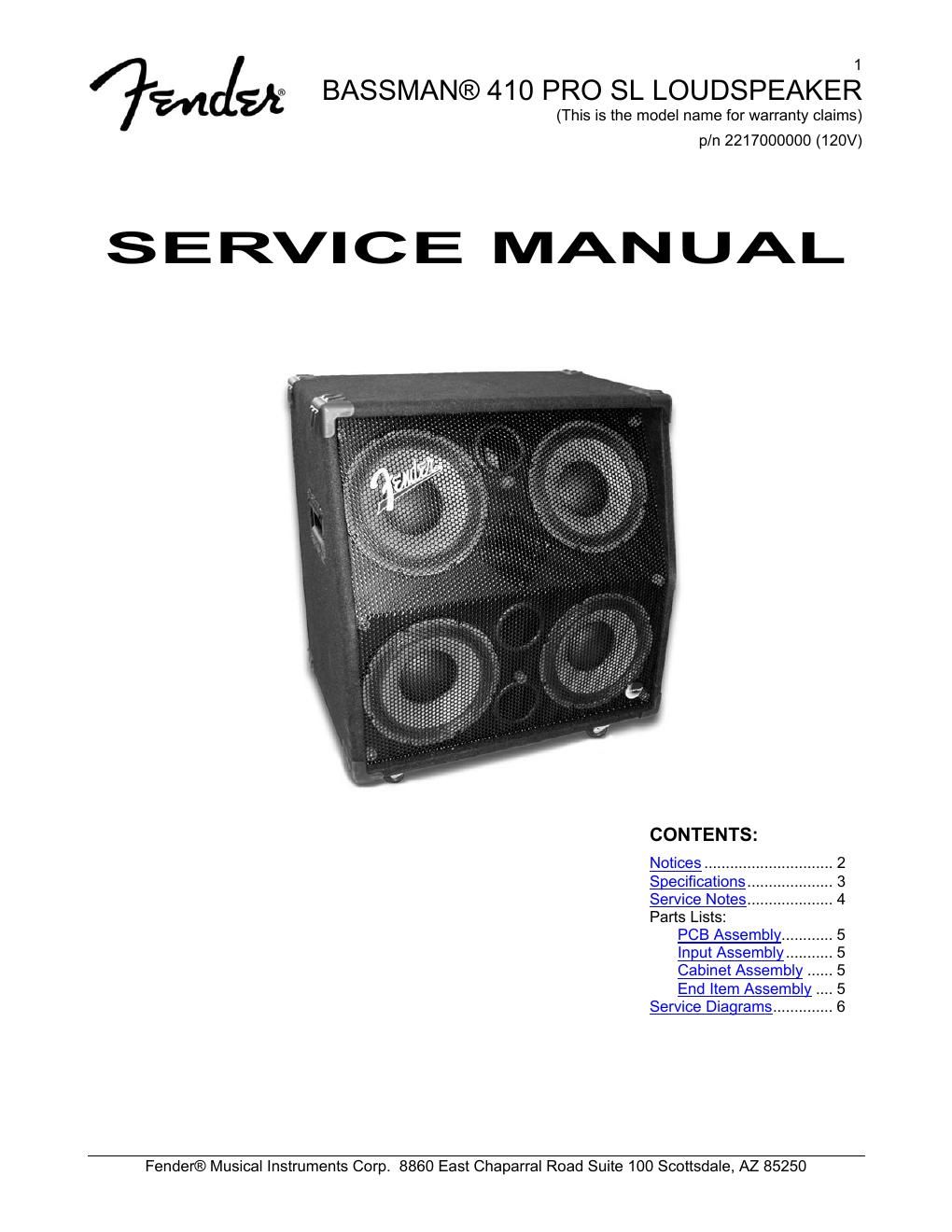

Page 1
1
a» BASSMAN® 410 PRO SL LOUDSPEAKER
?Wdfl (This is the model name for warranty claims)
p/n 2217000000 (120V)
SERVICE MANUAL
CONTENTS:
Notices ..
SQecifications ..
Service Notes .....
Parts Lists:
PCB Assembly...
lngut Assembly...
Cabinet Assembly .
End Item Assembly
Service Diagrams ..............
Fender® Musical Instruments Corp. 8860 East Chaparral Road Suite 100 Scottsdale, AZ 85250
Page 2
This is the model name for warranty claims)
2
J BASSMAN® 410 PRO SL LOUDSPEAKER
7'?! 7A (
June, 2002
IMPORTANT NOTICE
c Copyright © 2002 FMIC. All rights reserved. All
information contained herein is CONFIDENTIAL
and PROPRIETARY and is the property of
Fender® Musical Instruments Corporation. It is
not to be sold or assigned to another party and is
disclosed solely for use by Fender Authorized
Service Centers for purposes of product service
and maintenance. All information is not to be dis-
closed to others without the expressed permission
of Fender® Musical Instruments Corporation. All
specifications are subject to change without no-
tice. This information and any copies produced
electronically or otherwise must be surrendered
upon demand of Fender Musical Instruments Cor-
poration.
0 Parts marked with two asterisks (**) indicate the
required use of that specific part. This is neces-
sary for RELIABILITY and SAFETY requirements.
DO NOT USE A SUBSTITUTE!
PARTS LIST CODES
The description codes used in the itemized Parts Lists are defined below:
CAPACITOR CODES
CAP AE = Aluminum Electrolytic
CAP CA = Ceramic Axial
CAP CD = Ceramic Disk
CAP MPF = Metalized Polyester Film
CAP MY = Mylar
CAP PFF = Polyester Film/Foil
RESISTOR CODES
RES CC = Carbon Comp
RES CF = Carbon Film
RES FP = Flame Proof
RES MF = Metal Film
RES W = Wire Wound
HARDWARE CODES
BLX = Black Oxide
CR = Chrome Plated
HWH = Hex Washer Head
M = Machine Screw
NI = Nickel Plated
OHP = Oval Head Phillips
PB = Particle Board
PHP = Pan Head Phillips
PHPS = Pan Head Phillips Sems
SMA = Sheet Metal "A" Point
SMB = Sheet Metal "B" Point
SS = Stainless Steel
TF = Thread Forming
21 Zinc Plated
