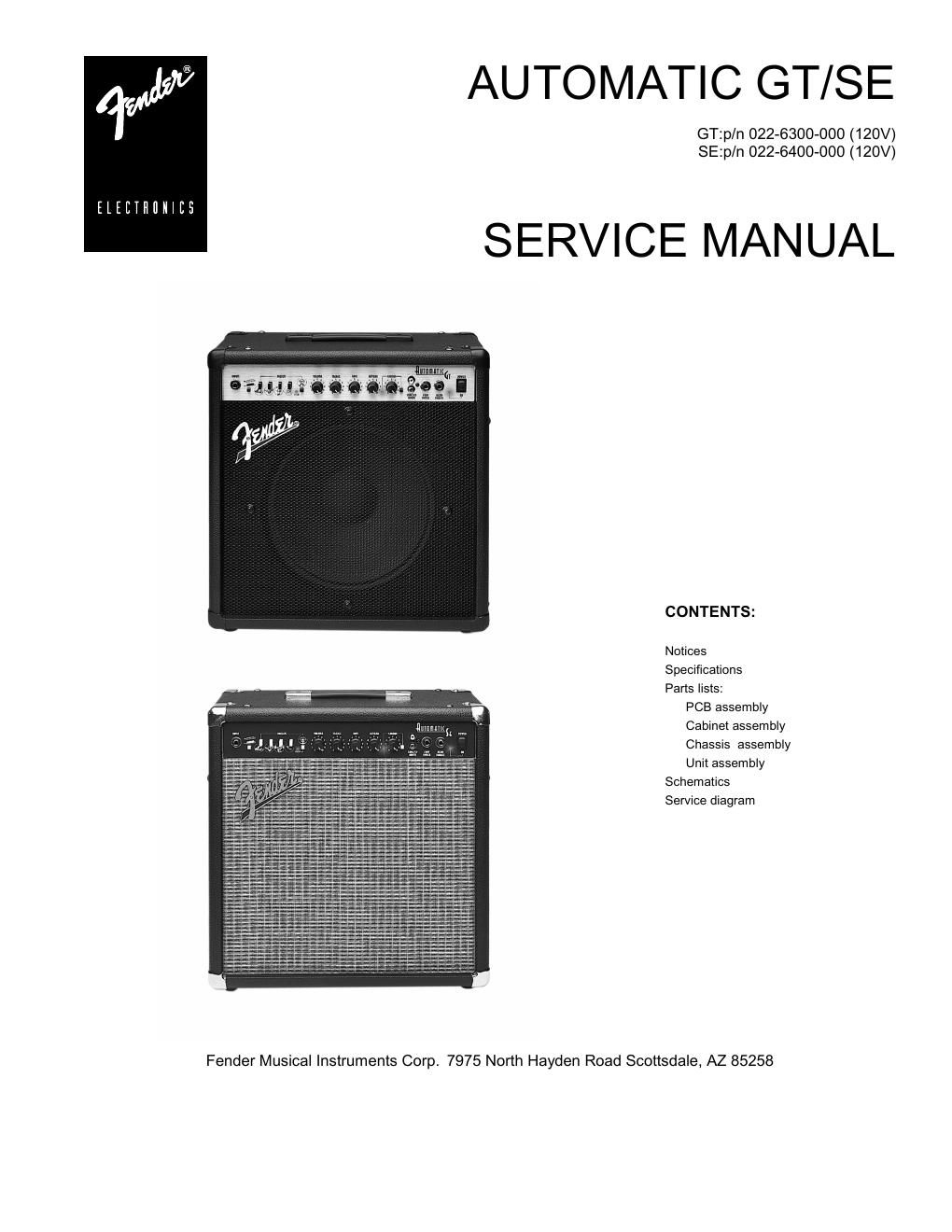

AUTOMATIC GT - AUTOMATIC SE (These are the model names for warranty claims) SERVICE MANUAL JUNE 1997 IMPORTANT NOTICE: The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments Corp. It is disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It is not to be disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair. Parts marked with an asterisk ( *) indicate the required use of that specific part. This is necessary for RELIABILITY and SAFETY requirements. DO NOT USE A SUBSTITUTE! A coded naming convention is used in the description of certain parts. The codes and what they mean are as follows: CAPACITOR CODES HARDWARE CODES CAP AE = Aluminum Electrolytic BLX = Black Oxide CAP CA = Ceramic Axial CR = Chrome Plated CAP CD = Ceramic Disk HW H = Hex W asher Head CAP MPF = Metalized Polyester Film M = Machine Screw CAP MY = Mylar NI = Nickel Plated CAP PFF = Polyester Film/Foil OHP = Oval Head Phillips PB = Particle Board RESISTOR CODES PHP = Pan Head Phillips PHPS = Pan Head Phillips Sems RES CC = Carbon Comp SMA = Sheet Metal "A" Point RES CF = Carbon Film SMB = Sheet Metal "B" Point RES FP = Flame Proof SS = Stainless Steel RES MF = Metal Film TF = Thread Forming RES W W = W ire W ound ZI = Zinc Plated
Page 2
AUTOMATIC GT/SE SPECIFICATIONS Product Release No.:PR 329 (This is not a model number) Part Number: GT: SE: 120V Version: 22-6300 22-6400 240V Aust: 22-6330 22-6430 230V UK: 22-6340 22-6440 230V Euro: 22-6360 22-6460 100V 22-6370 22-6470 Power Specification:100V Version: 100 V AC, 50/60 Hz, 90 W 120V Version: 120 V AC, 60 Hz, 90 W 230V Version: 230 V AC, 50 Hz, 90 W 240V Version: 240 V AC, 50 Hz, 90 W Power output:24 W into 8Ω @ 5% THD Input Impedance:Instrument: > 500 kΩ Tape/CD: 12 kΩ Nominal Input Level:Instrument: 100 mV Input Sensitivity:Tape/CD: 120 mV for clipping Speaker:One Fender Special Design 12" Speaker (P/N 025923) Dimensions:Height: 17.5" (44 cm) Width: 17" (43 cm) Depth: 9.5" (24 cm) Weight:28 lbs. (12.7 kg) Product specifications are subject to change without notice
