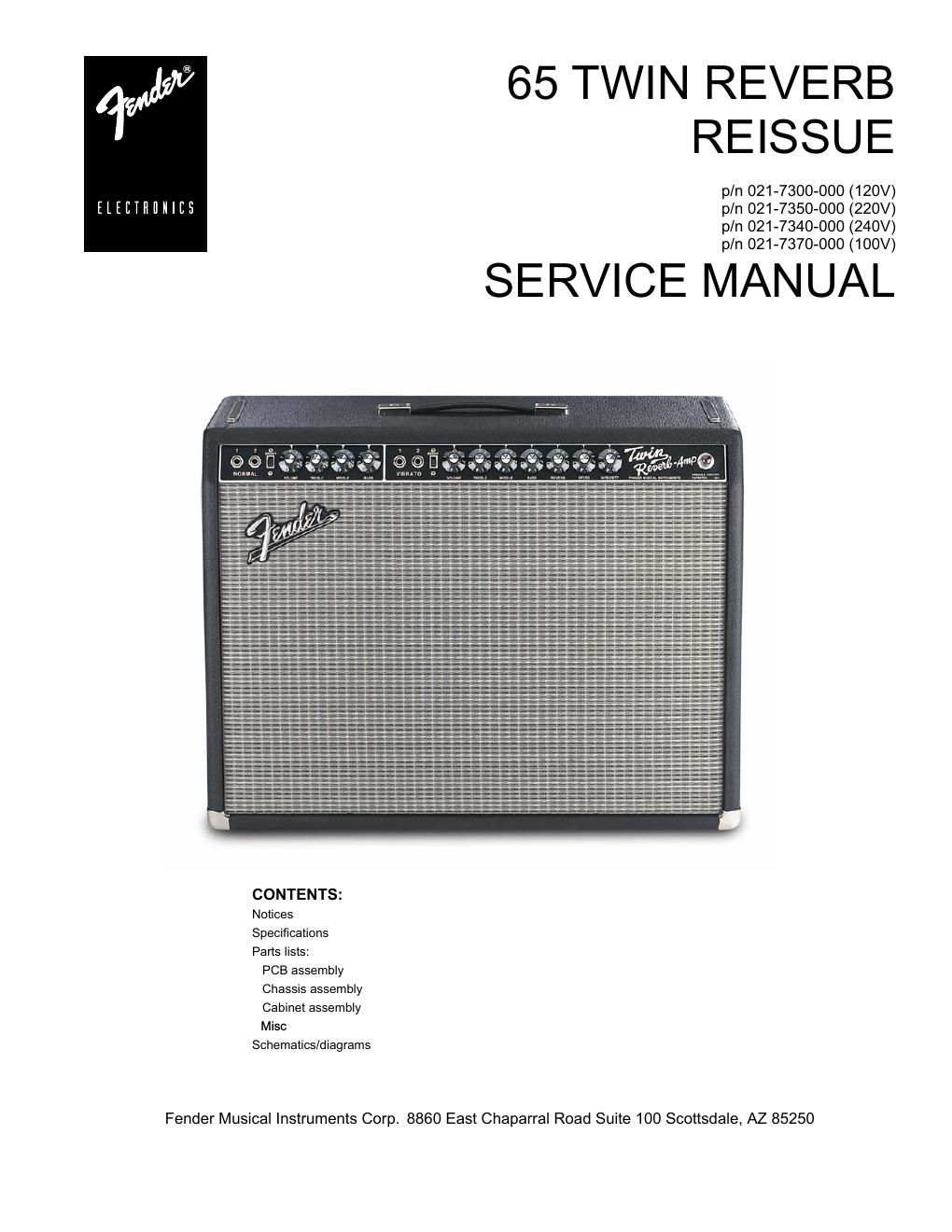

65 TWIN REVERB REISSUE (This is the model name for warranty claims) SERVICE MANUAL MARCH 1991 IMPORTANT NOTICE: The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments Corp. It is disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It may not be disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to change without notice. Only Fender specified part numbers are to be used for warranty repair service. It is recommended they also be used for post-warranty maintenance and repair. Parts marked with an asterisk ( *) indicate the required use of that specific part. This is necessary for RELIABILITY and SAFETY requirements. DO NOT USE A SUBSTITUTE! A coded naming convention is used in the description of certain parts. The codes and what they mean are as follows: CAPACITOR CODES HARDWARE CODES ____ CAP AE = Aluminum Electrolytic BLX = Black Oxide CAP CA = Ceramic Axial CR = Chrome Plated CAP CD = Ceramic Disk HWH = Hex Washer Head CAP MPF = Metalized Polyester Film M = Machine Screw CAP MY = Mylar NI = Nickel Plated CAP PFF = Polyester Film/Foil OHP = Oval Head Phillips PB = Particle Board RESISTOR CODES PHP = Pan Head Phillips PHPS = Pan Head Phillips Sems RES CC = Carbon Comp SMA = Sheet Metal "A" Point RES CF = Carbon Film SMB = Sheet Metal "B" Point RES FP = Flame Proof SS = Stainless Steel RES MF = Metal Film TF = Thread Forming RES WW = Wire Wound ZI = Zinc Plated P5. The red/yellow wire goes to P4.
Page 2
65 TWIN REVERB REISSUE PARTS LIST PRINTED CIRCUIT BOARD ASSEMBLY QTY PART # DESCRIPTION REFERENCE DESIGNATION 1 037628 PRINTED CIRCUIT BOARD PC1 (BLANK) 1 037629 PCB ASSEMBLY (120V) PCB1 (STUFFED) 1 037630 PCB ASSEMBLY (220/240V) PCB1 (STUFFED) 1 037631 PCB ASSEMBLY (100V) PCB1(STUFFED) 3 037805 CABLE RIBBON 6CKT 2-1/4" 1 018764 CAP 125VAC .01uF +0 C29 (120V DOMESTIC) 2 013638 CAPAE 285V 220uF 20% C30 C31 3 024819 CAPAE 500V 22uF 20% C32 C33 C34 1 020883 CAPCD 1KV 10pF 10% C17 2 020925 CAPCD 1KV 120pF 10% C5 C10 1 007029 CAPCD 1KV 220pF 10% C38 2 020917 CAPCD 1KV 250pF 10% C2 C7 1 020842 CAPCD 1KV 500pF 10% C13 1 017620 CAPCD 1KV 1500pF 10% C39 7 028465 CAPRE 25V 22uF 20% C1 C6 C11 C14 C15 C27 C28 1 036954 CAPRE 63V 22uF 20% C36 1 031069 CAPRE 100V 10uF 20% C37 1 031040 CAPRE 100V 100uF 20% C35 1 024853 CAPRF 250V .1uF 10% C21 1 037666 CAPRF 400V .001uF 10% C20 2 024823 CAPRF 400V .01uF 10% C25 C26 2 024833 CAPRF 400V .022uF 10% C12 C24 3 024845 CAPRF 400V .047uF 10% C4 C9 C18 3 024854 CAPRF 400V .1uF 10% C3 C8 C19 1 037040 CAPRF 400V .0033 10% C16 1 024835 CAPRF 600V .022uF 10% C40 2 024855 CAPRF 630V .1uF 10% C22 C23 2 037596 CTRL, 1M, 30A R10 R21 1 037601 CTRL, 3M, 30C R56 1 017502 CTRL, 10K, B R71 2 037598 CTRL, 10K, 10A R9 R20 1 037602 CTRL, 50K, 30C R64 1 037600 CTRL, 100K, B R29 2 037599 CTRL, 250K, 10A R8 R19 2 037597 CTRL, 250K, 30A R7 R18 1 064089 DIODE,1N4003 200PRV, 1AMP CR5 4 026730 DIODE, 800PRV, 1AMP CR1 CR2 CR3 CR4 15 026000 FASTON TAB, .187 CP17 THRU CP31 16 025802 FASTON TAB, .250 CP1 THRU CP16 6 020775 FUSE CLIP 5MM 220V/240V XF2 XF3 XF4 1 013109 FUSE 250mAT 250V 5MM XF2(220V/240V) 1 013115 FUSE 2AT 250V 5MM XF3 (220V/240V) 1 013684 FUSE 8AT 250V 5MM XF4 (220V/240V) 3 027413 HEADER,.1" 6 CIRCUIT P1 P2 P3 4 037117 JACK,PHONE,MONO RA J1 J2 J3 J4 (INPUTS) 1 025933 JACK,RCA,DUAL J8 (REVERB PAN CONN.)
