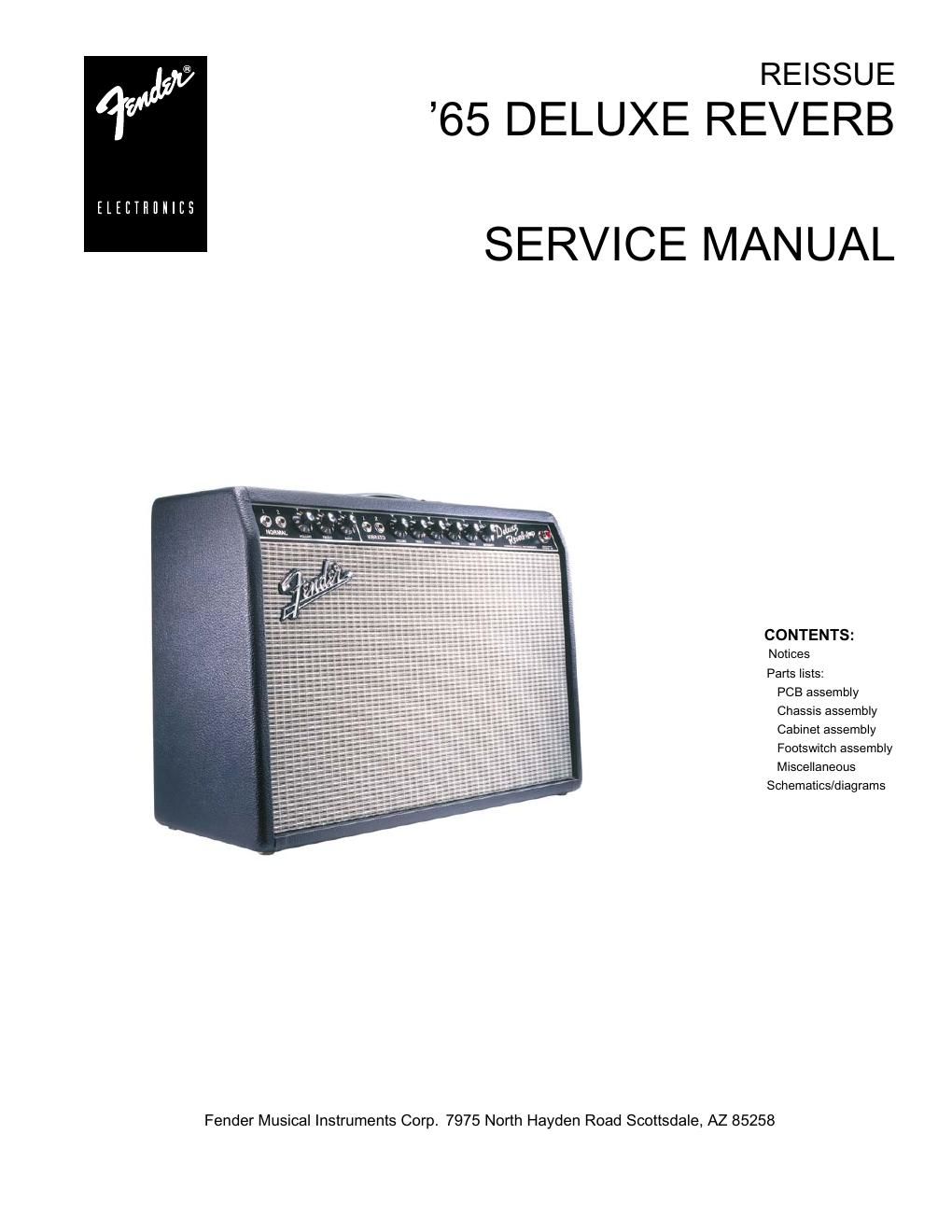

Page 1
Reissue 65 Deluxe Reverb (This is the model name for warranty claims) SERVICE MANUAL TYPE: PR 239 DECEMBER 1993 REV A IMPORTANT NOTICE: The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments Corp. It is disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It is not to be disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair. Parts marked with an asterisk ( *) indicate the required use of that specific part. This is necessary for RELIABILITY and SAFETY requirements. DO NOT USE A SUBSTITUTE! A coded naming convention is used in the description of certain parts. The codes and what they mean are as follows: CAPACITOR CODES HARDWARE CODES CAP AE = Aluminum Electrolytic BLX = Black Oxide CAP CA = Ceramic Axial CR = Chrome Plated CAP CD = Ceramic Disk HWH = Hex Washer Head CAP MPF = Metalized Polyester Film M = Machine Screw CAP MY = Mylar NI = Nickel Plated CAP PFF = Polyester Film/Foil OHP = Oval Head Phillips PB = Particle Board RESISTOR CODES PHP = Pan Head Phillips PHPS = Pan Head Phillips Sems RES CC = Carbon Comp SMA = Sheet Metal "A" Point RES CF = Carbon Film SMB = Sheet Metal "B" Point RES FP = Flame Proof SS = Stainless Steel RES MF = Metal Film TF = Thread Forming RES WW = Wire Wound ZI = Zinc Plated
Page 2
Reissue 65 Deluxe Reverb PARTS LIST PRINTED CIRCUIT BOARD ASSEMBLY QTY PART # DESCRIPTION REFERENCE DESIGNATION 1 041289 PCB ASSY 65 DELUXE REVERB 120V (STUFFED) 3 037805 CABLE RIBBON 6 CKT 2-1/4 P21,22,23 1 038691 CAP AE AX 4.7uF 50V 20% C19 7 009512 CAP AE AX 22uF 25V 20% C1,6,11,15,16,23,24 3 024819 CAP AE AX 22uF 500V 20% C33,34,35 1 041589 CAP AE AX 47uF 500V 20% C32 1 036954 CAP AE RDL 22uF 63V 20% C29 1 031040 CAP AE RDL 100uF 100V 20% C36 1 041705 CAP AE RDL 220uF 100V 20% C31 1 020883 CAP CD 10PF 1000V 10% C13 1 020909 CAP CD 47PF 1000V 10% C10 2 020917 CAP CD 250PF 1000V 10% C2,7 1 020842 CAP CD 500PF 1000V 10% C14 2 024823 CAP MPF RDL .01uF 400V 10% C20,21 2 024833 CAP MPF RDL .022uF 400V 10% C12,22 3 024845 CAP MPF RDL .047uF 400V 10% C4,5,9 1 024853 CPA MPF RDL .1uF 250V 10% C26 3 024854 CAP MPF RDL .1uF 400V 10% C3,8,18 2 024855 CAP MPF RDL .1uF 630V 10% C27,28 1 037040 CAP PFF .0033uF 400V 10% C17 1 037666 CAP PFF .001uF 400V 10% C25 2 037596 CONTROL SNAPIN 1 MEG 30A J TAPER R10,22 2 037597 CONTROL SNAPIN 250K 30A J TAPER R7,19 2 037599 CONTROL SNAPIN 250K 10A AUDIO R8,20 1 037600 CONTROL SNAPIN 100K B R31 1 037601 CONTROL SNAPIN 3 MEG 10C AUDIO R42 1 037602 CONTROL SNAPIN 50K 30C REV AUDIO R48 1 064089 DIODE 1N4003 200PRV 1 AMP CR1 23 026000 FSTN TAB MALE PCB MT .187X.032 CP1-23 3 027413 HDR .1CTR 6 CKT SQ PIN PX1A,22A,23A 4 037117 JACK PCB MONO CLOSED CKT J1-4 1 025933 JACK PHONO DUAL PC MTG J5 7 020888 JUMPER WIRE 22GA .5X.175 W1-7 1 037836 OPTOISOLATOR ASSY 65 TWIN OP1 1 041288 PCB FAB 65 DELUXE REVERB (RAW BOARD) 2 031901 PIN MALE PCB .093 SP1,2 1 024947 RES CF 1/4W 5% 47Ω R53 1 024961 RES CF 1/4W 5% 470Ω R51 3 024964 RES CF 1/4W 5% 820Ω R24,30,64 4 024969 RES CF 1/4W 5% 1.5K R5,17,60,61 1 024972 RES CF 1/4W 5% 2.7K R44 2 024979 RES CF 1/4W 5% 6.8K R9,21 1 024981 RES CF 1/4W 5% 10K R36 4 024995 RES CF 1/4W 5% 68K R1,2,13,14 3 024997 RES CF 1/4W 5% 100K R6,18,41 6 025059 RES CF 1/4W 5% 220K R12,28,33,35,56,57 1 025063 RES CF 1/4W 5% 390K R37 1 025065 RES CF 1/4W 5% 470K R32 7 025069 RES CF 1/4W 5% 1M R3,15,26,39,40,49,52 1 025075 RES CF 1/4W 5% 2.2M R38 1 025084 RES CF 1/4W 5% 10M R45 2 026368 RES CF 1/2W 5% 100Ω R70,71 1 025113 RES CF 1/2W 5% 10K R59 1 025832 RES CF 1/2W 5% 22K R50 9 025116 RES CF 1/2W 5% 100K R4,11,16,23,29,34,46,4 1 025117 RES CF 1/2W 5% 220K R43 1 037619 RES CF 1W 5% 82K R54 1 041706 RES CF 1W 5% 470K R66 1 027347 RES FILM 1W 5% 2.2K R27 1 027353 RES FILM 1W 5% 100K R55 1027749* RES MF FUSE 1/4W 5% 22Ω R69
