Expert fd 710 stereo cassette deck

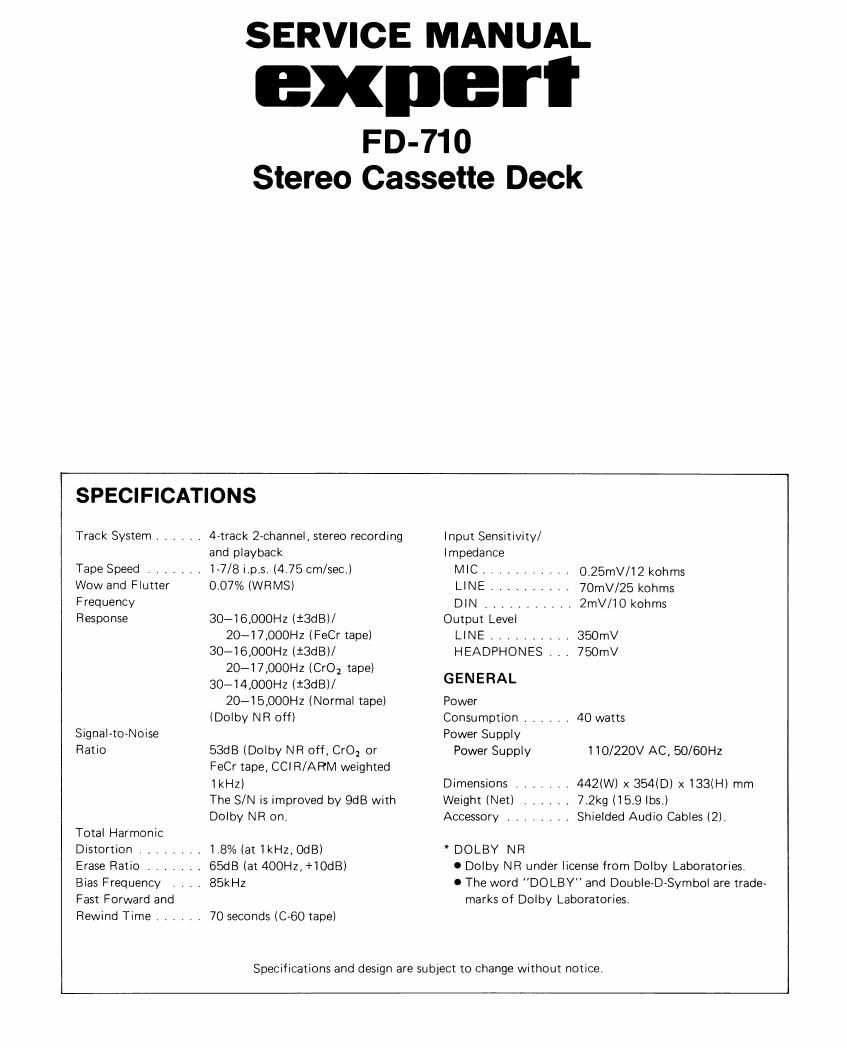

This is the 13 pages manual for expert fd 710 stereo cassette deck.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from expert fd 710 stereo cassette deck (Ocr-read)
Page 2
ALIGNMENT PROCEDURE
1) Head Azimuth
PLAV AMP. DOLEY AMP. LINE OUT V.M
T
ADJUST
Controls to be positioned Test Tape Procedure
Dolby NR : OFF MTT-l14 1) Adjust the head screw in order to obtain max.
Equalizer : 1205 V.M. indication.
Function : PLAY
Rec. Volume : Max.
Balance Volume : Center
2) VU Meter
DOLBY AMP. METER AMP. ADJUST VU METER
LINE IN
AFN-W W Z )ADUST FOR +3dB
SIGNAL400 2 5VR401 .
(SVR402)
-© LINE OUT
TPBOS
(TPBOG)
V.M
Controls to be positioned Test Tape Procedure
Dolby NR : OFF Blank 1) Apply 400Hz, 250mV signal at the LINE IN
Equalizer : 120 5 Normal terminal,
Function : REC. 2) Adjust REC. and BALANCE volume to have
580mV V.M. indication.
3) Set blank tape, then press the REC. button.
4) Set the VU meter indication to DOLBY LEVEL
(double D mark position) with SVR401,402.
3) Play Back Level
SVR601
PLAY AMP. (SVR602) DOLBY AMP. METER AMP. vu METER
l TP8
05
A
DJUST lTP806)
V.M SBOmV
Controls to be positioned Test Tape Procedure
Dolby NR : OFF MTT-150 1) Set the V.M. indication to 580mV with SVR601)
Equalizer : 120 s 602 alignment.
Function : PLAY
