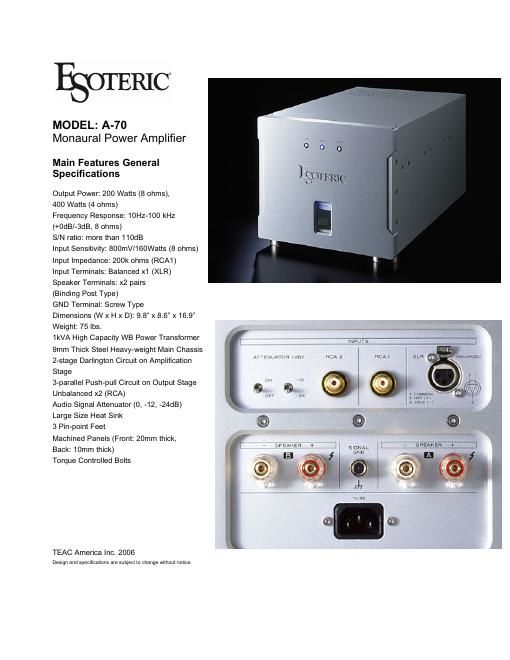

MODEL: A-70
Monaural Power Amplifier
Main Features General
Specifications
Output Power: 200 Watts (8 ohms),
400 Watts (4 ohms)
Frequency Response: 10Hz-100 kHz
(+OdB/-3dB, 8 ohms)
SIN ratio: more than 110dB
Input Sensitivity: 800mV/160Watts (8 ohms)
Input Impedance: 200k ohms (RCA1)
Input Terminals: Balanced x1 (XLR)
Speaker Terminals: x2 pairs
(Binding Post Type)
GND Terminal: Screw Type
Dimensions (W x H x D): 9.8" x 8.6"x16.9" ,
Weight: 75 lbs . . A- _ ,_.-
1kVA High Capacity WB Power Transformer ' new: ---: ~ '
9mm Thick Steel Heavy-weight Main Chassis A I
2-stage Darlington Circuit on Amplification
. n
Stage a i
3-parallel Push-pull Circuit on Output Stage 9 " a ' a. B
Unbalanced x2 (RCA) ' ., :4 fist-7?:
:
Audio Signal Attenuator (o, -12, ~24dB) " °""
Large Size Heat Sink
3 Pin-point Feet © 0 o
Machined Panels (Front: 20mm thick,
Back: 10mm thick)
Torque Controlled Bolts
I" a ii A 2 ncnv XL mums:
um... i 5mm ,, - gunman + I
GND
TEAC America Inc. 2006
Design and specifications are subject to change witncut notice.
