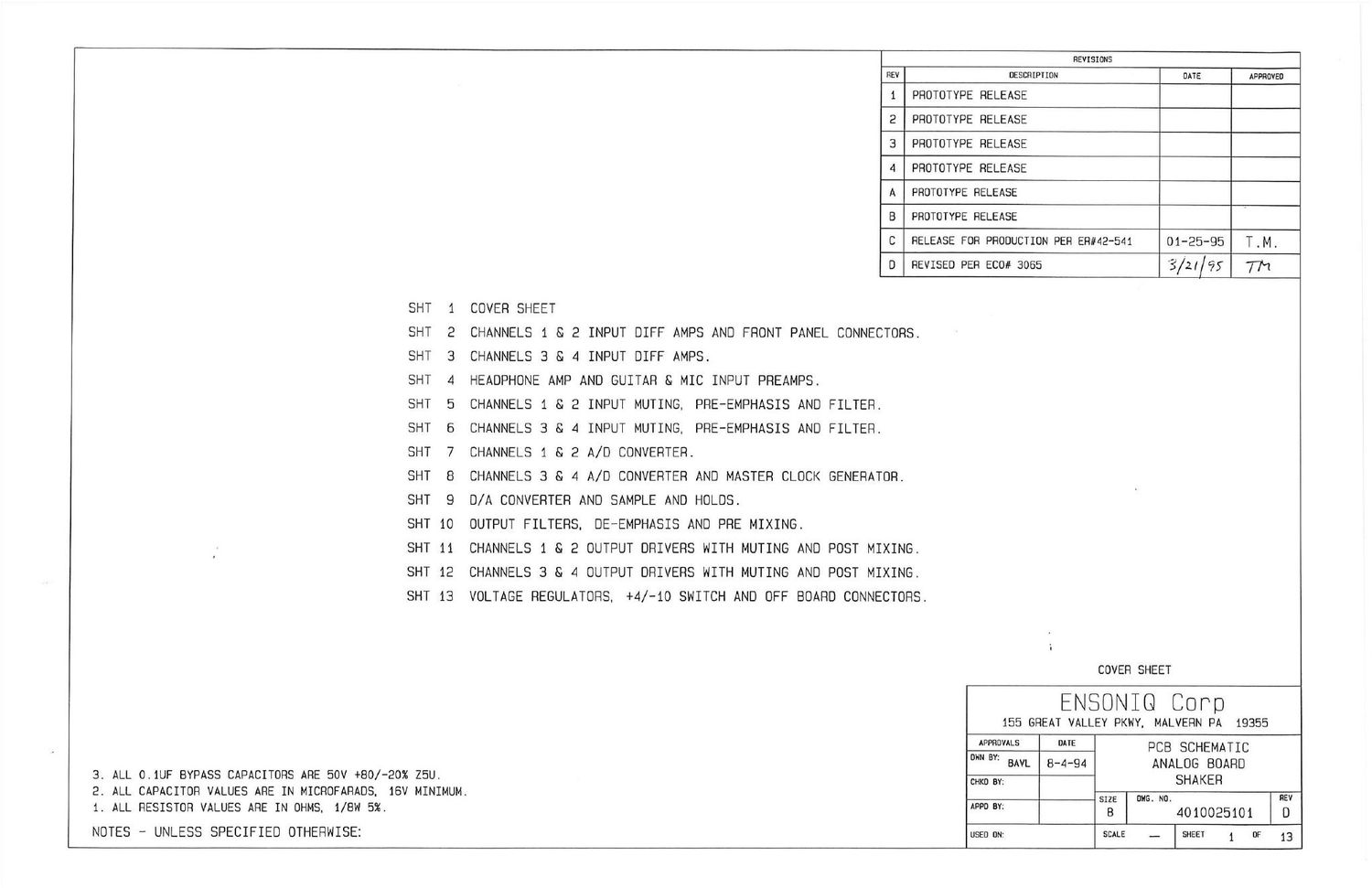

Page 1
REVISIONS
REV
OESCRIPT ION
DATE APPROVED
1 PROTOTYPE RELEASE
PROTOTYPE RELEASE
PROTOTYPE RELEASE
PROTOTYPE RELEASE
PROTOTYPE RELEASE
PROTOTYPE RELEASE
RELEASE FOR PRODUCTION PER ER#42-541
01-25-95 T.M.
REVISED PER ECO# 3065
3/21/9; 77H
2
3
4
A
B
C
O
SHT 1 COVER SHEET
SHT 2 CHANNELS 1 8 2 INPUT DIFF AMPS AND FRONT PANEL CONNECTORS.
SHT 3 CHANNELS 3 8 4 INPUT DIFF AMPS.
SHT 4 HEADPHONE AMP AND GUITAR 8 MIC INPUT PREAMPS.
SHT 5 CHANNELS 1 8 2 INPUT MUTING. PRE-EMPHASIS AND FILTER.
SHT 6 CHANNELS 3 8 4 INPUT MUTING. PRE-EMPHASIS AND FILTER.
SHT 7 CHANNELS 1 8 2 A/D CONVERTER.
SHT 8 CHANNELS 3 8 4 A/D CONVERTER AND MASTER CLOCK GENERATOR.
SHT 9 O/A CONVERTER AND SAMPLE AND HOLDS.
SHT 10 OUTPUT FILTERS, DE-EMPHASIS AND PRE MIXING.
SHT 11 CHANNELS 1 8 2 OUTPUT DRIVERS WITH MUTING AND POST MIXING.
SHT 12 CHANNELS 3 8 4 OUTPUT DRIVERS WITH MUTING AND POST MIXING.
SHT 13 VOLTAGE REGULATORS. +4/-10 SWITCH AND OFF BOARD CONNECTORS.
3. ALL 0.1UF BYPASS CAPACITORS ARE 50V +BO/-20% Z5U.
2. ALL CAPACITOR VALUES ARE IN MICROFARADS. 16V MINIMUM.
1. ALL RESISTOR VALUES ARE IN OHMS. 1/8W 5%.
NOTES - UNLESS SPECIFIED OTHERWISE
COVER SHEET
155 GREAT VALLEY PKWY. MALVERN PA
ENSONIO COPD
19355
APPROVALS
DATE
OWN BY:
PCB SCHEMATIC
BAW. 8-4-94 ANALOG BOARD
cwuan SHAKER
_ SIZE nus. N0. REV
"m8 B 4010025101 O
useo nu: SCALE _ SHEET 1 OF 13
