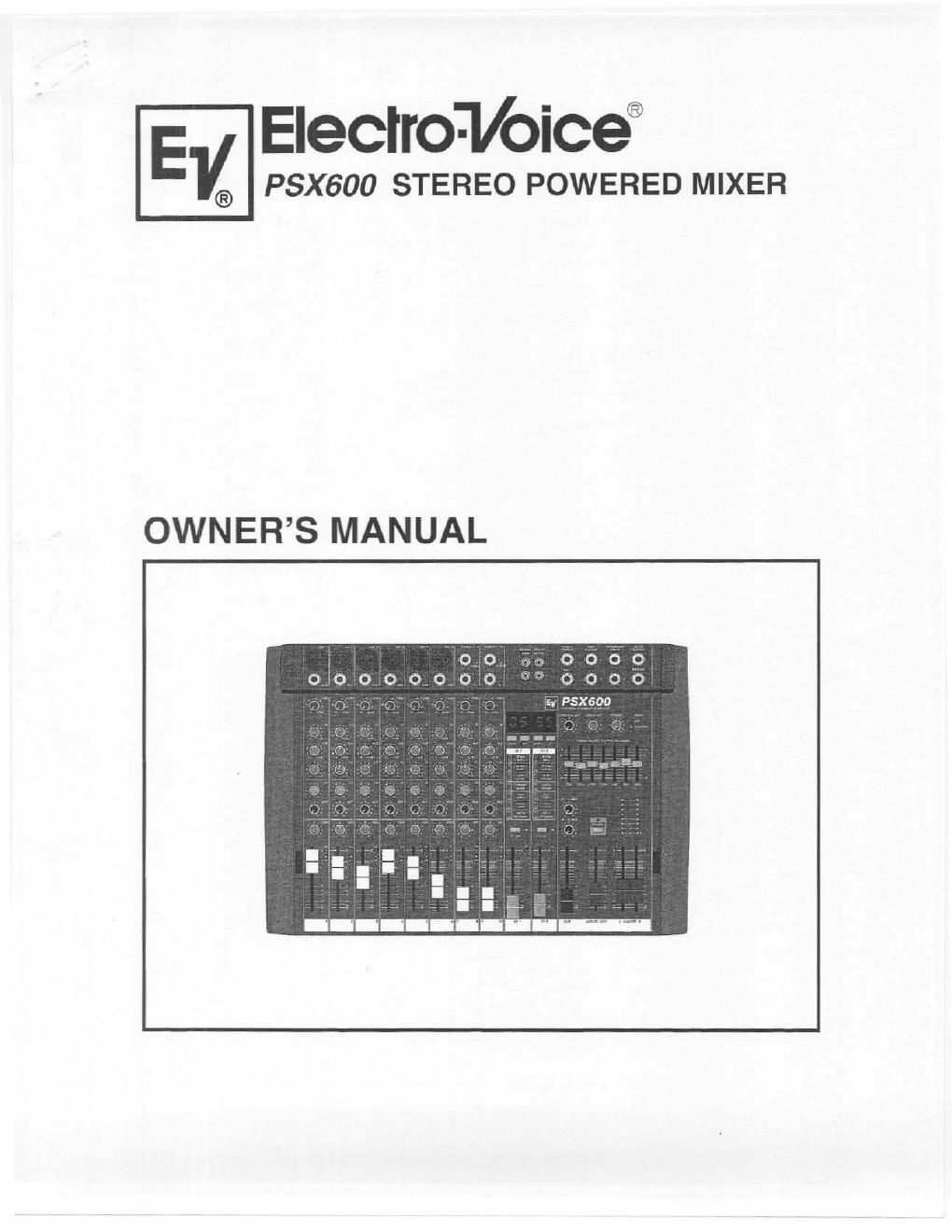

Page 1

EIecIroTl/mce

PSX600 STEREO POWERED MIXER

OWNERS MANUAL

Page 2

INIPORT ANT SAFETY INSTRUCTIONS

The lightning flash with arrowheadsymbol. within an equilateral

CAUTIW u'iangleisintendedtoaletttheuserwthe presenceofuninsulated

5 5 ELECTII': m ! "dangerous voltage" within the prodncts enclosure that may be

DO not WEN of suflicient magnitude to constitute a risk of elecu-ic shock to
persons.

WARNING: 10 50005 n: HS< a: FIE or ELECTRC 9m.
panoramas: ms mums tomorrosrtm.

AVIS: m: n: cum ELECYIIIE. r: was cum

The exclamation point within an equilateral triangle is intended
to alert the met to the practice of important operating and

39$"?PN7"

9°

maintanoe (servicing) instructions in the literature accompanying
the appliance.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with a damp cloth.

Do not block any of the ventilation openings.

Install in accordance with the manufactures instructions.

Do not install near any heat sources such as radiators. heat registers, stoves. or other apparatus that produce heat.
Only use anachmentslacmsories specified by the manufacturer.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way. such as power-supply cord or plug is damaged. liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has

been dropped.

For US and CANADA only:

Do not defeat the safety purpose of the grounding-type plug. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet. consult an electrican for replacement
of the obsolete outlet.

IMPORTANT SERVICE INSTRUCTIONS

CAUTION: Thm servicing instructions are for use by qualified personnel only. To reduce the risk of electric

5"

8.

shock, do not perform any servicing other than that contained in the Operating
Instructions unless you are qualified to do so. Refer all servicing to qualified service
personnel.

Security regulations as stated in the EN 60065 (VDE 0860 / EC 65) and the CSA E65 - 94 have to be obeyed when

servicing the appliance.

Use of a mains separator transformer is mandatory during maintenance while the appliance is opened. nwds to be

operated and is connected to the mains

Switch off the power before retrofitting any extensions. changing the mains voltage or the output voltage.

The minimum distance between pans carrying mains voltage and any accessible metal piece (metal enclosure).

respectively between the mains poles has to be 3 mm and nwds to be minded at all times,

The minimum distance between parts carrying mains voltage and any switches or breakers that are not connected

to the mains (secondary pans) has to be 6 mm and needs to be minded at all times.

Replacing special components that are marked in the circuit diagram using the security symbol (Note) is only permissible when using
original parts.

Altering the circuitry without prior consent or advice is not legitimate.

Any work security regulations that are applicable at the location where the appliance is being serviced have to be strictly obeyed
This applies also to any regulations about the work place itself.

All instructions concerning the handling of MOS - circuits have to be observed.

Note: A SAFETY COMPONENT (HAS TO BE REPLACED WITH ORIGINAL PART ONLY)
