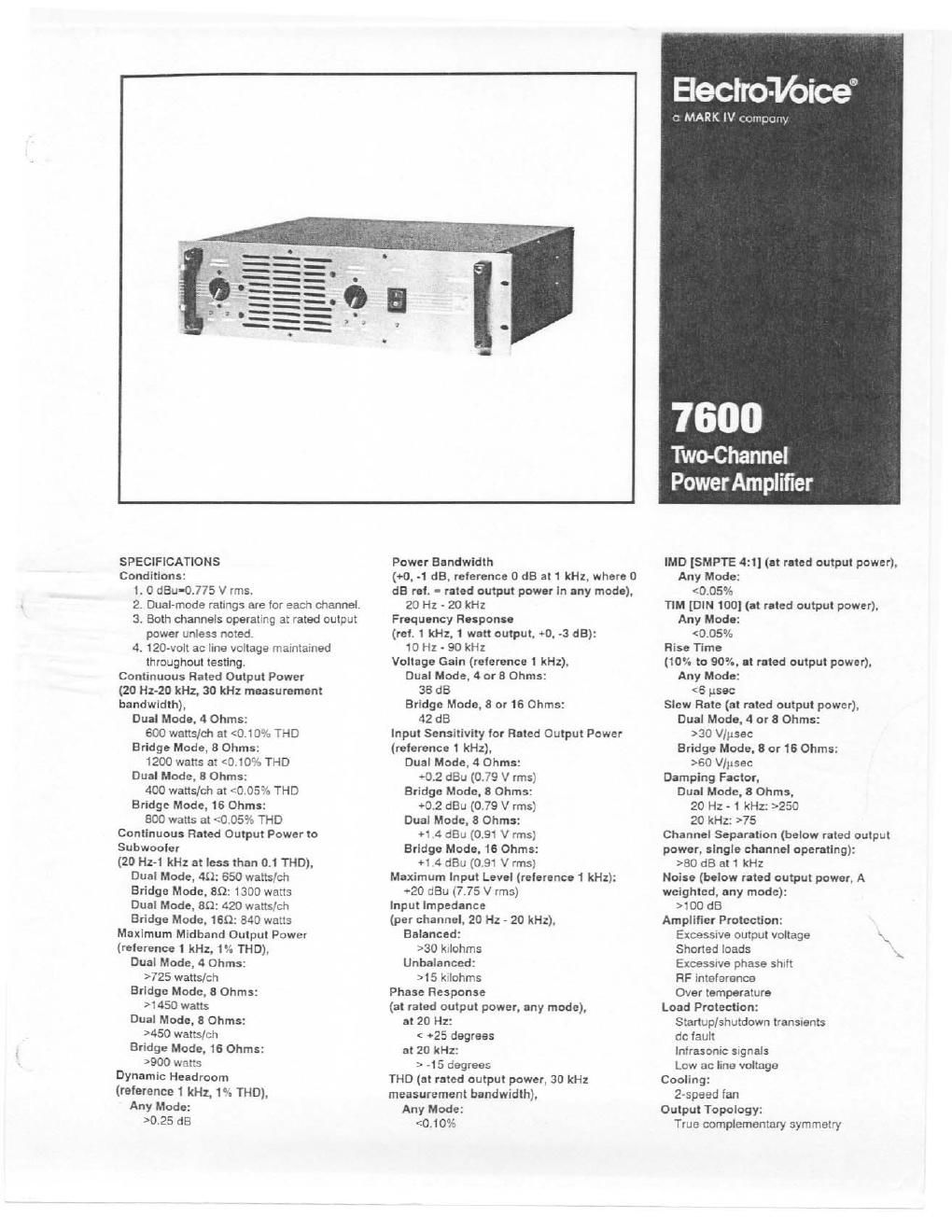

Electro voice 7600 brochure

Page 1

.
_-
_-_
_ '
'_-'
._-_
-_
-_-e
-
-_"~
-
. *

SPECIFICATIONS
Conditions:
1.0 dBu-0J75 V rms,
2. Dual-mode ratings are for each channel.
3. Both channels operating at rated output
power unless noted:
4. 120-volt ac line voltage maintained
throughout tasting.
Continuous Rated Output Power
(20 Hz-ZO kHz, 30 kHz measurement
bandwidth),
Dual Mode, 4 Ohms:
600 watts/ch at «110% THD
Bridge Mode, 8 Ohms:
1200 watts at 43.10% THD
Dual Mode, 8 Ohms
400 watts/ch at <0.05rl. THD
Bridge Mode. 16 Ohms:

800 watts at <0 05,": THD
Continuous Plated Output Power to
Subwooler
(20 Hz-1 kHz at less than 0.1 THD).

Dual Mode, 40: 650 watts/ch
Bridge Mode. an: 1300 watts
Dual Mode, an: 420 watts/ch
Bridge Mode, 16!): 840 watts
Maximum Midband Output Power
(relerence 1 kHz, 1". THD),
Dual Mode, 4 Ohms:
>725 watts/ch
Bridge Mode. 8 Ohms:
>1450 watts
Dual Mode, 8 Ohms:
>450 watts/ch
Bridge Mode, 16 Ohms:

>900 watts
Dynamic Headroom
(relerence 1 kHz, 1"; THD).

Any Mode:
>025 dB

Power Bandwidth
(+0, -1 dB, reterence 0 dB at 1 kHz, where 0
dB rel. - rated output power In any mode),
20 Hz - 20 kHz
Frequency Response
(rel. 1 kHz. 1 watt output. 0. 3 dB):
10 Hz - 90 kHz
Voltage Gain (reterence 1 kHz).
Dual Mode. 4 or 8 Ohms:
36 dB
Bridge Mode, 8 or 16 Ohms:
42 dB
Input Sensitivity tor Rated Output Power
(relerence 1 kHz),
Dual Mode, 4 Ohms:
-02 dBu (0.79 V rms]
Bridge Mode. 8 Ohms:
v0.2 dBu (0 79 V rms)
Dual Mode, 8 Ohms:
~14 dBu (0 91V rms)
Bridge Mode. 16 Ohms:
*1 4 dBu (O 91 V rms)
Maximum Input Level (reterence1 kHz):
«20 dBu (775 v rms)
Input Impedance
(per channel, 20 Hz - 20 kHz).
Balanced:
>30 kliohms
Unbalanced:
>15 kilohms
Phase Response
(at rated output power, any mode),
at 20 Hz:
< *25 degrees
at 20 kHz:
> -15 degrees
THD (at rated output power, 30 kHl
measurement bandwidth),
Any Mode:
<0 10%

Ebdmflbbd

0 MARK IV ccmoany

7600

Two-Channel
PowerAmplifier

iMD [SMPTE 4:1] (It rated output power).
Any Mode:
(0,05%
TIM [DIN 100] (at rated output power).
Any Mode:
<0.05%
Rise T'Ime
(10% to 90%, at rated output power),
Any Mode:
<6 psec
Slew Rate (at rated output power).
Dual Mode, 4 or 8 Ohms:
>30 Vlusac
Bridge Mode, 8 or 16 Ohms:
>60 lesac
Damping Factor,
Dual Mode. 8 Ohms,
20 Hz - 1 kHz: >250
20 kHz: >75
Channel Separation (below rated output
power, single channel operating):
>50 dB at 1 kHz
Noise (below rated output power, A
weighted. any mode):
>100 dB
Amplifier Protection:
Excessive output voltage
Shonad loads
Excesslve phase shift
RF intolerance
Over temperature
Load Protection:
Startup/shutdown transients
dc lault
lnIrasonic signals
Low ac line voltage
Cooling:
[speed tan
Output Topology:
True complementary symmetry

Page 2

Output TYPO.
Dual Mode: Unbalanced. each channel
Bridge Mode: Balanced
Output Devices (32. both channels),
Pd_: 250 watts
to: 16 A dc
Vceo: 250 V dc
11__: 20cm: (392°F)
Controls and Switchea.
Input Level Controls (two)-Rear:
Continuously variable
Dual/bridged mode awltch-raar
Power awltchdront
Front-Panel Indicators:
Power LED
Clip LED's (two)
Protea LED's (two)
Connections.
Input:
Female XLFi-type connectors (Mo)
Octal accessory sockets (two)
Output:

Power:

Sterminal IEC ac line receptacle
Power Requirements:

120 V ac. 50/60 Hz. 1800 watts

(configurable to 240 V ac)

100 V as. 50/60 Hz model available
Power Consumption/Heat Produced (both
channels oparoting dual mode with 1 kHz
Input signal at stated output power Into 4
ohms. or bridge mode Into 8 ohms).

/a Power:

1300 watts/4.465 kBTUlhr

Rated Powen

2520 watts/4.488 kBTU/hr

Maximum Midband Power:

2700 watts/4.216 kBTU/hr
Operating Temperature Range:

Up to 60 degrees c

(140 degrees F) ambient
Dimensions.

Height: 13.3 cm (5.25 ln.)

Width: 48.3 an (19 in.)

Depth: 40.8 cm (15.751n.)

Color:

Gray front panel with black chassis
Enclosure:

Flack mount chassis

16-GA steel

3Ira-inch 6061 -T6 aluminum front panel
Shipping Weight:

25.1 kg (62 lb)

Net Weight:

23.6 kg (52 lb)
Supplied Itema:

One owners manual

One detachable power cord

Four 'U' jumper plugs lor octal sockets
Optional Accessories:

The octal sockets permit a variety of plug-in

awessorias to be used with the amplifier.

Modules Include:

APX two 24 dB/octave. lreq. selectable
50 Hz - 10 kHz. 24 freq. available
APX-Z crossover module. same as APX
with separate high-pass output tor
other amplifiers
APX-ZOO

INSTALLATION
Unpacking
Upon receipt of the unit. inspect the shipping
carton for possible damage during transit. ll
damage ls found, notify the transportation
company Immediately. Should damage ocwr
during shipping, it is the responsibility at the
consignee to initiate a claim with the carrier.
' CAUTION "'
No user serviceable parts inside. Hazard-
oua voltage and currents may be encoun-
tered wlthln the chassis. The service
Information contained within thla docu~
merit Ie Ior use only by Eloctro-Volce, Inc..
authorized warranty stations and qualified
service personnel. To avoid electric shock.
do not perform any servicing unless you
are qualified to do so.

DESCRIPHON
The 7600 is a dual-channel power amplifier
lor prolesslonal sound relnlorcement.

Each channel delivers more than 400 watts oi
continuous average power into 8 ohms or 600
watts into 4 ohms over lull audio frequency
range. In the bridge mode. the amplifier can
deliver more than 1200 watts at less than
0.10% THD into 8 ohms.

Each channel is independently protected
against...

U Over temperature

- Excessive output voltage

0 Excessive phase shift

0 Radio-frequency lnterterence

0 shorted loads

The load is protected from surtup/shutdown
transient. inlrasonlc signals. low ac line
voltage. and dc. When a problem is detected.
an output relay automatically disconnects the
load from the channel and illuminates the
Protect LED located on the front panel.

The 7600 has electronically balanced inputs
and accessory sockets for plug-in translorm-
ers and electronic modules. The level controls
are rear mounted to avoid accidental
changes. The standard power translonner
permits operation at 120/240 V ac. 50/60 Hz.
A 100-V-ac. 50/60»Hz model is available. The
Electra-Voice 7600 power amplifier Is the
choice Ior serious prolessional installations
which demand the highest quality at high
power levels tor extended periods oI time.

AHCHITECTS' AND ENGINEERS'
SPECIFICATIONS

The power amplifier shall be a dual-channel
model ol solid-state design employing true
complementary-symmetry output circuitry and
capable 01 operating Irorn a 120/240 V ac. 50/
50 Hz ac line. 100 V ac. 50/60 Hz is available.
The amplifier shall contain sensing cirwltry to
provrde protection for the output transistors
against over temperature. excessive output
voltage. radio-trequency interlarence. shorted
loads. and excessive output phase shift. The
load shall be similarly protected against
inlrasonic signals. startuplshutdown tran-
sients. low ac line voltage. and dc.

Front panel controls shall include a power on/

off switch. and a 31 -position detenaed level

conuol Ior each channel. Front panel

Indicators shall Include an illuminated power

onlofl indicator. Individually laminated

clipping and protectionclrwlt-actlvation .
indicators for each channel. The amplifier

shall have rack handles on the front panel.

,F"\

Rear-mounted panel controls shall include a
two~position mode switch for selecting
between the dual monophonic mode or the
bridged monophonic mode. Input connections
for each channel shall Include a 3-pin female
XLR-typa connector and Irinch unbalanced
and THS connectors. The ampifier shall have
octet accessory sockets tor electronic
crossover and equalizer modules. The
amplifier shall have Neutrlk' Speakon and a
covered barrier-strip output connectors.

The power amplilier shall meet the following

pertorrnance criteria. Maximum Input voltage:

7.75 V rms. Input voltage for rated output

power Into 4 ohms: 0.79 Vrms. Rated output

power per channel: 600 watts into 4 ohms

from 20 Hz to 20 kHz at less than 0.10%

THD; 400 watts Into 8 ohms lrom 20 Hz to 20

kHz at less than 0.05% THD; 1200 watts Into

an B-ohm bridged load from 20 Hz to 20 kHz

at less than 0.10% THD with channel lit

driven. Voltage amplication in dual mode: 36

dB. Hum and noise: at least 100 dB (A

weighted) below rated output power.

Frequency response: 20 Hz to 20 kHz. 21 dB

at any output power up to rated output power.

Damping lactor: greater than 250 at any

frequency up to 1 kHz In dual mode with 8- ,'
ohm load. 1

Transient intermodulatlon distortion (DIN
100): less than 0.05 in dual mode into 3
ohms. lntermodulation distortion (SMPTE):
less than 0.05% In duel mode into 3 ohms.
Crosstalk: more than 80 dB below rated
output power. Operating temperature range:
up to 60 degrees C (140 degrees F) ambient.
Dimensions: 5.25'H x 19'W x 15.75'D. Net
weight: 52 pounds. Color: black. Enclosure:
rack mounted chassis: 186A steal bottom]
sides; /iu' 6061-T6 aluminum front panel.

The power amplifier shall be the EIectro-Vclce
7600.
