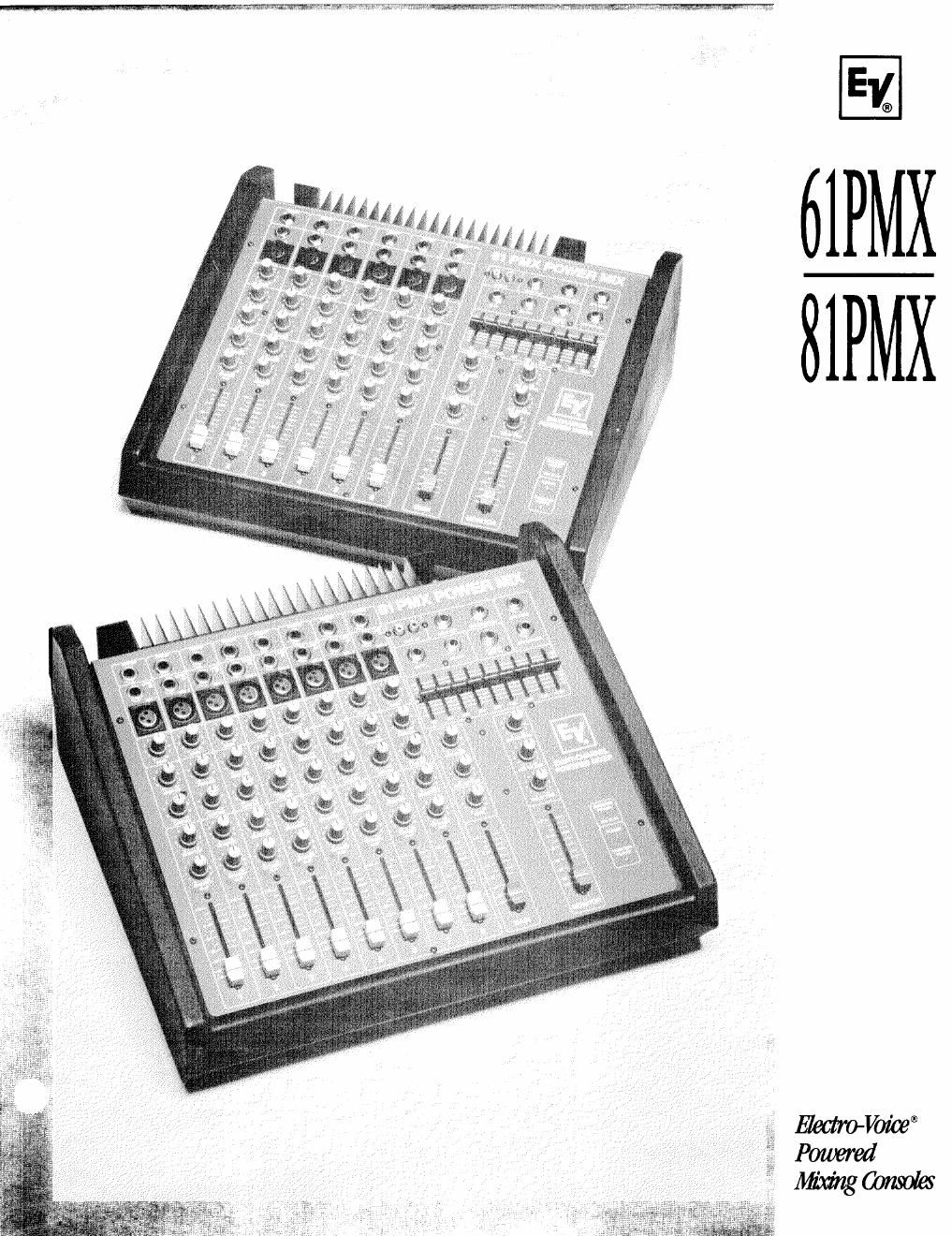

Electro-Voice 61PMX & 81PMX Powered Mixing Consoles

Designed to be your audio
workhorse, Electro- Voice
61 PMX (6-channel) and 8 1PMX
(8-channel) powered mixers offer
the flexibility, convenience and
special features necessary for a
variety of portable and fixed
applications.

SPECIFICATIONS
Amplifier Power Output:

Frequency Response,
Power Amplifier:
Mixer:

Total Harmonic Distortion,
Power Amplifier:

Mixer:

Noise (20-2o,ooo Hz with

1 SO-ohm impedance):
Input Channel Equalization:

Channel Inserts:
Microphone Inputs,

Type:

Maximum Input Level:
Input Impedance at l kHz:
Clip Indicator Threshold:
Line Inputs:

Maximum Input Level:
Input Impedance:

Tape Inputs:

Input Impedance:

Graphic Equalizer:

Center Frequencies:
Echo:

Maximum Power Indicator:
Dimensions (HWD):

Net Weight:

Power Requirements:
Phantom Power:

4-ohm load/200 watts
S-ohm load/125 watts

20 Iiz-ZO kHz :1: 0.5 dB
Microphone input to any output, EQ flat, gain controls
nominal, 20 Hz~20 kHz 1: 1 dB

<0.5% @ nwdmum ratedpower with Imitm load, 20Hz-20 kHz
<0.1 % @ maximum rated power with 8-ohm load, 1 kHz
<0.1% @ + 20 dBu, 20 IIz~20 ItIIz

- 126 dBu BIN-equivalent input noise, microphone input
1 12 dB low cut/boost centered at 90 Hz

:1: 12 dB high cut/boost centered at 10 kHz

'/4 -in. stereo phone plug, tip send, ring return

Balanced, pin-2 reference positive
+14 dBu (3.9 volts)

4,440 ohms

+ 15 dBu (at minimum gain)

High impedance, balanced, tip positive
+ 24 (In (12 volts)

30 kilohms

I-ligh impedance, RCA jack, unbalanced, tip positive

47 kilohms

9-band, Constant Range, 1' 12 dB cut/boost

50, 100, 200, 400, 800, 1,600, 3,150, 6,500, 12,500 Hz
Electronic, adjustable delay time

Lights when power amp input exceeds + l I dBu

17.4 cm x 45 cm x 59.6cm (6%){173/A "x15 /2 )

11.3 kg (25 lb)/12.2 kg (27 lb) 81PMX

100/120/220/240 V ac, 50/60 HZ, 260 W

40 volts
'PMPCVS carrying case available.

Special features include:

- 40-volt phantom power supply for
maximum performance from condenser
microphones.

. Digltal reverb/delay for more natural
ambience and control flexibility than
bucket-brigade devices, and no clatter
from spring reverbs.

o A beefed-up amplifier for improved
reliability and sound quality. The amp also
features a new mechanical design which
improves heat dissipation and withstands
abusive conditions with ease.

. Optimum tone control through the
9-band graphic EQ (with Constant RangeTM
filters) on output and 2-band E0 on input.

. Individual sends on each channel for
stage monitors and outboard signal
processors. Insert jacks allow use of
separate processors or effects on each
channel.

- Superior design with easy-access channel
inputs, insert jacks and a complete patch
bay on top panel.

The 61 PMX and 81 PMX offer power to
spare, with 200 watts into four ohms and
plenty of headroom. Constructed of
rotomolded polyethylene, they are typically
40 percent lighter than competitive mixers
as well as being more rugged to withstand
the punishment of constant travel. Insert
jacks allow the use of separate effects on
each channel, which feature both low and
high-impedance inputs. A gain control
allows you to achieve optimum signal-to-
noise ratio, and to level-match input sources.

Microphone inputs are designed to handle
the high output of EVs N/DYM®
microphones, as well as condensers,
without overload distortion. And distortion
can be carefully monitored via a clip LED for
input, EQ and overall levels. Our exclusive
PowerLockI circuit further prevents speaker
damage from distortion. Vocalists hear what

the audience hears, with a wet stage monitor mix provided by the reverb-to-monitor feature.

Backed by EVs three-year parts-and-labor warranty, as well as the best service support in the
business, the 61 PMX and 81 PMX clearly outdistanoe the competition in terms of value and performance.
