Electro harmonix small stone owner manual

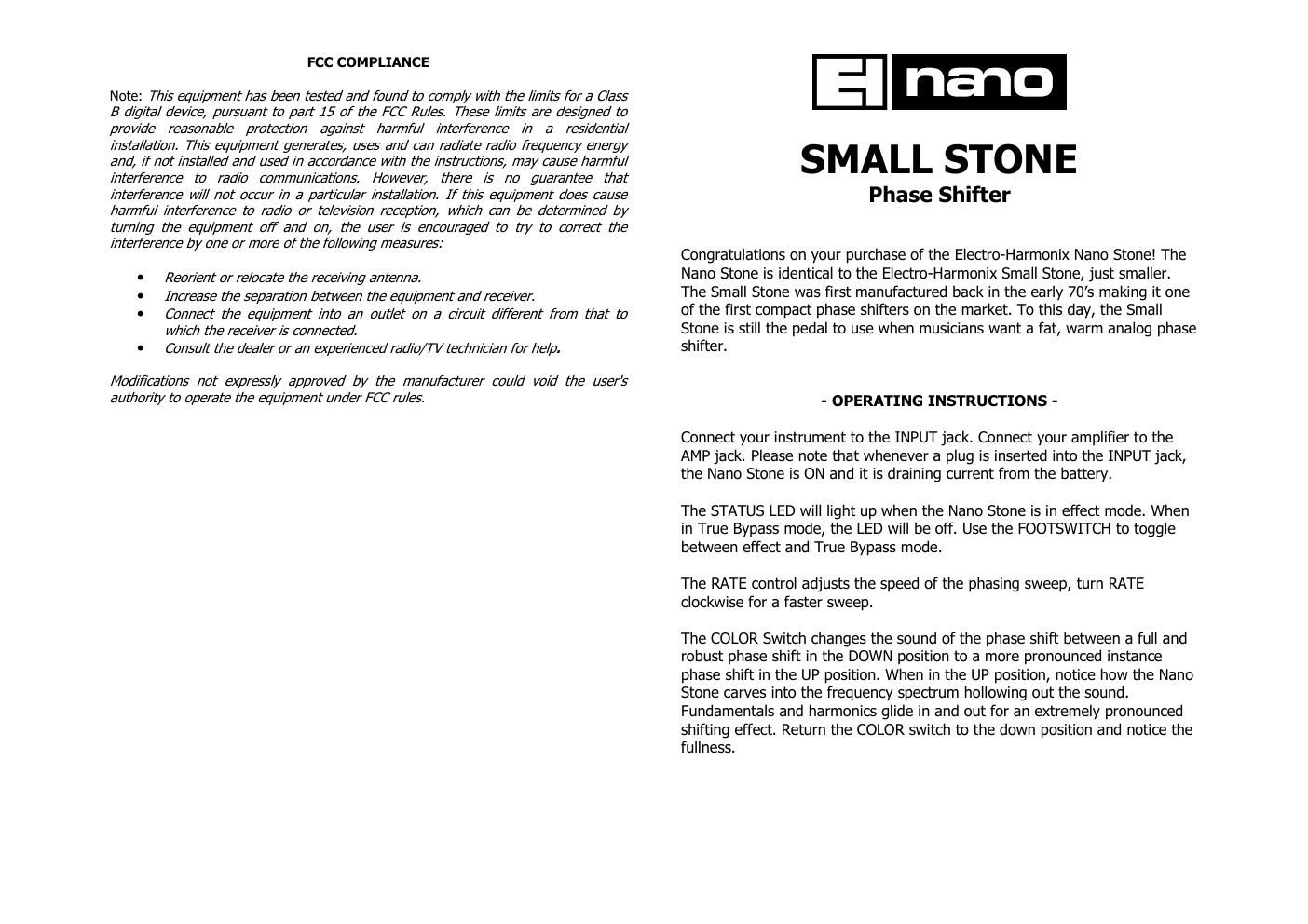

Page 1

- POWER - Power from the internal 9-volt battery is activated by plugging into the INPUT jack. The input cable should be removed when t he unit is not in use to avoid running down the battery. If a battery elimina tor is used, the Nano Stone will be powered up as long as a wall-wart is pl ugged into the wall. The barrel connector on the front of the Nano Stone i s for a 9-volt battery eliminator capable of delivering 100 mA of current. T he inner ring of the 9- volt battery eliminator must be negative, the outer ring positive. The units battery may be left in or taken out when the eliminator is in use. To change the 9-volt battery, you must remove the 4 sc rews on the bottom of the Nano Stone. Once the screws are removed, you can take off the bottom plate and change the battery. Please do not touch the circuit board while the bottom plate is off or you risk damaging a co mponent. The input impedance presented at the Input Jack is 100 k-ohms. The output impedance at the Output Jack is 15 k-ohms. - WARRANTY INFORMATION - Please register online at http://www.ehx.com/produc t-registration or complete and return the enclosed warranty card within 10 days of purchase. Electro-Harmonix will repair or replace, at its discretion, a product tha t fails to operate due to defects in materials or workmanship for a period of one year f rom date of purchase. This applies only to original purchasers who have bought their product from an authorized Electro-Harmonix retailer. Repaired or replaced uni ts will then be warranted for the unexpired portion of the original warranty term. If you should need to return your unit for service within the warranty period, please contact the appropriate office listed below. Custom ers outside the regions listed below, please contact EHX Customer Service for info rmation on warranty repairs at info@ehx.com or +1-718-937-8300. USA and Canadian c ustomers: please obtain a Return Authorization Number (RA#) from EHX Customer Service before returning your product. Include with your returned unit: a w ritten description of the problem as well as your name, address, telephone number, e- mail address, and RA#; and a copy of your receipt clearly showing the purchase d ate. United States & Canada EHX CUSTOMER SERVICE ELECTRO-HARMONIX c/o NEW SENSOR CORP. 55-01 2ND STREET LONG ISLAND CITY, NY 11101 Tel: 718-937-8300 Email: info@ehx.com Europe JOHN WILLIAMS ELECTRO-HARMONIX UK 13 CWMDONKIN TERRACE SWANSEA SA2 0RQ UNITED KINGDOM Tel: +44 179 247 3258 Email: electroharmonixuk@virginmedia.com This warranty gives a purchaser specific legal righ ts. A purchaser may have even greater rights depending upon the laws of the juris diction within which the product was purchased. To hear demos on all EHX pedals visit us on the web at www.ehx.com Email us at info@ehx.com
