Dynaco ST 79 Service Manual
This is the 18 pages manual for Dynaco ST 79 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Dynaco ST 79 Service Manual (Ocr-read)

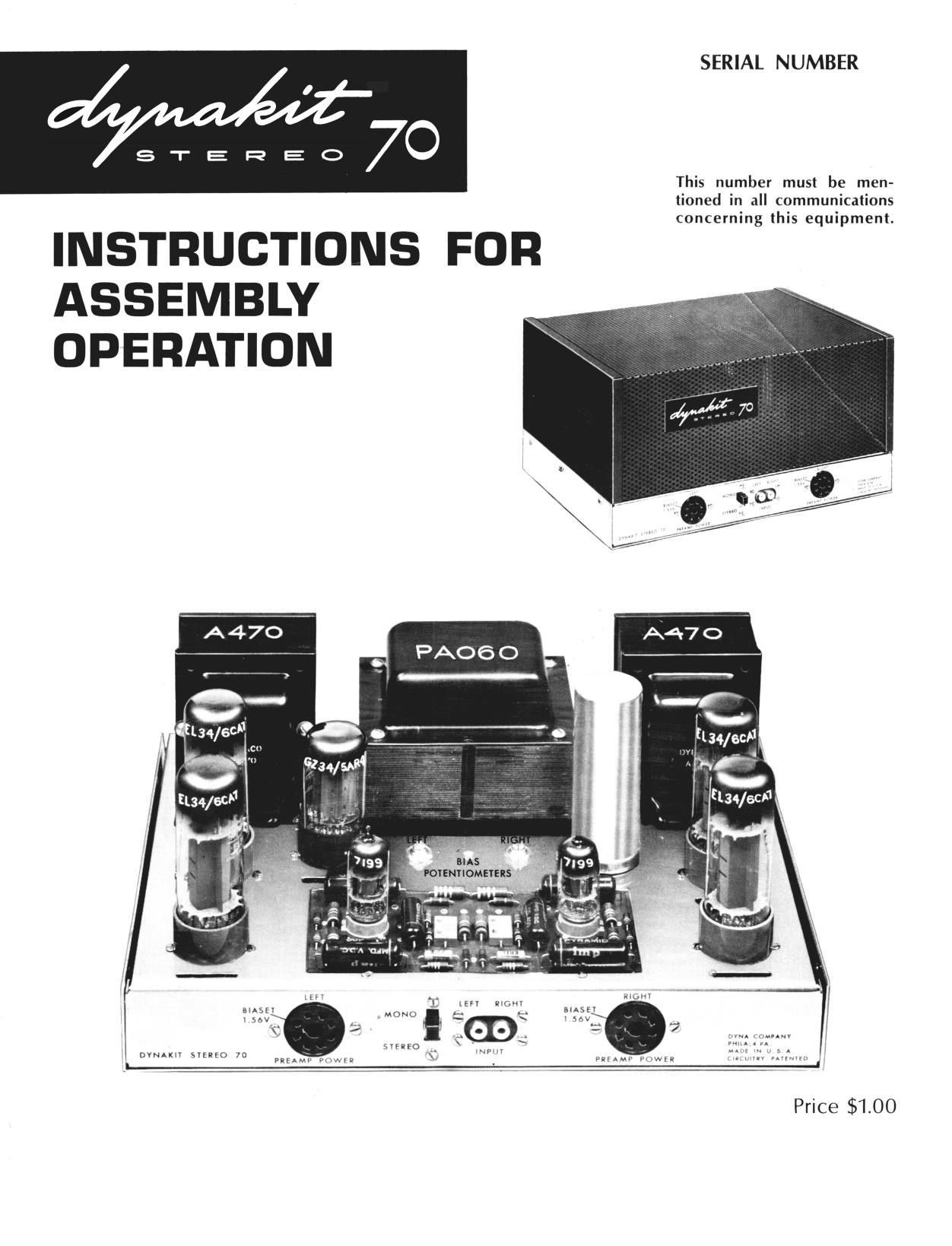

Page 1
SERIAL NUMBER
I
STEREO/O
INSTRUCTIONS FOR
This number must be men-
tioned in all communications
concerning this equipment.
ASSEMBLY
OPERATION
.uum
law 8 3: mm mLmv Bust!
k H u.
W F Mow _ \ , W
'i, " " ' 7
"50 ,. \ INPV \
DVNAKIV SIERIO 70 \ VDlAM? raw
v > w
L punw u> 1w
Price $1.00
Page 2
Power Output
Frequency Response
Power Response
Intermodulation Distortion
Hum and Noise
Sensitivity
Output Impedances
Damping Factor
Minimum Channel Separation
Power Consumption
P reamp Provision
Tube Complement
Size
Weight
Finish
SP ECIFICATIONS
35 watts continuous, 80 watts peak each channel
t .5 db from 10 cps to 40 kc
20 cps to 20 kc within 1 db of 35 watts at less than 1% distortion
Less than 1% at 35 watts (normally about .570). Less than .0570 at 1 watt
Inaudible; better than 90 db below rated power
1.3 volts rms input for 35 watts out
4, 8, 16 ohms each channel
15
55 db
190 watts 50/60 cps
Two power takeoffs with independent heater windings to eliminate
interaction. Each 6.3 volts 1 amp, 350 volts dc 10 ma. Dynakit pre-
amplifiers plug in directly without modification.
EL-34 (4), 7199 (2), GZ-ZA/fiARlly selenium rectifier.
13" by 9-1/2" by 6-1/2" high
32 pounds
Chassis and bottom plate bright nickel plated. Cover finished in
charcoal brown vinyl paint.
