Dynaco Dynakit Mark IV Service Manual
This is the 13 pages manual for Dynaco Dynakit Mark IV Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Dynaco Dynakit Mark IV Service Manual (Ocr-read)
Page 1
SERIAL NUMBER
This number must be men-
Iioned in all communica-
tions concerning Dynakii.

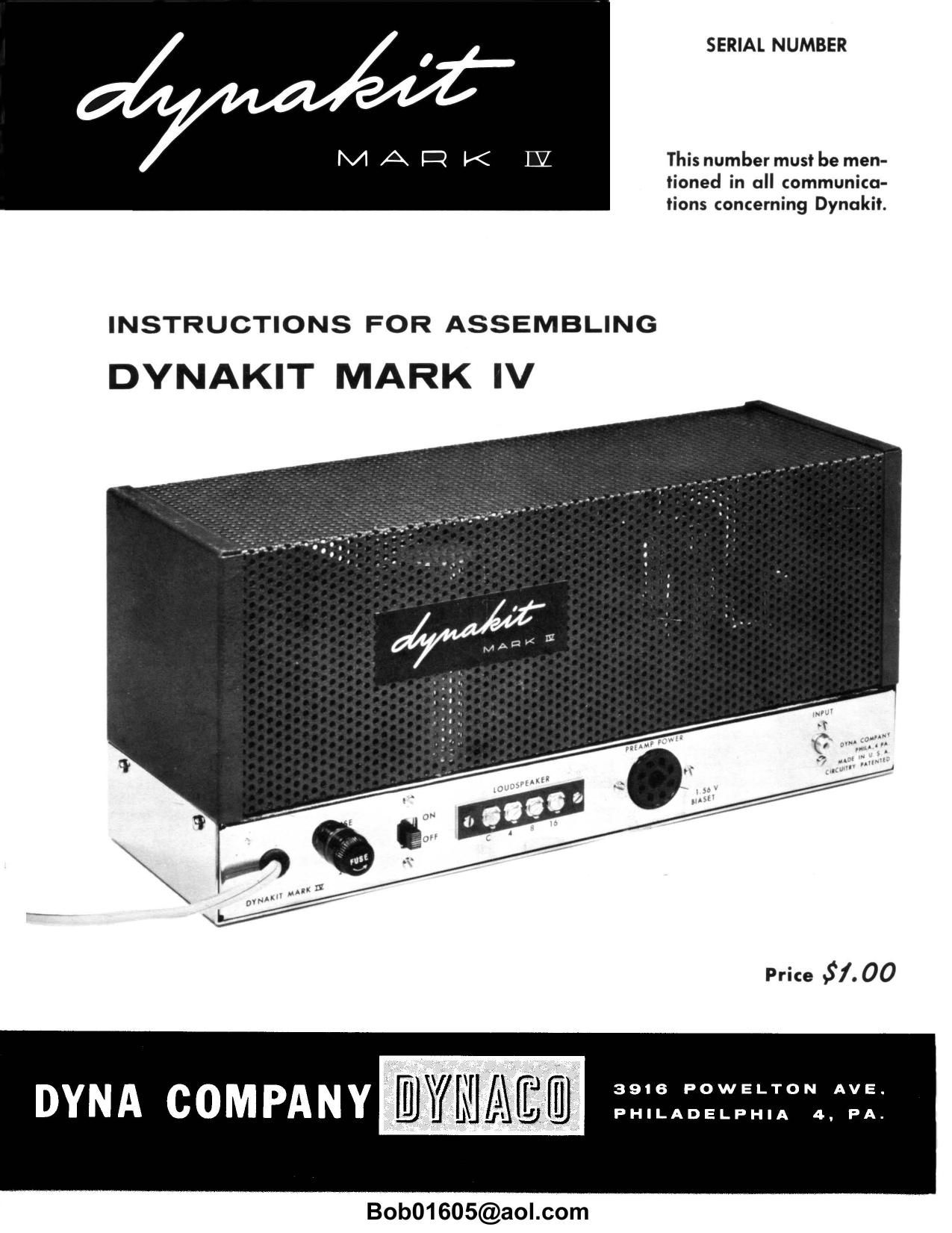

INSTRUCTIONS FOR ASSEMBLING
DYNAKIT MARK IV
Price 5/. 00
DYNA COMPANY 3916 POWELTON AVE.
PHILADELPHIA 4. PA.
Bob01605@aol.com
Page 2
SPECIFICATIONS
Power output: 40 watts continuous, 90 watts peak
IM distortion: less than 1,, at 40 watts, less than
35% at 1 watt
Frequency response: i :5 db from 10 cps to 40 kc;
: 5 db from 20 cps to 20 kc at 40 watts output
Power response: 20 cps to 20 kc without exceeding
1% distortion within 1 db of 40 watts
Sensitivity: 1.3 volts rms input for 40 watts output
Hum and Noise: Inaudible; 90 db below 40 watts
(choke filtering)
Dumping Factor: 15
Output lmpedunces: 4, 8 and 16 ohms
Tubes: ELr34 (2). 7199, GZ-34, selenium rectifier
Finish: bright nickel chassis, vinyl coated charcoal
brown cover
Special Features: Matched tubes, Dyna Biaset for
nonicritical adjustment, preamp power socket, fuse
post, on-ofi switch
Power Consumption: 115 watts
Size: 5 x 14 x 61/2 high
Weight: 20 pounds
