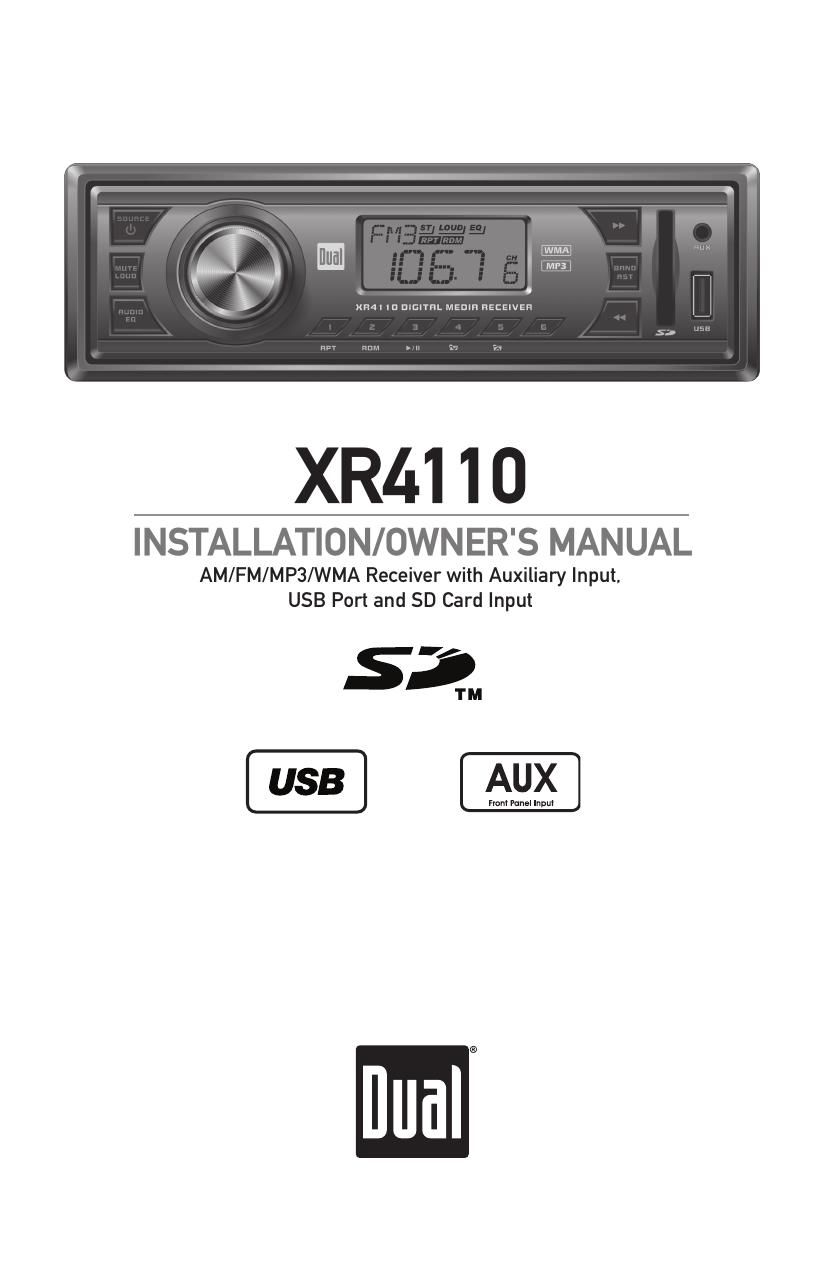

Dual XR 4110 Owners Manual
This is the 12 pages manual for Dual XR 4110 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Dual XR 4110 Owners Manual (Ocr-read)
Page 1
2 Preparation KEYS MOUNTING SLEEVE TYPICAL MOUNTING METHOD XR4110 INSTALLATION Please read entire manual before installation. Before You Start - Disconnect negative battery terminal. Consult a qualified technician for instructions. - Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started - Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve. - Install mounting sleeve into opening, bending tabs to secure. - Connect wiring harness and antenna. Consult a qualified technician if you are unsure. - Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately). - Test for correct operation and slide into the mounting sleeve to secure. - Snap trim ring into place.
Page 2
3 5 AMP AGC Fuse Rear Preamp OutputConnect to amplifier RCA input Antenna Connector Wiring Diagram FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XR4110 uses one 5 amp AGC fuse located in-line. * Caution - Do not attach any speaker leads to ground as severe damage will occur. XR4110 INSTALLATION
