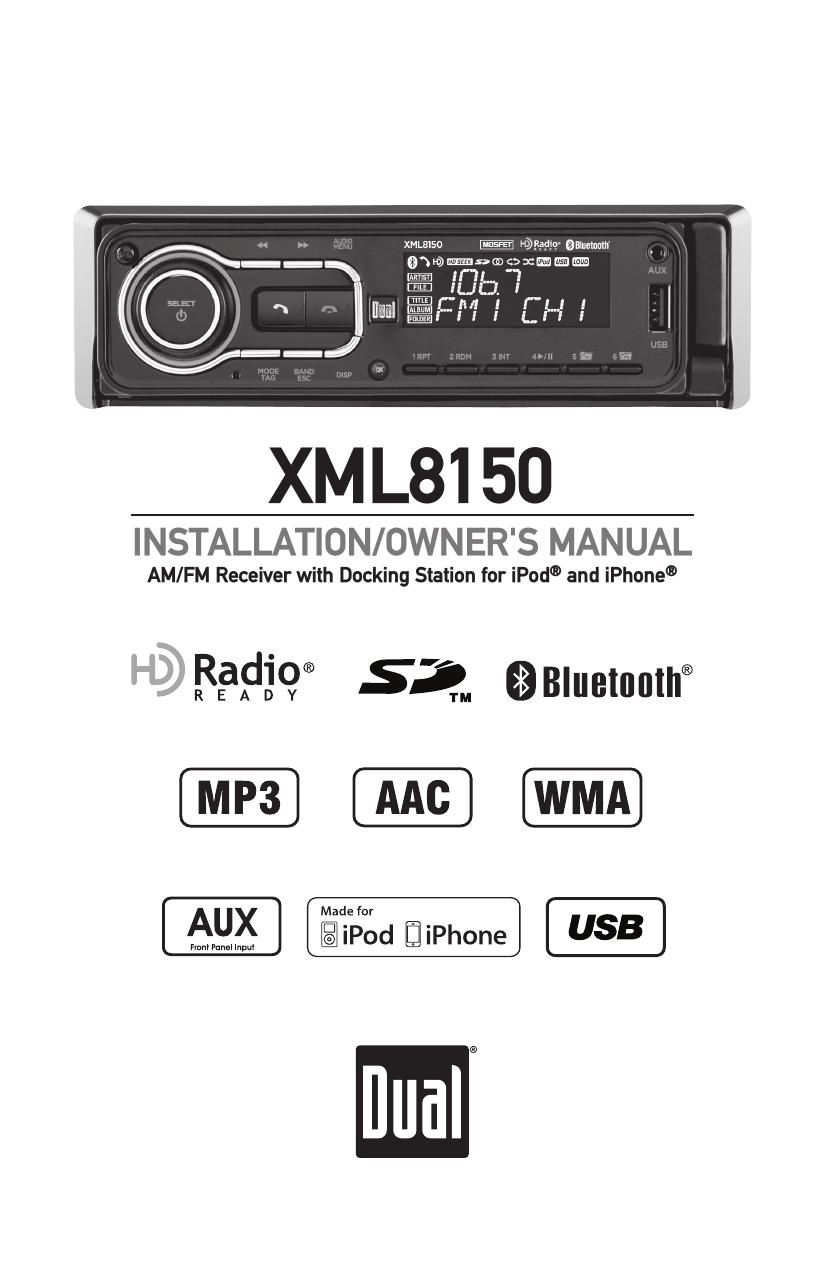

Dual XML 8150 Owners Manual
This is the 32 pages manual for Dual XML 8150 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Dual XML 8150 Owners Manual (Ocr-read)
Page 1
2 TYPICAL FRONT-LOAD DIN MOUNTING METHOD Please read entire manual before installation. Before You Start - Disconnect negative battery terminal. Consult a qualified technician for instructions. - Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started - Remove trim ring from unit, - Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve. - Install mounting sleeve into opening, bending tabs to secure. - Connect wiring harness and antenna. Consult a qualified technician if you are unsure. - Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately). - Test for correct operation and slide into mounting sleeve to secure. - Snap trim ring into place. XML8150 INSTALLATION Preparation HEX BOLT MOUNTING SLEEV E KEYS
Page 2
3 FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XML8150 uses one10 amp ATM fuse located beside the wiring connector. XML8150 INSTALLATION Wiring Diagram Antenna Connector Steering Wheel Interface Input (PAC SWI-PS required ) REAR RCA Preamp Outputs External Amplifer Connections FRONTSUB BLACK Bluetooth Microphone (must be connected for Bluetooth functionality) Bluetooth Microphone InputConnect the included Bluetooth microphone. BLUE 10-pin Female Mini-DINHDM90 Connection (sold separately)
