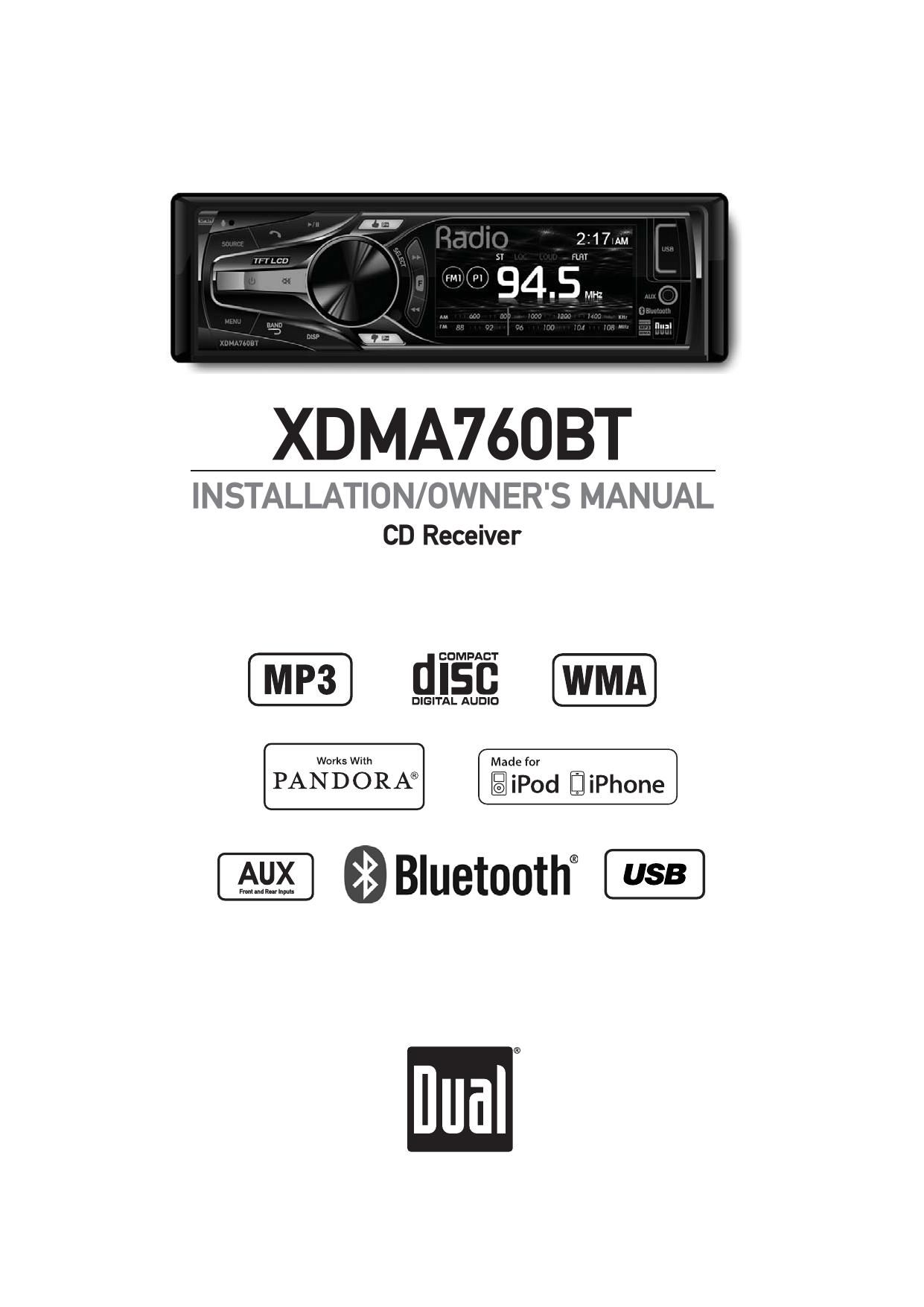

Dual XDMA 760BT Owners Manual
This is the 26 pages manual for Dual XDMA 760BT Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Dual XDMA 760BT Owners Manual (Ocr-read)
Page 1
2 XDMA760BT REMOVAL KEYS HEAD UNIT MOUNTING SLEEVE OPTIONAL REAR MOUNTING SUPPORT Please read entire manual before installation. Before You Start - Disconnect negative battery terminal. Consult a qualified technician for instructions. - Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started - Remove trim ring from unit. - Remove 2 transit screws located on top of the unit. - Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve. - Install mounting sleeve into opening, bending tabs to secure. - Connect wiring harness and antenna. Consult a qualified technician if you are unsure. - Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately). - Test for correct operation and slide into mounting sleeve to secure. - Snap trim ring into place. Preparation TYPICAL DIN FRONT-LOAD MOUNTING METHOD
Page 2
3 XDMA760BT BLUE BLACK RED YELLOW Remote Turn-On Connect to amplifier or power antenna. Insulate wire if not used. GroundConnect to the vehicle chassis ground. AccessoryConnect to an existing ignition circuit or switched 12 volt source. MemoryConnect to the battery circuit or constant 12 volt source. Right FrontGray/Black (-) Gray (+) Left FrontWhite/Black (-) White (+) Left RearGreen/Black (-) Green (+) Right RearViolet/Black (-) Violet (+) SUB REAR FRONT L CH R CH Antenna Connector Rear Output Front Output Subwoofer Output Steering Wheel FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XDMA760BT uses one 10 amp ATM fuse located in-line. Wiring Diagram
Page 6
7 XDMA760BT General Operation Audio Setup Menu Menu Function Options Equalization CurvesRotate the volume knob to cycle through the following equalization curves: Flat, Pop, Jazz, Classic, Beat, Rock and User. Any manual adjustment to the Bass or Treble settings are automatically saved as User. Bass LevelRotate the volume knob to adjust the bass level setting (-6 minimum / +6 maximum). Bass FrequencyRotate the volume knob to select one of the following bass frequency settings: 60 Hz, 80 Hz, 100 Hz or 200 Hz. Middle LevelRotate the volume knob to adjust the middle level setting (-6 minimum / +6 maximum). Middle FrequencyRotate the volume knob to select one of the following middle frequency settings: 500 Hz, 1 kHz, 1.5 kHz or 2.5 kHz. Treble LevelRotate the volume knob to adjust the treble level setting (-6 minimum / +6 maximum). Treble FrequencyRotate the volume knob to select one of the following treble frequency settings: 10 KHz, 12.5 KHz, 15 KHz or 17.5 KHz. BalanceRotate the volume knob to adjust the balance setting. (12-L to 12-R; 0 represents equal balance). FaderRotate the volume knob to adjust the fader setting. (12-F to 12-R; 0 represents equal balance) Subwoofer Rotate the volume knob to turn subwoofer output ON or OFF. Subwoofer Level Rotate the volume knob to adjust subwoofer level between 0 and 12. Subwoofer FrequencyRotate the volume knob to select one of the following subwoofer center frequency settings: Off, 80 Hz, 120 Hz and 160 Hz. "Off" represents a full range subwoofer output. Press MENU to toggle through and select one of the following setup menus: Audio, General, Gain and Screen. 1. Once the desired menu is displayed, rotate the volume knob to scroll through the list of menu features. 2. Press SELECT to select a specific feature to adjust, then rotate the volume knob left/right to adjust or activate the desired feature. 3. Press SELECT to confirm and save the changes. Setup Menu
