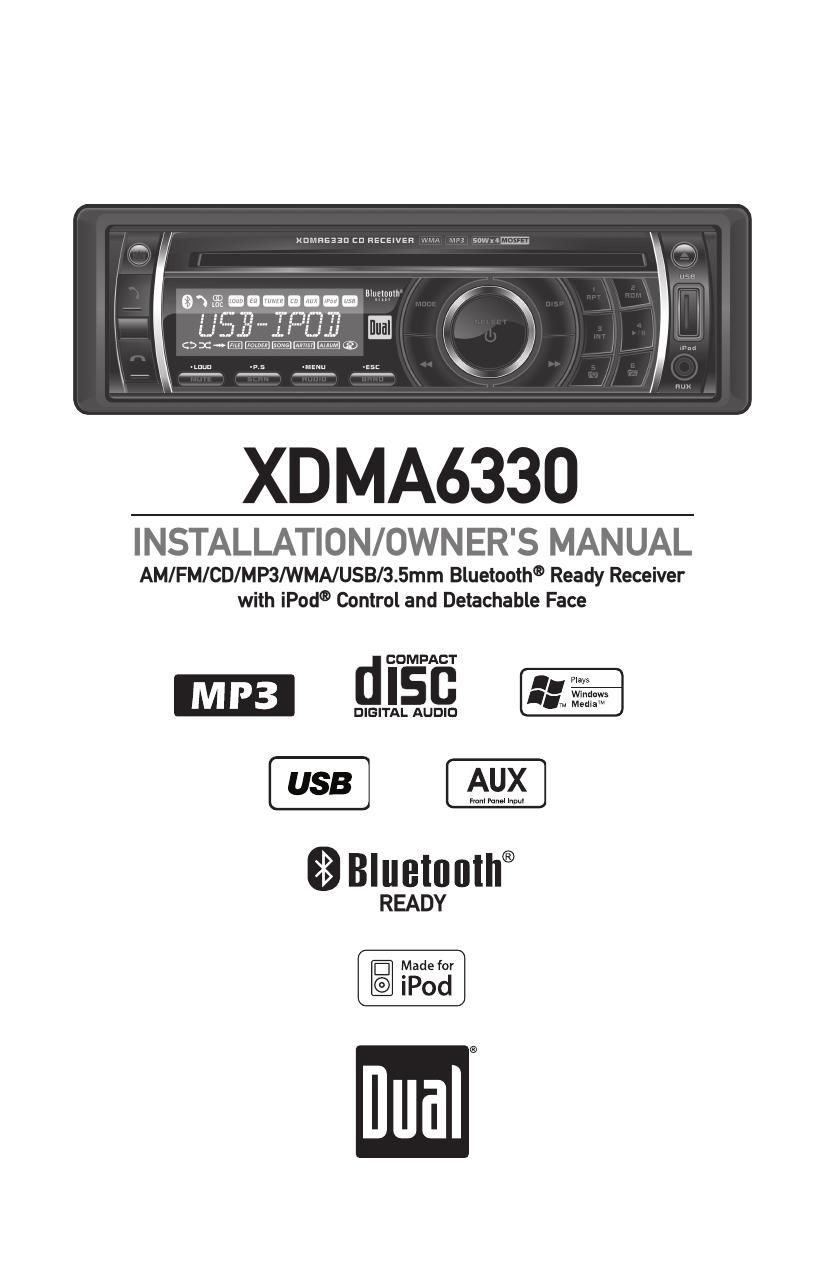

Dual XDMA 6330 Owners Manual
This is the 32 pages manual for Dual XDMA 6330 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Dual XDMA 6330 Owners Manual (Ocr-read)
Page 1
2 TYPICAL FRONT-LOAD DIN MOUNTING METHOD Please read entire manual before installation. Before You Start - Disconnect negative battery terminal. Consult a qualified technician for instructions. - Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started - Remove trim ring from unit, - Remove 2 transit screws located on top of the unit. - Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve. - Install mounting sleeve into opening, bending tabs to secure. - Connect wiring harness and antenna. Consult a qualified technician if you are unsure. - Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately). - Test for correct operation and slide into mounting sleeve to secure. - Snap trim ring into place. XDMA6330 INSTALLATION Preparation KE YS HEX BOLT MOUNTING SLEEVE PLAIN WASHER HEX NUT MOUNTING STRAP
Page 2
3 FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XDMA6330 uses one10 amp ATM fuse located beside the wiring connector. XDMA6330 INSTALLATION Wiring Diagram Antenna Connector Steering Wheel Interface Input (PAC SWI-PS required ) FRONTR/SUB L-CH R- CH REMO TE IN BLACK 8-pin Female Mini-DIN BTM60 Connection REAR/SUB(selectable) RCA Preamp Output Connections FRONT
