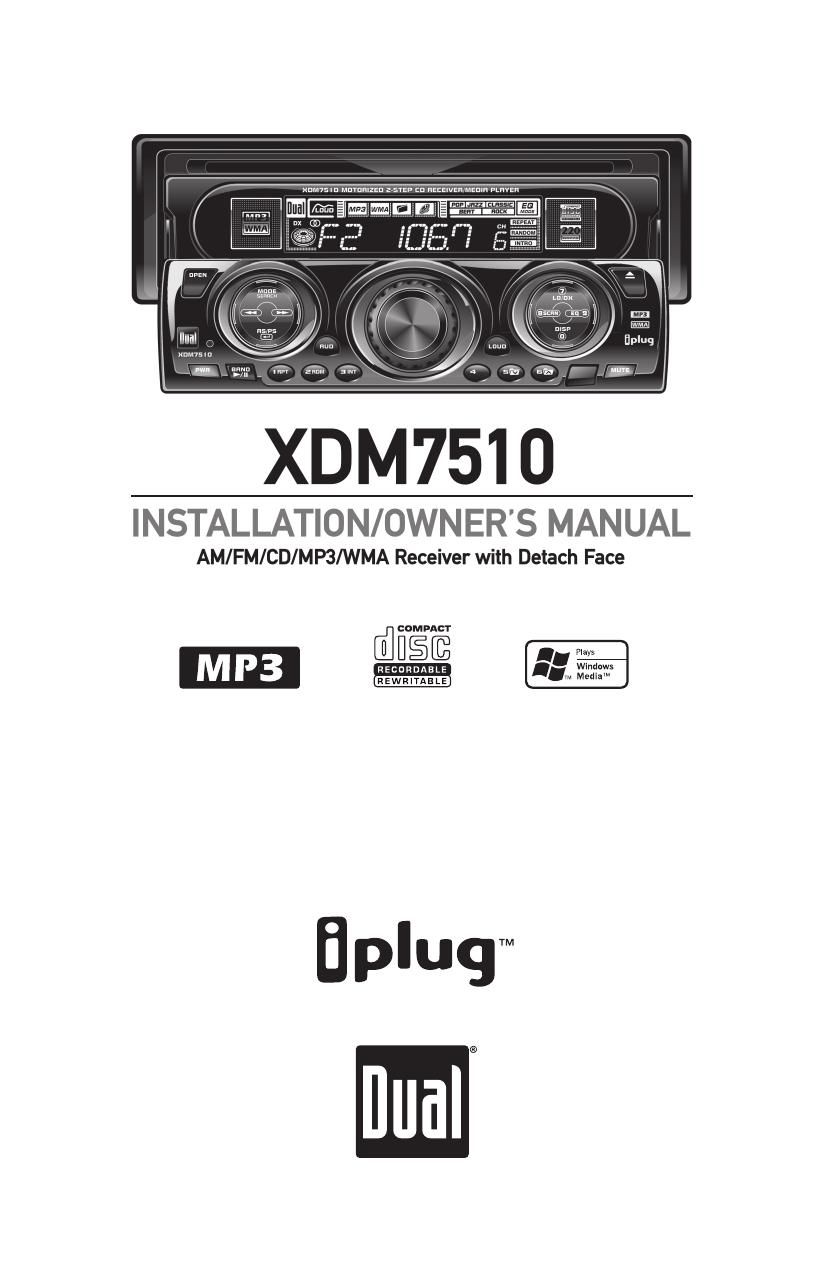

Dual XDM 7510 Owners Manual
This is the 20 pages manual for Dual XDM 7510 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Dual XDM 7510 Owners Manual (Ocr-read)
Page 1
2 TYPICAL FRONT-LOAD DIN MOUNTING METHOD Please read entire manual before installation. Before You Start - Disconnect negative battery terminal. Consult a qualified technician for instructions. - Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started - Remove trim ring from unit, - Remove 2 transit screws located on top of the unit. - Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve. - Install mounting sleeve into opening, bending tabs to secure. - Connect wiring harness and antenna. Consult a qualified technician if you are unsure. - Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately). - Test for correct operation and slide into mounting sleeve to secure. - Snap trim ring into place. - Mount the iplug™ adapter to any smooth clean surface using the supplied double-sided tape or #2 x 3/8 Phillips head screws. XDM7510 INSTALLATION Preparation
Page 2
3 FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XDM7510 uses one 10 amp ATM fuse located beside the wiring connector. XDM7510 INSTALLATION Wiring Diagram
