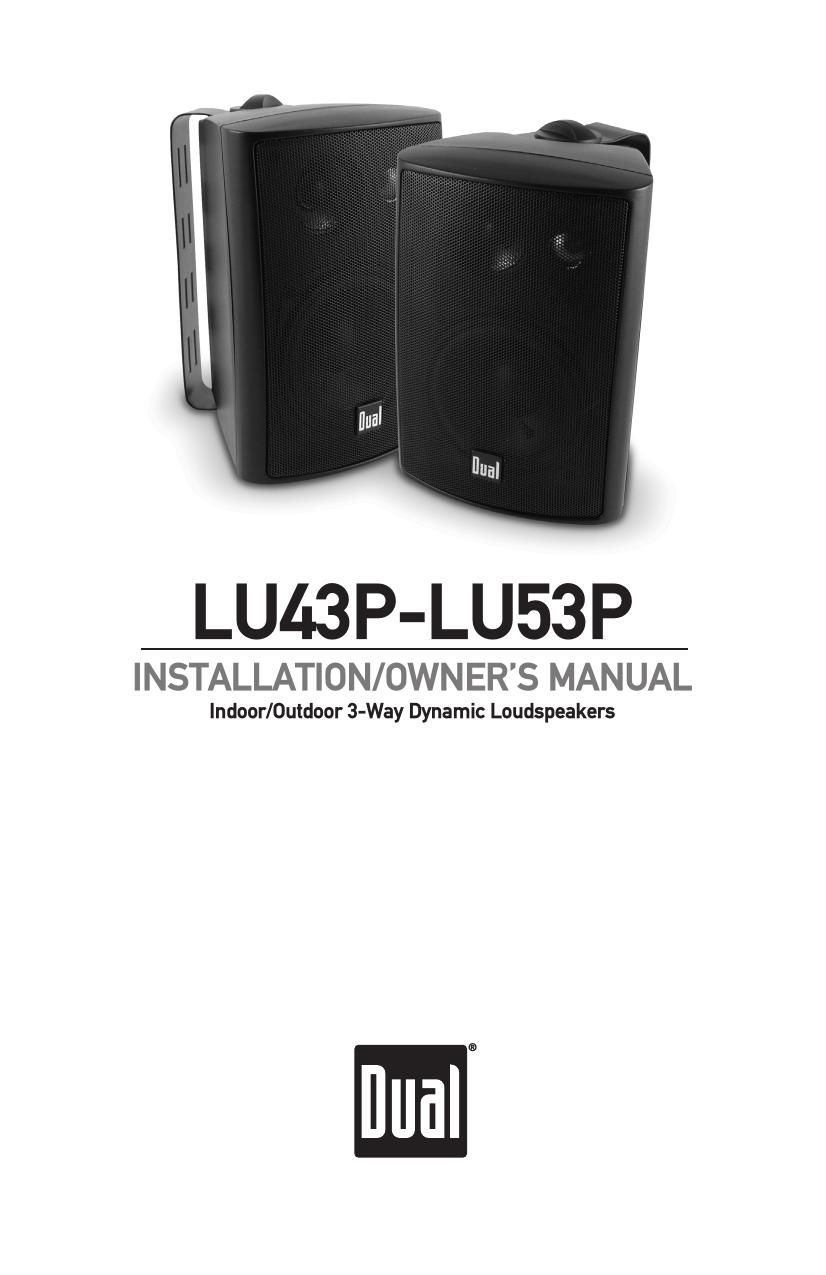

Dual LU 43P Owners Manual
This is the 8 pages manual for Dual LU 43P Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Dual LU 43P Owners Manual (Ocr-read)
Page 1
2 LU43P-LU53PINTRODUCTION Introduction The DUAL outdoor speaker series is designed as a multi- purpose speaker and will deliver accurate high fidelity sound in exterior or interior environments. Weather-resistant design and construction provide optimum durability for permanent or temporary outdoor use. Both models are available in black or white. For simplicity, we will call your AV receiver or amplifier the receiver. The grilles are not designed or intended to be removed. Do not remove the grilles from your speakers. There are no user- serviceable parts behind the grille and removal will damage the speaker. You must have proof of purchase to receive warranty service. Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Dual product. Model Dealer Name Dealer Phone Purchase Date Note: You may want to keep your original sales receipt or a photo copy with this installation/owners manual. Introduction Important Warranty Coverage For Your Records ®
Page 2
Recommended minimum distance between speakers (610) 3 LU43P-LU53PPLACEMENT Speaker Placement If mounting is desired, mounting both speakers on a common solid surface facing the listening area will provide the best audio results. Do NOT mount speakers on wall surfaces that have hazards concealed behind them, such as electrical wires or plumbing. Always mount speaker on surfaces that are sturdy enough to support the speakers weight, and make sure they cannot fall or cause injury. Your speakers can be placed in many convenient locations in your home or patio area - as stereo pairs on either side of your receiver - as surround speakers in home theater surround sound systems - in your computer room to enhance the multimedia experience - or as remote speakers. For wall and ceiling applications, DUAL mounting brackets are included. In addition, the LU43 has a rear inset keyhole for surface hanging, and the larger LU53 has two 1/4-20 brass inserts incorporated into the rear of the enclosure if aftermarket mounting systems will be used. You should experiment with various placements. Room acoustics can produce large apparent differences in the sound when small changes in the placement are employed. For example, although the speaker may be located at any height above the floor, directing the tweeter toward ear level (32" – 36") or angling the entire speaker toward the listening position often provides the most realistic imaging experience. The amount of bass perceived increases as you move a speaker closer to solid intersecting room surfaces (walls, ceiling, floor). Mounting Placement Speaker Placement Wall and Ceiling Placement Experiment for Better Sound ®
Page 6
7 LU43P-LU53PSPECIFICATIONS Specifications Model LU43P Frequency Response 100 Hz-20kHz Woofer 4" (100mm) Polyelite PVA Surround Midrange 40mm polypropylene Tweeter 20mm Piezo Dome Sensitivity 85.5 dB (2.83v @ 1 meter) Nominal Impedance 4-6 ohms Power Handling* 50 watts RMS - 100 watts (IPP) Dimensions (Inches H x W x D) 8.25 x 5.25 x 5.25 Weight 2.8 lbs. Finish Black or White Model LU53P Frequency Response 70 Hz-20kHz Woofer 5 1/4" (130mm) Rubber Surround Midrange 25mm polypropylene Tweeter 20mm Piezo Dome Sensitivity 87dB (2.83v @ 1 meter) Nominal Impedance 6-8 ohms Power Handling* 60 watts RMS - 125 watts (IPP) Dimensions (Inches H x W x D) 10.13 x 7.25 x 7.25 Weight 4.4 lbs. Finish Black or White * Power handling is based on amplifier volume never being set above the point of audible distortion. All Rights Reserved. All specifications subject to change without notice. Specifications ®
