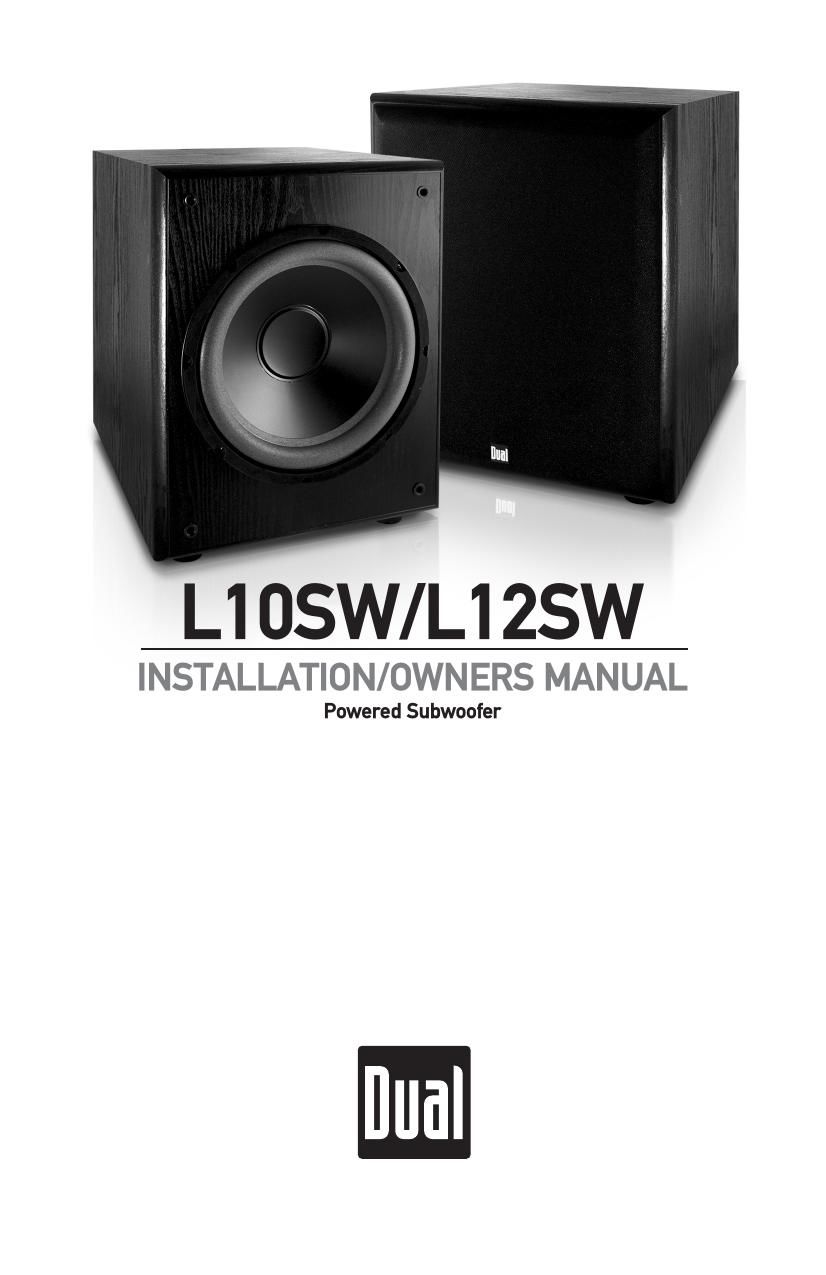

Dual L 10SW Owners Manual

This is the 8 pages manual for Dual L 10SW Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 8
Dual L 10SW Owners Manual

Extracted text from Dual L 10SW Owners Manual (Ocr-read)


Page 1

2 SUBWOOFER SERIESINTRODUCTION Introduction Thank you for your purchase. Your new Dual powered sub- woofer was designed and manufactured to deliver refined musical reproduction and vivid home theater excitement. Dual audio products are constructed using the finest quality components and we are proud of our custom designed drivers and electronics. Much effort has gone into the design of your new sub as to help you achieve years of maximum performance and pleasure. Every DUAL loud- speaker undergoes rigorous testing and quality controls at the factory to ensure years of listening pleasure. Please take a moment to read this manual prior to installing your new subwoofer. The information provided will help you obtain maximum performance. Though this manual will refer to your receiver, the instruc- tions and recommendations apply to all consumer ampli- fiers as well as A/V receivers. Dual powered subwoofers are designed for indoor use only. It is important to turn off the power to your receivers power supply before connecting the subwoofer to your system. Introduction Important

Page 2

3 SUBWOOFER SERIES PLACEMENT Placement Your DUAL subwoofer can be placed in many convenient locations in your home, but must be placed on the floor. Do not attempt an installation that would elevate the subwoofer above floor level. You should experiment with various place- ments. Room Acoustics can produce large apparent differ- ences in the sound for small changes in the placement location and adjustments to subwoofer controls. For Example, directing the woofer of a forward firing sub toward ones typical listening position and adjusting the low pass filter to 150 Hz can make the sub very directional. This means you perceive exactly where the sub is located within the room. This is not a desirable result for the most realistic audio experience. The common thinking regarding subwoofer placement and performance is to position and adjust the subwoofer in such a way that the subwoofers low frequencies encompasses the entire room with deep powerful bass and provides the most realistic imaging experience. The amount of bass per- ceived increases as you move the subwoofer closer to an intersecting wall surface and the highest level of bass results are realized from placement in a corner, but should be no closer than 3" from the wall surface. The floor and corner placement (loading) are actually an important part of the Subwoofers design. Attempt to place the subwoofer in or near the corner closest to your system's receiver to ensure the shortest possible wire or cable runs, which will result in superior performance. Indoor Placement
