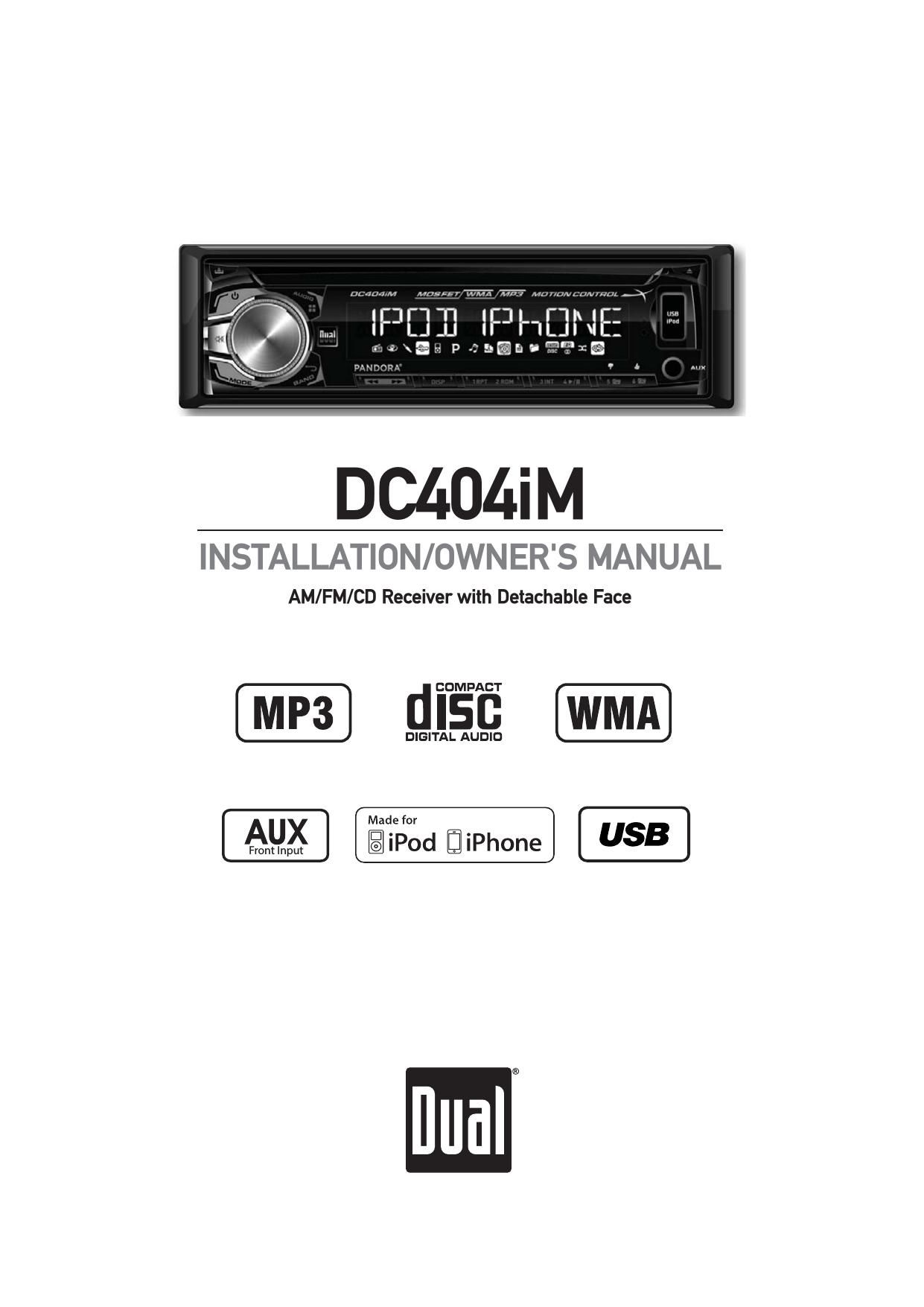

Dual DC 404IM Owners Manual
This is the 28 pages manual for Dual DC 404IM Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Dual DC 404IM Owners Manual (Ocr-read)
Page 1
2 DC404iM INSTALLATION Preparation Please read entire manual before installation. Before You Start - Disconnect negative battery terminal. Consult a qualified technician for instructions. - Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started - Remove trim ring from unit. - Remove 2 transit screws located on top of the unit. - Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve. - Install mounting sleeve into opening, bending tabs to secure. - Connect wiring harness and antenna. Consult a qualified technician if you are unsure. - Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately). - Test for correct operation and slide into mounting sleeve to secure. - Snap trim ring into place. MOUNTING SLEEVE INSTALLATION MOUNTING KITS OR DASHBOARD HEAD UNIT REMOVAL KEYS TYPICAL FRONT-LOAD DIN MOUNTING METHOD
Page 2
3 DC404iM INSTALLATION Wiring Diagram FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The DC404iM uses one 10 amp ATM fuse located beside the wiring connector. Antenna Connector 10 AMP AGC Fuse
Page 10
11 DC404iM OPERATION CD Player Operation - MP3/WMA Files Playing an MP3/WMA Disc Displaying Information Title Icon Artist Icon Folder Icon File Icon Character SupportWhen an MP3/WMA encoded disc is first inserted, DISC READ will appear in the display. Depending on the number of files and folders, this may take several seconds. Press DISP to select between song title, artist, file name, folder name, track number, and clock/elapsed time. NO ARTIST or "NO TITLE" will be displayed if the MP3/ WMA file contains no ID3 tag information. ROOT will be displayed if the directory name of a root folder is not labeled. This icon will illuminate when the song title is displayed. This icon will illuminate when the artist name is displayed. This icon will illuminate when the folder name is displayed. This icon will illuminate when the file name is displayed. Maximum character display information - Track name – 32 character maximum - Directory name – 32 character maximum - *Song title – 32 character maximum - *Artist name – 32 character maximum *Song title and Artist Name will only be displayed if included with the MP3/WMA file. When referring to MP3/WMA playback, the following terms are synonymous: - File name and track name - Folder name and directory name
Page 27
Dual Electronics Corp. Toll Free: 1-866-382-5476 9AM-5PM EST, Monday-Friday www.dualav.com ©2015 Dual Electronics Corp. All rights reserved. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. Made for iPod and Made for iPhone mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. Other trademarks and trade names are those of their respective owners. NSA0215-V01 FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.
