Dual Axxera AXV 820 Owners Manual
This is the 40 pages manual for Dual Axxera AXV 820 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Dual Axxera AXV 820 Owners Manual (Ocr-read)

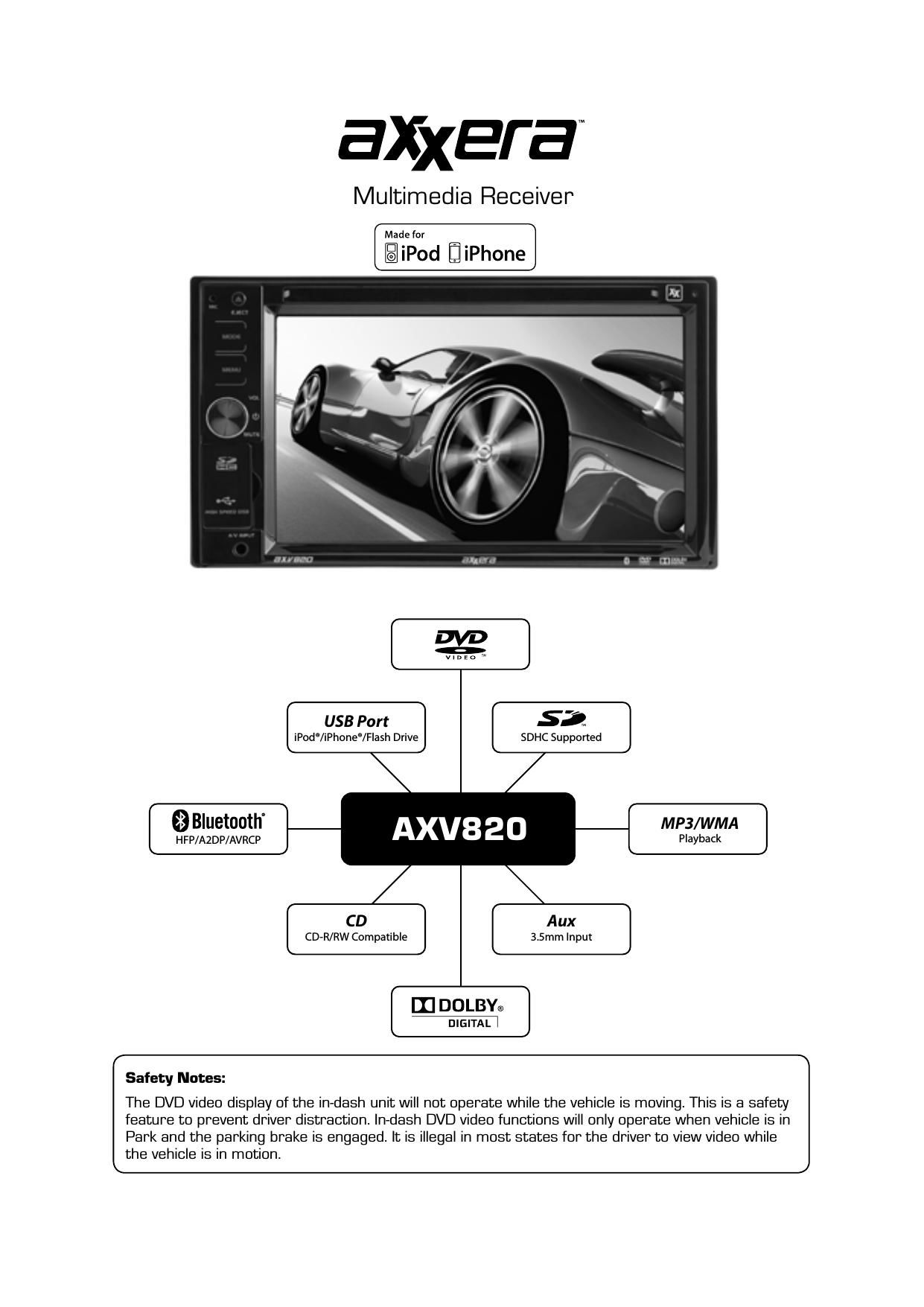

Page 1
Copyright Notes This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc. registered in the U.S. and other countries. Made for iPod and Made for iPhone mean that an electronic accessory has been designed to con- nect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. The SD logo is a trademark of the SD Card Association. Other trademarks and trade names are those of their respective owners.
Page 2
2 AXV820 3 4 5 6 7 8 9-12 13 - 14 15 - 16 17 - 21 22-28 29-30 31 - 34 35 36 37 38 Page Warning Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Safety Information/Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Preparation/Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Control Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Remote Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . General Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AM/FM Tuner Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CD Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP3/WMA/JPG Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DVD Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Operation of iPod ®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Auxiliary Inputs/Rear Camera Operation. . . . . . . . . . . . . . . . . . . . . . . . . . Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table of Contents
Page 9
9 AXV820 Power On/OffMode Menu Volume Mute 3.5mm A/V Input Momentarily press the volume knob t o turn the unit on. Hold for 2 seconds to turn the unit off. Press MODE \f \b \f \f\b\ # ! \b * \b q K +! |! "|_! \f \f \f Y\f! 'q(! 'q]! K and Bluetooth. Modes of operation are indicated on the OSD On Screen Display. Disc, iPod device, USB flash drive and/or SD card must be connected/inserted in order to appear in the mode selection string. When one of the operational modes is selected, icons for the other modes are displayed across the top center region of the display. The example below shows the unit in Tuner mode, with icons displayed for iPod, USB, SD and Disc. Directly access a different mode by touching the corresponding icon. \f\b \f \f \f \b\f \b\b \f \b *\b \f + Press MENU \f j\b \f \f \f *# ! \b! _ \f\f ! Y\f! 'q(! 'q]! K ! | K \f \f "|_+! \f | \f \f put the unit in Standby mode. The Main Menu screen can also be accessed by pressing the key area in the top left corner of the touch screen that displays the current mode of operation. Turn the volume knob \f \b \f \f \f *) ~)+ # \f \b \b Briefly press the volume knob *MUTE) t o silence the audio; will appear in the [| *[ | \b+ Briefly press the volume knob *MUTE) again to cancel. Turning the volume knob while t he volume is muted will also cancel the mute function. Connect external devices to this 3.5mm auxiliary A/V input. General Operation
Page 11
11 AXV820 Setup MenuFrom the Main Menu screen, press Setup t o enter the Setup menu. The first four setup options will be displayed on the screen. Press or to scroll \f \f \f \f \f \f\b\ General Operation Menu Option Action ScreenBrightness Press + or - to increase or decrease screen brightness. Contrast Press + or - to increase or decrease contrast levels. Color Press + or - to increase or decrease color levels. DVD Mode | \f \f \f\f \f\b \f q \ Full, Original, Height Fit or Width Fit. Rating Limit DVD playback according to rating by selecting the highest allowed rating level in the Parental K\f \f \b ' \b\b \f \b : \f \b the rating level, and the default password is "0000". To change the password, press Set Password. The unit will prompt you to enter the existing password, then the new password. Time Time#\f \b \f \b! \b \f 'jY! \b\b desired field and enter the correct number using the on screen keypad. Mode Select between 12 hour and 24 hour clock formats. Tuner Region | "|'
