Dual 506 Owners Manual

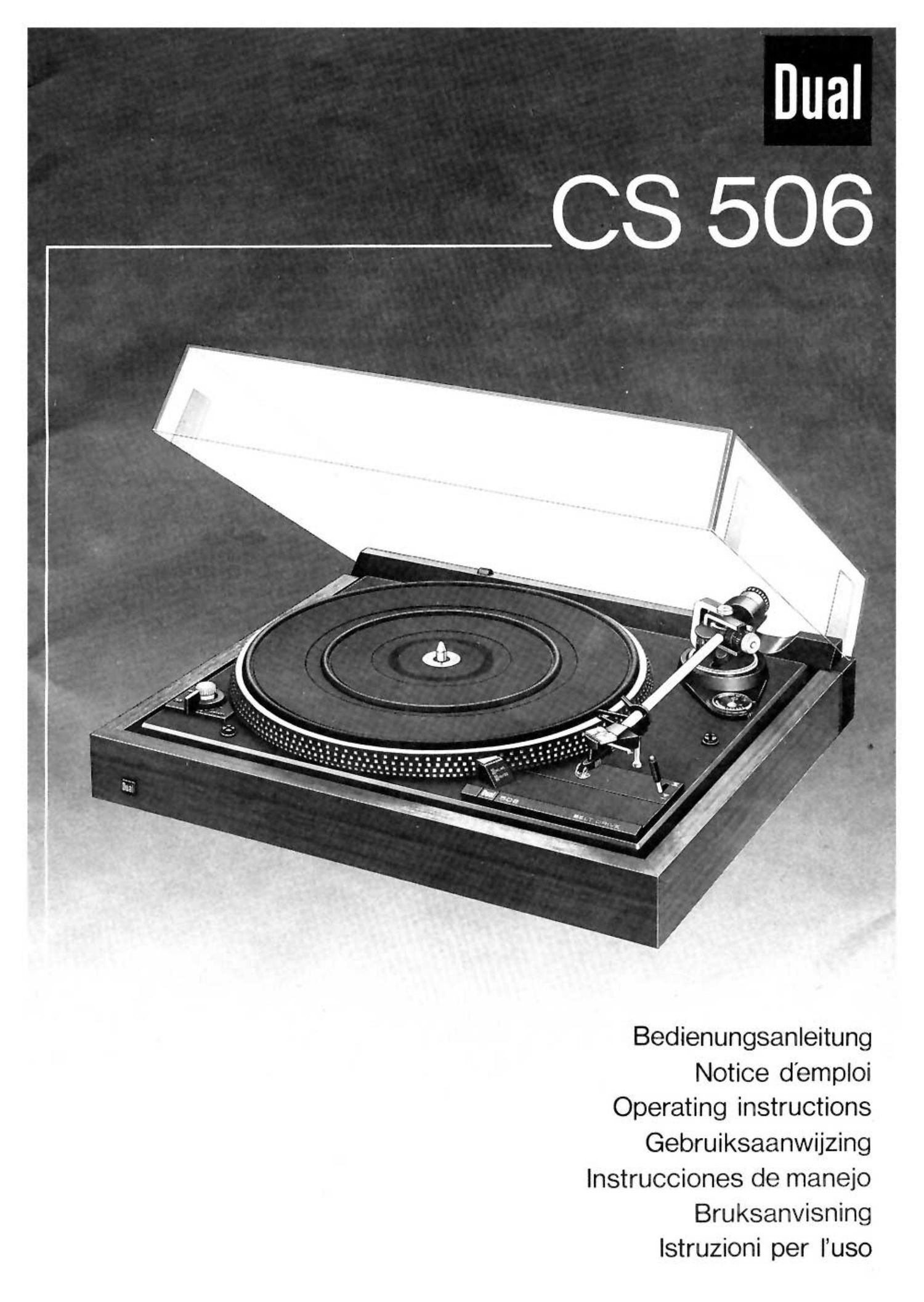

Page 1

Bedienungsanleitung
Notice d'emploi
Operating instructions
Gebruiksaanwijzing
Instrucciones de manejo
Bruksanvisning
Istruzioni per luso

Page 2

Unpacking and setting up
After opening the box place aside the polystyrene insert with
the complete accessories. Remove the console with the inserted
record player from the box and put the unit in the place inten-
ded for it. First of all read the instructions slips on the unit
and then remove these afterwards with the packing films. We
recommend you keep the original packaging in case you need
this later on for further transport.
To release the transport locking screws (Fig. 1) turn these in
clockwise direction until they slidedown approximately 15 mm
and then tighten these by turning them further in clockwise
direction. In this way, the record player is spring m0unted in
playing position (Fig. B).

L

A B
Remove the tonearm counterbalance from. the polystyrene in-
sert amd place the stem of the counterbalance, after releasing
the locking screw (3), into the opening intended for this at the
back end of the tonearm. At the same time, the triangular recess
on the stem should point downwards (Fig. 2). Balancing as
well as setting of stylus pre35ure and anti-skating which is now
necessary are described in more detail on pages 14 and 15.

Please refer to the separate data sheet for the stylus pressure of
the cartridge already inserted in the unit.

Now connect to the reproducing amplifier and place the mains
lead into the socket. Please pay attention to the separate infor-
mation in these instructions.

Subsequent transport

Make sure that the tonearm is locked and that the stylus pro-
tection is swivelled downwards. In addition, the transport
locking screws must be loosened in anticlockwise direction,
pulled upwards and secured by further turning (Fig. C). The
tonearm counterbalance should be removed.

If you intend to dispatch y0ur unit, make sure that the packaging
is impeccable and. if possible. use the original packaging.

Connection to the ac mains

The unit can be operated on alternating current, 50 or 60 Hz,
110/125 or 220/240 V. At the factory, 50 Hz units are set for
230 V; 60 Hz units, for 115 V.

Conversion of the mains voltage should only be carried out by
your specialist dealer or by an authorized Duel service station.

Connection to the amplifier
The cartridge lead of y0ur HiFi turntable IS equipped at the
works with RCA (Cynch) jacks.
