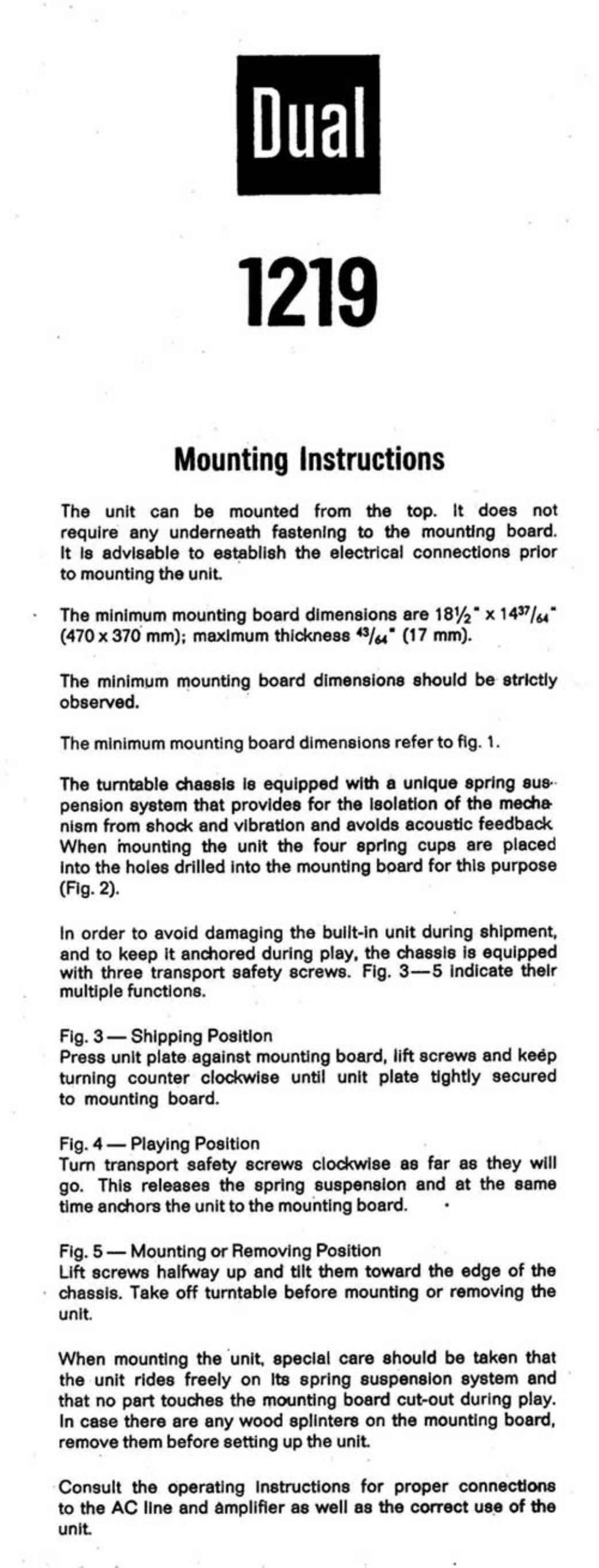

1219

Mounting instructions

The unit can be mounted from the top. it does not
require any underneath fastening to the mounting board.
it is advisable to establish the electrical connections prior
to mounting the unit.

The minimum mounting board dimensions are 181/,' x 143%;
(470x 370 mm); maximum thickness I. (17 mm).

The minimum mounting board dimensions should be strictly
observed.

The minimum mounting board dimensions refer to fig. 1.

The turntable diesels is equipped with a unique spring sue
pension system that provides for the isolation of the mocha
nism from shock and vibration and avoids acoustic feedback
When mounting the unit the four spring cups are placed
Into the holes drilled into the mounting board for this purpose
(Fig. 2).

In order to avoid damaging the built-In unit during shipment.

and to keep it anchored during play. the chassis is equipped
with three transport safety screws. Fig. 3-5 indicate their
multiple functions.

Fig. 3 - Shipping Position

Press unit plate against mounting board. lift screws and keep
turning counter clockwise until unit plate tightly secured
to mounting board.

Fig. 4 - Playing Position

Turn transport safety screws clockwise as far as they will
go. This releases the spring suspension and at the same
time anchors the unit to the mounting board.

Fig. 5 - Mounting or Removing Position

Lift screws halfway up and tilt them toward the edge of the
chassis. Take off tumteble before mounting or removing the
unit.

When mounting the unit. special care should be taken that
the unit rides freely on Its spring suspension system and
that no part touches the mounting board cut-out during play.
In case there are any wood splinters on the mounting board.
remove them before setting up the unit

Consult the operating Instructions for proper connections
to the AC line and amplifier as well as the correct use of the
unit
