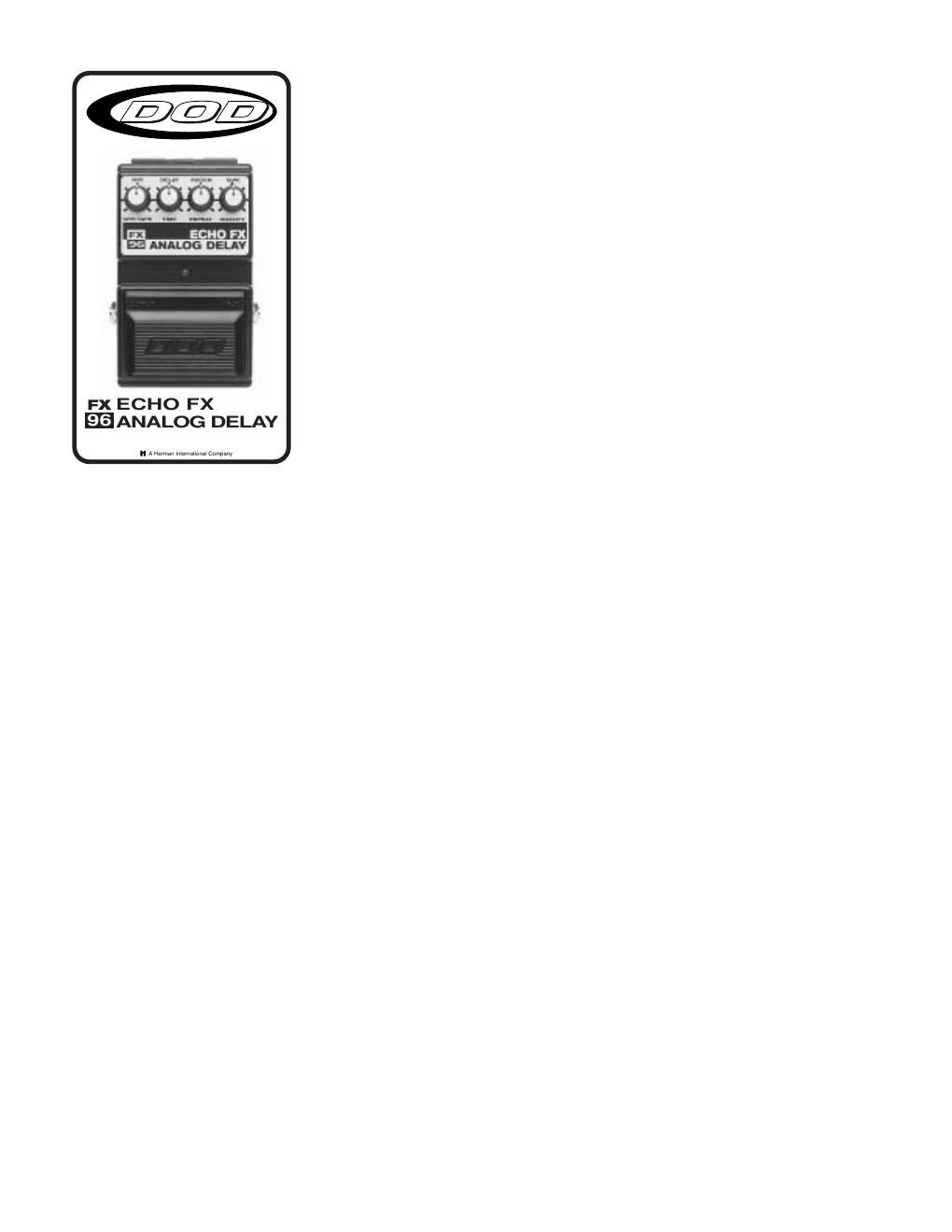

Page 1
WHAT THE FX96 DOES The FX96 Echo Fx is DODÕs latest addition to its arsenal of great delay effects. The FX96 is an Analog Delay pedal that offers tape delay simulation at your feet. No longer will you have to haul (and handle with care) the bulky Echo tape machines of the past to the gig .And if the Òworn-out tapeÓ characteristics of the old Echo machines is the sound your looking for, the FX 96 gives a Tape Quality control for changing the tonal quality of the tape emulation. CONNECTING THE FX96 Connect your guitar to the input of the FX96. Connect the OUTPUT of the FX96 to your amp (or to the input of another effects device). To eliminate the need for a 9-volt battery, attach the DOD PS200R to the AC adapter jack. The PS200R is a regulated supply that will not allow hum into the pedal. FEATURES LED indicator shows status of effect and battery condition Active switching for noiseless operation Easy access battery compartment Adapter jack for AC operation Rugged die-cast metal case Three year limited warranty Rubber non-skid bottom
Page 2
CONTROLS MIX (DRY/TAPE) The MIX (DRY/TAPE) knob controls the mix level between the Dry and Effect level of the FX 96 Echo Fx. Turning the knob all of the way down, produces all dry signal. Turning it all of the way up, produces a 100% wet effect. DELAY TIME: The DELAY TIME knob controls the delay time of the FX 96 Echo Fx. Turning the knob all of the way up produces up to approximatley 800 milliseconds of delay time. REGEN/REPEAT: The REGEN/REPEAT knob controls the amount of delay regeneration that is fed into the signal of the FX 96. By turning the knob all of the way up, this will produce more delay repeats. By turning down the REGEN/REPEAT control down, this will produce less repeats, TAPE QUALITY: The TAPE QUALITY knob controls the Low Pass Filter which is use to re-create analog tape quality variances of the past. The higher the TAPE QUALITY knob is turned up, the more ÒgrainyÓ and Muddy the tape quality becomes. FOOTSWITCH: Switches the Echo effect in or out of the signal path. LED INDICATOR: Lights when the Echo is enabled, and is not lit when the Echo is bypassed. JACKS: Input, Output, AC Adapter (use the DOD PS200R power supply only to eliminate the need for a 9 volt battery).
