WW notes

dean aim no: going to use the rxeoe, rxsz, or
m as sure to unplug the lNPUT jack so as to not
' waste the pottery.

in it eta} are not going to use the FXBDB, FX62, or
3&5 tor an extended period 01 time, remove the
setters to avoid possible damage to the unit from
teatime Battery fluids.

in When the FXGDB. FXSZ. or FX65 tails to switch in
of out or the LED indicator stays lighted, the battery
is probably used up and needs to be replaced.

a it is a good idea to keep a fresh battery in the
battery compartment while youre playing the FXGOB,
FXBZ. or FX65 so that even it the AC. adapter
should accidentally come out. your FXSOB, FX62, or
FX65 will continue to work.

- The use of any other A.C. adapter other than a
DOD PS 3 or DOD FX105 will void the warranty oI
this product.

- Unauthorized repair of the FXSDB, FX62, or FX65
will void the warranty. Should your chorus unit
require service. contact your DOD FX pedal dealer
lor return/repair intormation.

A stereo multiple effects setup using the FXGDB,
FX62, or FX65 might look like this:

Illll


M605 FX4DB FXW FX 75 FXSOB
FX62 or Graphic Delay Stereo an've
FX65 foualizer Hanger Plus


Am]: I Amp 2 GUITAR

SPECIFICATIONS
Input Impedance: 500K ohms.
Output Impedance: 1K ohms.

Delay Time Range (FXEUB It FX65): 5 to 8
milliseconds

Delay Time Range (FXEZ): to to 16 milliseconds
Sweep Speed: .8 to 8 Hz
Bandwidth: 40Hz to 16K Hz.

Power Supply: one 9 volt battery or DOD PS 3 A12.
adapter.

Size: 5" x 3" x 21/4 " (126mmx77mmx57mm).
Weight: 1.2 lbs. (.55 kg).

CHANGING THE BATTERY

Figure 1: Push battery compartment cover tab down
and pull out at top.

Figure 2: Remove used battery. Replace with an
EVEREADYE 9 volt No. 216 (NEDA 1604) or
EVEREADV® ENERGlZEW 9 volt battery No. 522.
Snap on new battery and replace as shown.

Figure 3: insert compartment cover in groove and
push closed to latch.

Figure I Figure 2 Figure 3

DOD WARRANTY

1. The warranty registration card must be mailed
within ten days alter purchase date to validate
this warranty.

2. DOD warrants this product, when used solely
within the us, to be free Irom detects in material
and workmanship under normal use and service.

3. 000 Electronics liability under this warranty is
limited to repairing or replacing defective materials
that show evidence of defect. provided the product
is returned through the original dealer, where all
parts and labor will be covered up to a period of

consequential damage are e resist at the products
use in any circuit or assembly»

4. Proor or date at purchase is considered to be the
burden oi the consumer.

5. It this product is battery operated: Batteries are
not covered try this warranty. Please remove weak or
dead batteries in order to prevent corrosion damage,

6. 000 reserves the right to make changes in design
or make additions to or Improvements upon this

product without mooning any obligation to install the
same on PRODUCIS PhEVlOUSLt MANUFACTURED.

7 The loregoino is in lieu ol all other warranties,
expressed or implied, and Dill) neither assumes nor
authorizes any person to assume for it any obligation
or liability in connection with the sale oi this
product in no event shall DOD or is dealers be
liable for special or conseouentlai damages or from
any delay in the performances at this warranty due
to causes beyond their control.

DOD Electronics Corporation
5639 South Riley Lane, Salt Lake City, Utah 84107
Telephone (801) 26843400
FAX (801) 262-4966 Telex 4943178

INTERNATIONAL DISTRIBUTION:
DOD International
10 Cindy Drive, Nashua. NH 03062
Telephone (603) 888-5230
FAX (603) 888-6750 Telex 501187

Copyright (c) 1987 DOD Electronics Corporation

The specilrcations in this manual are subject
to change without notice.

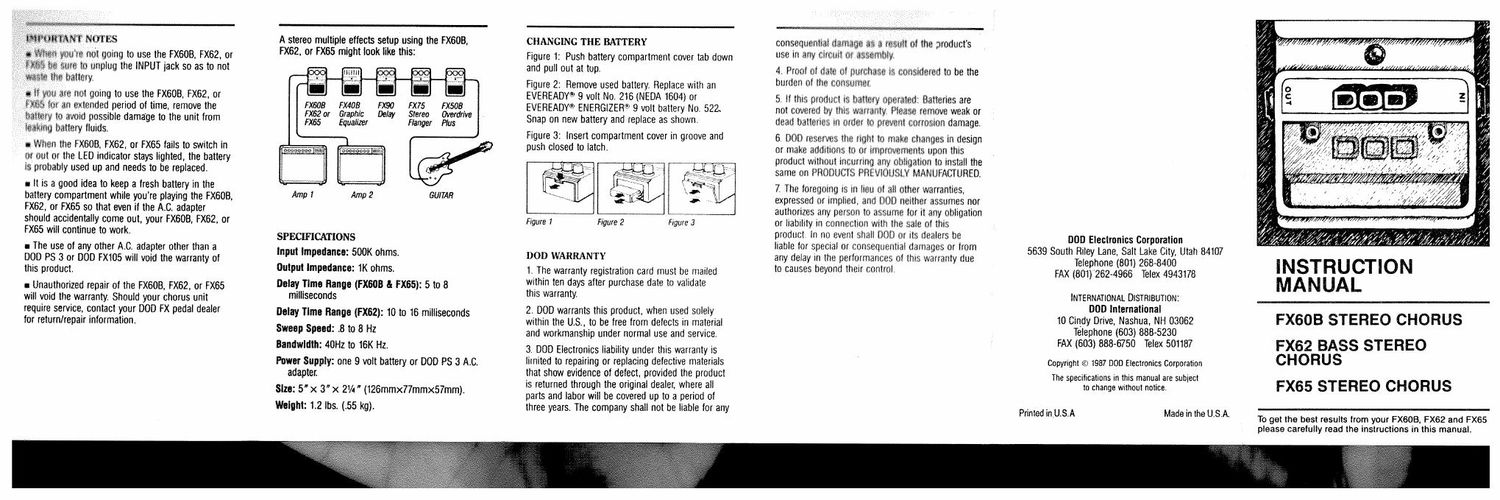

INSTRUCTION
MANUAL

FXGOB STEREO CHORUS

FX62 BASS STEREO
CHORUS

FX65 STEREO CHORUS

three years. The company shall not be liable for any Printed in USA Made in the USA

To get the best results Irom your FXSOB. FX62 and FX65
please carefully read the instructions in this manual.
