Dod fx 59 instruction manual

Page 1

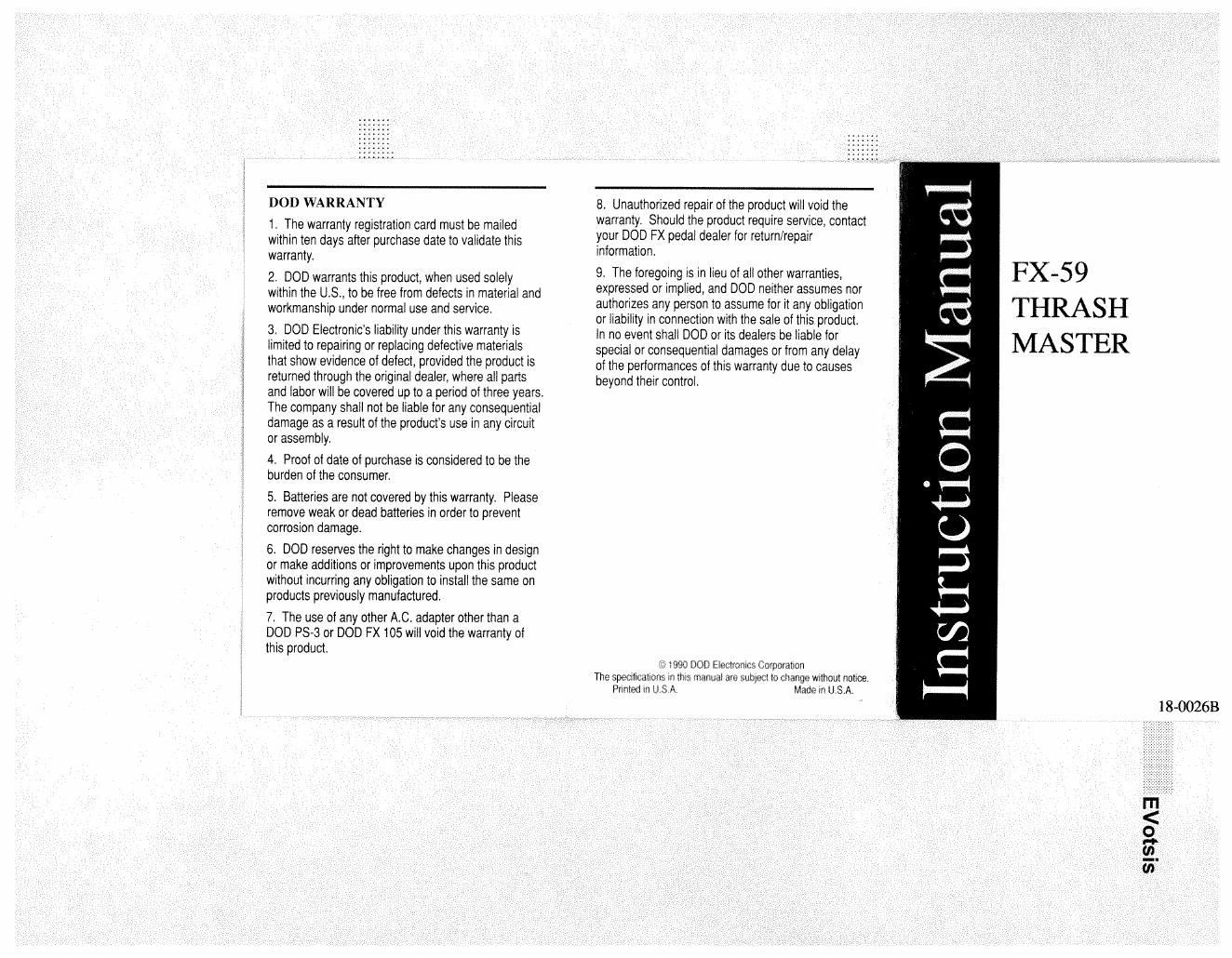

DOD WARRANTY

1. The warranty registration card must be mailed
within ten days after purchase date to validate this
warranty.

2. DOD warrants this product, when used solely
within the US. to be free from detects in material and
workmanship under normal use and service

3. DOD Electronics liability under this warranty is
limited to repairing or replacing detective materials
that show evidence of defect, provided the product is
returned through the original dealer, where all parts

and labor will be covered up to a period of three years.

The company shall not be liable for any consequential
damage as a result ol the products use in any circuit
or assembly.

4. Proof of date of purchase is considered to be the
burden of the consumer.

5. Batteries are not covered by this warranty. Please
remove weak or dead batteries in order to prevent
corrosion damage.

6. DOD reserves the right to make changes in design
or make additions or improvements upon this product
without incurring any obligation to install the same on
products previously manufactured.

7. The use of any other A.C. adapter other than a
DOD PS-S or DOD FX 105 will void the warranty of
this product.

8. Unauthorized repair of the product will void the
warranty. Should the product require service, contact
your DOD FX pedal dealer for return/repair
information.

9. The foregoing is in lieu of all other warranties.
expressed or implied. and DOD neither assumes nor
authorizes any person to assume for it any obligation
or liability in connection with the sale of this, product.
in no event shali DOD or its dealers be liable for
special or consequential damages or from any delay
of the pertormances of this warranty due to causes
beyond their control.

to" teen DOD Electronics Corporation

The specihcaiions in this manual are subject to change without notice.

Printed in USA Made in us A.

amped

Instruction Manual

FX-59
THRASH
MASTER

I 8 00268

"1
<
a:
(n

Page 2

The Ex 59 Thrash Master screams over the edge with
overwhelming distortion and super-edgy tone for
raging speed lreaks who only live for hyperspeed
solos and warpspeed beat. For dealers in death and
destruction only.

CONNECTING THE
FX 59 THRASH MASTER

Connect the lNPUT of the FX 59 to your guitar with a
1/4»inch mono phone plug. Connect the OUTPUT oi
the FX 59 to your amplifier (or to the input of other
ellects it you're using them) with a ti4-inch mono
phone plug. To eliminate the need tor a 9 volt batery,
attach either the DOD PS 3 or the DOD FX 105 power
supply to the 3.5 mm A.C. adapter lack.

AC Adapter

,_______...

oooooooo um

Amplltler FX59 nlmn Master Guflll

FEATURES

I FET switching for clickless insertion into the signal
path

I LED indicator shows the status of the effect and
battery condition

I No tools, easy access battery compartment

I Adapter jack for AC operation

I Rugged die cast metal case

I Three year limited warranty

I Rubber non~skid bottom

CONTROLS

LEVEL: Adjusts the level of the distorted signal
compared to the level 01 the dry" signal.
PRESENCE: Adjusts the level of treble added to the
distorted signal.

DISTORTION: Adjusts the level of distortion.
FOOTSWITCH: Switches the distortion effect lN/OUT
of the signal path.

LED lNDlCATOFt: Lights up when the distortion is
enabled.

JACKS: lNPUT. OUTPUT, AC. ADAPTER.

IMPORTANT NOTES

I Unplug input jack when not in use.
I LED will dim and distortion will be present when the
battery is depleted.

EFFECTS CHAIN

A stereo multiple eltects setup using the FX 59 might
look like this:

Equalizer Delay

Toosooeo "NH ooouaoca an]
Amplifier r Amplifier 2 Guitar
CHANGING THE BATTERY
-
k ,-
figure! Fing Prams

Figure 1: Push tab down and pull out at top
Figure 2: Remove battery and replace as shown
Figure 3: Insert cover in groove and push closed

Use Eveready© #2t 6 zinc or Eveready© #522
alkaline batteries.
