Dod fx 35 owner manual

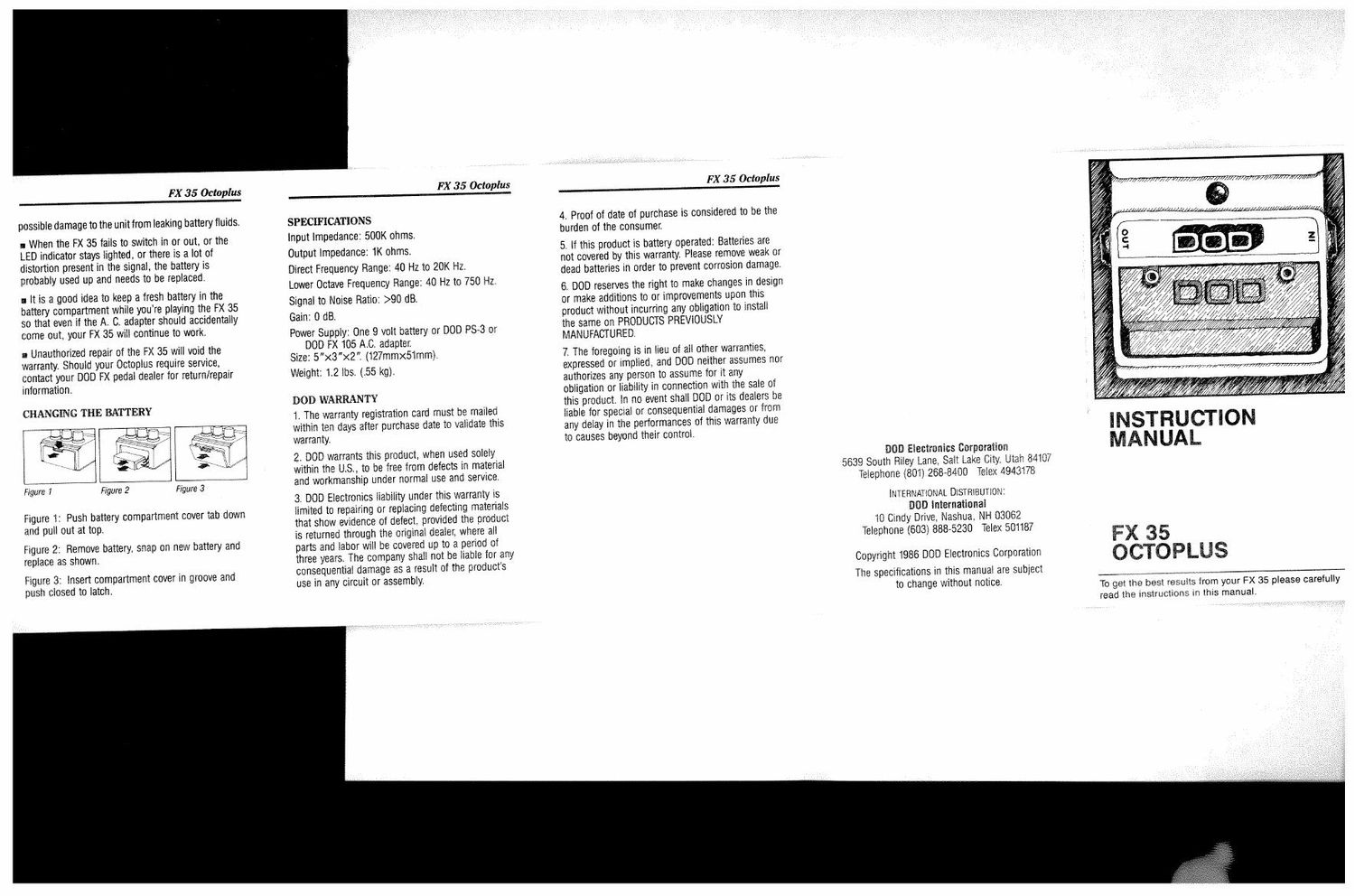

Page 1

FX 35 Octoplus

possible damage to the unittrom leaking battery fluids.

:- When the FX 35 tails to switch in or out» or the
LED indicator stays lighted. or there is a lot of
distortion present in the signal, the battery is
probably used up and needs to be replaced.

a it is a good idea to keep a fresh battery in the
battery compartment while youre playing the FX 35
so that even it the A. C. adapter should accidentally
come out. your FX 35 will continue to work.

in Unauthorized repair of the FX 35 will void the
warranty. Should your Octoplus require service,
contact your DOD FX pedal dealer for return/repair
information.

CHANGING THE BATTERY

i

l

L A

figure 1 Figure 2 Figure 3

Figure t: Push battery compartment cover tab down
and pull out at top,

Figure 2' Remove battery. snap on new battery and
replace as shown.

Figure 3: insert compartment cover in groove and
push closed to latch.

FX 35 Octoplus

SPECIFICATIONS

input impedance: 500K ohms.

Output impedance: iK ohms.

Direct Frequency Range: 40 Hz to 20K Hz.

Lower Octave Frequency Range: 40 Hz to 750 Hz.

Signal to Noise Ratio: >90 dB.

Gain: o 415.

Power Supply: One 9 volt battery or DOD PS-S or
DOD FX 105 A.C. adapter.

Size: 5"x3><2". (127mmx5tmm).

Weight: 1.2 lbs. (.55 kg),

DOD WARRANTY

i. The warranty registration card must be mailed
within ten days after purchase date to validate this
warranty.

2. DOD warrants this product. when used solely
within the U.S., to be free from defects in material
and workmanship under normal use and service.

3. DOD Electronics liability under this warranty is
limited to repairing or replacing detecting materials
that show evidence of defect, provided the producr
is returned through the original dealer, where all
parts and labor will be covered up to a period ot
three years. the company shall not be liable for any
consequential damage as a result of the products
use in any circuit or assembly.

FX 35 Octoplus

4. Proof of date of purchase is considered to be the
burden of the consumer

5, it this product is battery operated: Batteries are
not covered by this warranty. Please remove weak or
dead batteries in order to prevent corrosion damage.

6. DOD reserves the right to make changes in design

or make additions to or improvements upon this
product without incurring any obligation to install
the same on PRODUCTS iREVlOUSLY
tANUFACTURED.

7. The foregoing is in lieu of all other warranties,
expressed or implied. and D00 neither assumes nor
authorizes any person to assume for it any
obligation or liability in connection with the sale of
this product. in no event shall DOD or its dealers be
liable for special or consequential damages or from
any delay in the performances of this warranty due
to causes beyond their control.

BUD Electronics Corporation
5639 South Riley Lane, Salt Lake City. Utah Soil}?
Telephone (eon 268-8400 Telex 4943l78
lNTERtiAtidNAL Disreieurion:
DOD international
10 Cindy Drive. Nashua. Nil 03062
Telephone (603) 8886230 Telex 501187

Copyright 1986 DOD Electronics Corporation

The specifications in this manual are subject
to change without notice.

INSTRUCTION
MANUAL

FX 35
OCTOPLUS

To get the best re, or s irom your FX 35 please carelully
read the instructions in this manual.

Page 2

FX 35 Octoplus

WHAT THE FX 35 OCTOPLUS DOES

The Ex 35 Octoplus generates a signal one octave
below the input signal, allowing guitarists to play
bass lines or to fill out" or add body" to the sound.
(NOTE: The FX 35 is for playing single notes only.)

CONNECTING THE FX 35

Connect the lNPUT oi the FX 35 to your guitar (or to
the output of a compressor/sustainer if youre using
one) with a 1/: inch mono phone plug. To eliminate
the need for a 9 volt battery, attach either the DOD
PS-S or the DOD FX 105 power supply to the 3.5mm
AC. adapter jack.

AC Adapter
lonaaoc rm
Amplifier Instrument

IMPORTANT

A more stable octave tone may be achieved by using
the pick up farthest from the bridge of your guitar
Additional stability may also be achieved by the use

FX 35 Octoplus

of a compressor or sustainer, like the 000 FX 808.
between your instrument and the FX 35.

FEATURES

The EX 35 adds a lower octave signal to the original signal.
Single lines can be thickened or body added with a
careful mixing of the original signal (DlRECT LEVEL)
with the generated lower octave signal (OCTAVE
LEVEL). The TONE control modifies the sound or
only the lower octave signal, adiustable to your taste
tor a more oleasing sound.

The Ex 35 Octoplus also features:

I FET switching for "cllckless" insertion into the
signal path.

I LED indicator shows the status of the effect and
battery condition.

I No tools, easy access battery compartment.

I Adapter lack for A. C. operation

- Rugged die cast metal case.

I Three year limited warranty.

- Rubber nonuskid bottom.

CONTROLS

OCTAVE LEVEL: Adjusts the level of the generated
lower octave signal to the output. Turning the
OCTAVE LEVEL control clockwise 0 increases the
amount of the generated lower octave signal going
to the output. When the control is fully
counterclockwise none of the generated lower octave
signal is sent to the output,

FX 35 Octuplus

TONE: Modifies the tone or sound of only the
generated lower octave signal. When the TONE
control is straight up, the octave signal is
unchanged. Turning the TONE control clockwise O
boosts the upper frequencies of the octave signal.
and turning the TONE control counterclockwise O
boosts the lower frequencies of the octave signal.

DIRECT LEVEL: Adjusts the level of the input signal
allowed to pass through to the output. Turning the
DIRECT LEVEL control clockwise O increases the
amount at the original signal going to the output of
the FX 35. When the control is fully
counterclockwise none of the original signal is sent
to the output.

FOGT SWITCH: Switches the octave effect lN/OUT of
the signal path,

LED lNDlCATOFl: Lights on when the octave effect is
enabled.

JACKS: lNPUT. OUTPUT, AC. ADAPTER. (Use either
the DOD PS-S or DOD FX 105 power supply to
eliminate the need for batteries.)

OPERATION OF THE FX 35

The secret to making the FX 35 sound its best is to
keep the original signal and octave signal almost
equal in strength. Turning the DIRECT LEVEL control
clockwise 0 increases the amount of the original
signal going to the output of the FX 35, Turning the
OCTAVE LEVEL control clockwise O increases the

FX 35 Oclnplus

amount of the generated lower octave signal going
to the output. Adjust the OCTAVE LEVEL for the
amount of body you wish to add to the sound. With
these two controls the mix or the original signai and
octave signal is adjusted.

OCTAVE LEVEL toNE Dinect LEVEL

Using the FX 35 to add body to the sound

To play bass lines with the FX 35; turn the DIRECT
LEVEL control almost all the way clockwise O . so
that most or the original signal goes to the output:
and adiust the OCTAVE LEVEL control by turning it
all the way clockwise O . Adjust the TONE control
clockwise C) from the 12 oclock position, until the
desired sound of the lower octave tone is achieved.
The mix of the original signal adds brightness or
intelligibility to the line.

OCIAVE LEVEL You: DfRECT LEVEL

Using the FX 35 to play bass lines

FX 35 Cszfittm

A flanger or a chaser. like the DOD FX ?5 Stereo
Hanger or the DOD FX 208 Stereo Phasor. will and
increased tonal character to the sound of the FX 35.
Try different effects on the lower octave signal and
listen to the results. You may even want to try
splitting the original and the octave signal and
process each differently with different effects and
amps.

A stereo multiple effects setup using the FX 35
might look like this:

FX 65 FX 40 FX 5019 FX 35 FX 808
Stereo Graphic Overdrive Octoplus Compressor
Chorus Equalizer Plus llimilel

Amplifier ? Atom! 2 Gullah
IMPORTANT NOTES

- When youre not going to one the F): 35 be sure to
unplug the WW? jack so as not to cases the more

.- liver: are notcetttgioosethtltxatiiotao
extended period at time. some the cation: or we
