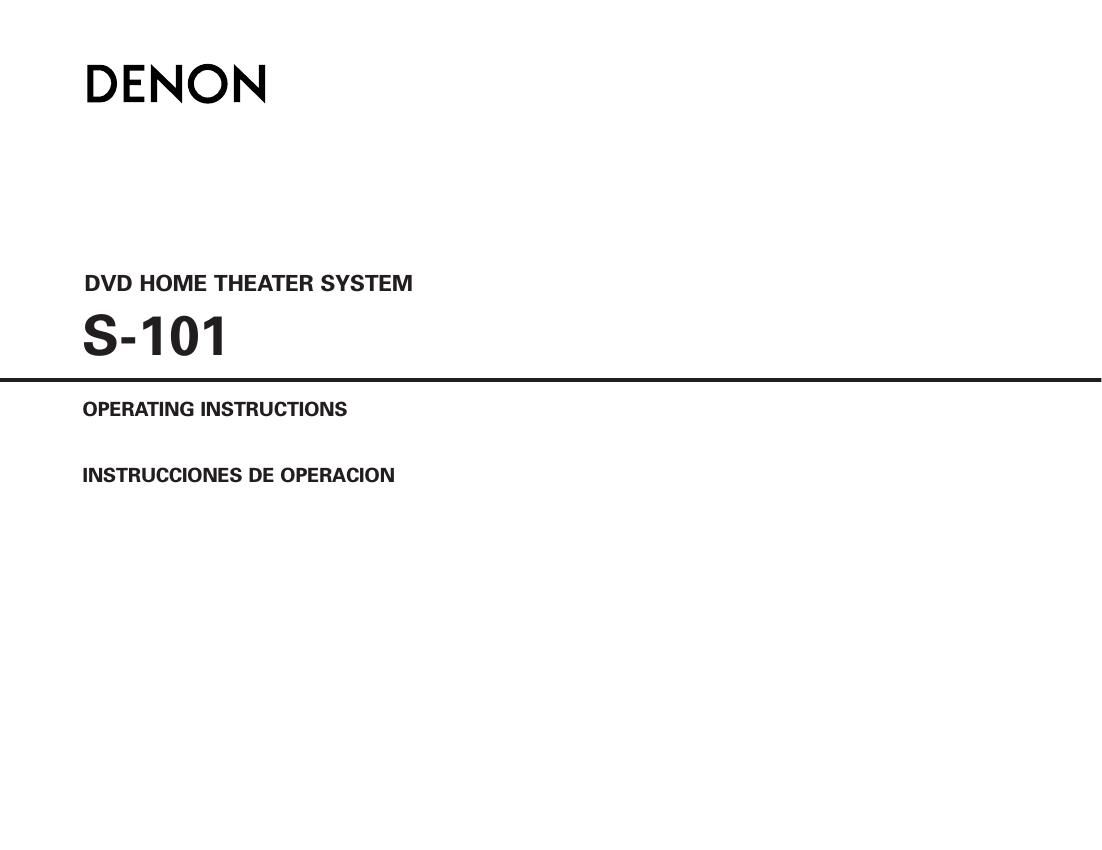

Denon S 101 Owners Manual
This is the 138 pages manual for Denon S 101 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Denon S 101 Owners Manual (Ocr-read)
Page 1
FCC INFORMATION (For US customers) 2 SAFETY PRECAUTIONS 1. PRODUCTThis product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this product may not caus\ e harmful interference, and (2) this product must accept any interferenc\ e received, including interference that may cause undesired operation. 2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modification not expressly approved by DENON may void your authority, granted by the FCC, to use the product. 3. NOTEThis product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio o\ r television reception, which can be determined by turning the product OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the product into an outlet on a circuit different from that to which the receiver is connected. - Consult the local retailer authorized to distribute this type of product or an experienced radio/TV technician for help. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PA RTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. W ARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. 1. Read Instructions – All the safety and operating instructions should \ be read before the product is operated. 2. Retain Instructions – The safety and operating instructions should be\ retained for future reference. 3. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to. 4. Follow Instructions – All operating and use instructions should be followed. 5. Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. 6. Attachments – Do not use attachments not recommended by the product manufacturer as they may cause hazards. 7. Water and Moisture – Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. 8. Accessories – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury\ to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturers instructions, and should use a mounting accessory recommended by the manufacturer. 9. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 10. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturers instructions have been adhered to. 11. Power Sources – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions. 12. Grounding or Polarization – This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way\ . This is a safety feature. If you are unable to insert the plug fully in\ to the outlet, try reversing the plug. If the plug should still fail to fi\ t, contact your electrician to replace your obsolete outlet. Do not defeat\ the safety purpose of the polarized plug. 13. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. 15. Outdoor Antenna Grounding – If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Cod\ e, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A. 16. Lightning – For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. 17. Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 18. Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or\ electric shock. 19. Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.\ Never spill liquid of any kind on the product. 20. Servicing – Do not attempt to service this product yourself as openin\ g or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 21. Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operatinginstructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance – this indicates a need for service. 22. Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 23. Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 24. Wall or Ceiling Mounting – The product should be mounted to a wall or ceiling only as recommended by the manufacturer. 25. Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. SAFETY INSTRUCTIONS FIGURE A EXAMPLE OF ANTENNA GROUNDING AS PER NATIONALELECTRICAL CODE ANTENNA LEAD IN WIRE GROUND CLAMP ELECTRIC SERVICE EQUIPMENT ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) NEC – NATIONAL ELECTRICAL CODE ENGLISH FRANCAIS ESPAÑOL
Page 2
2System setup menu / Menu de configuration système / Menú System Setup page 45 ~ 50 page 43, 44 page 45 page 50, 51page 51 ~ 53 page 53, 54 ENGLISH FRANCAIS ESPAÑOL
Page 49
47 ENGLISH System SetupSystem Setup ENGLISH When AUDIO DELAY is selected: Press the CURSOR - or ª button to select the desired setting item, then press the ENTER button. 3 -5 0 ~ 200mSEC (Factory default 0mSEC) : When watching a DVD or other video source, the picture on the monitor may seem delayed with respect to the sound. In this case, adjust the audio delay to delay the sound and synchronize it with the picture. The audio delay setting is stored separately for each input source. With a movie source, for example, adjust so that the movement of the actors lips is synchronized with the sound. The audio delay setting does not apply when playing in the analog input and stereo mode. (DIRECT ON) 4 Press the CURSOR ª button to select NEXT SETUP MENU, then press the ENTER to enter the setting. -The next screen in the SETUP menu screen appears. When COMPRESSION is selected: Press the CURSOR - or ª button to select the desired setting item, then press the ENTER button. 3 -4 OFF (Factory default): Set to OFF to turn this function off. LOW, MID, HIGH: This parameter adjusts the dynamic range of the Dolby Digital or DTS sound. When listening with the volume turned relatively low, at night for example, set this to the HIGH side to lower the peak of the sound and amplify the quieter sounds, narrowing the dynamic range and making the sound easier to listen to. With DTS source, only displayed for sources compatible with dynamic range compression. Setting CHANNEL LEVEL -Adjust so that the playback levels of the different channels are equal. -Make this adjustment by listening to the test tones output from the speakers at the listening position. Use the VOLUMEcontrol knob on the main unit or the VOLUME buttons on the remote control unit to adjust the volume of the test tone to a level at which it is easy to make this adjustment. 1 Press the CURSOR - or ª button to select SPEAKER SETUP at the AUDIO SETUP, then press the ENTER button. -The SPEAKER SETUP screen appears.
Page 99
ESPAÑOL 33 Funcionamiento básicoFuncionamiento básico ESPAÑOL Uso del menú HELP Es posible comprobar la función ajustada actualmente y cambiarla desde el OSD. 1 Pulse el botón HELP . -Aparecerá la pantalla del menú HELP. El elemento seleccionado se muestra en color azul claro. Las partes grises indican que el dispositivo de entrada correspondiente no está conectado. Pulse de nuevo el botón HELPpara desactivar la pantalla del menú HELP. CURSOR ENTER STATUS CURSOR ENTER HELP SLEEP Uso del temporizador de apagado automático Ajuste del reloj (indicación en formato de 12 horas) 1 Pulse el botón CURSOR - oª para seleccione SETUP en HELP del menú , y pulse el botón ENTER . -Aparecerá la pantalla del menú CONFIGURACIÓN. Asegúrese de ajustar el reloj a la hora correcta. El temporizador no operación si el reloj no ha sido ajustado. 2 Pulse el botón CURSOR 0o1para seleccionar el icono REGLADE DU TIMER, a continuación pulse el botón ENTER . -Aparecerá la pantalla del menú REGLADE DU TIMER. 3 Pulse el botón ENTER para introducir la configuración. -El modo HELP queda cancelado y se regresa a las funciones seleccionadas. 2 Pulse el botón CURSOR - oª para seleccionar el ítem de ajuste deseado y luego pulse el botón. -La opción seleccionada se visualiza de color azul. Ver DVD: Seleccione esta opción para reproducir DVD y Video CD. Escuchar CD: Seleccione esta opción para reproducir un CD de música. CD MP3/WMA/JPEG: Seleccione esta opción para reproducir un disco MP3, WMA o JPEG. Escuchar radio: Utilice esto para ajustar la función como TUNER. iPod música/foto: Seleccione esta opción para controlar el iPod conectado al conector de iPod del panel delantero de la unidad ADV-S101s. Música portable (entrada frontal): Seleccione esta opción para emitir las señales del reproductor portátil de audio conectado a la toma portátil del panel delantero de la unidad ADV-S101s. Ver AUX-1: Seleccione esta opción para visualizar la imagen del dispositivo externo conectado al terminal AUX1. Ver AUX-2: Seleccione esta opción para visualizar la imagen del dispositivo externo conectado al terminal AUX2. Escuchar AUX-3: Seleccione esta opción para escuchar el sonido del componente de audio conectado al terminal AUX3. Configuración: Seleccione esta opción para realizar cambios en la configuración del sistema.
