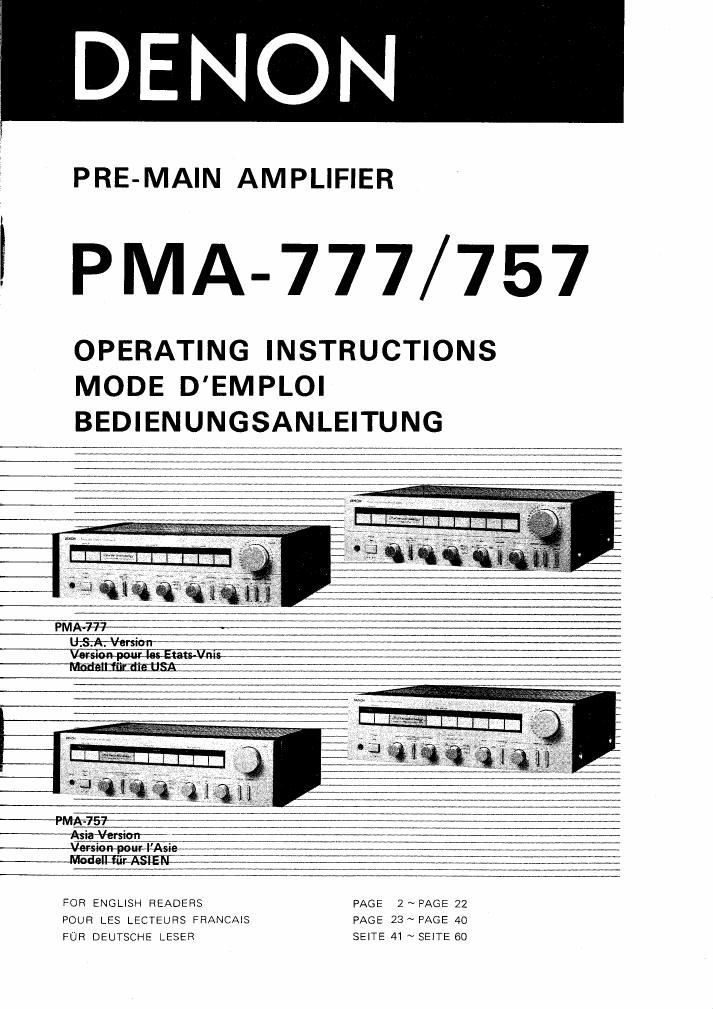

PRE-MAIN AM PLIFIER

f PMA-777/757

OPERATING INSTRUCTIONS
MODE DEMPLOI
BEDIENUNGSANLEITUNG

FOR ENGLISH READERS PAGE 2~ PAGE 22
POUR LES LECTEURS FRANCAIS PAGE 23~PAGE 4O
FUR DEUTSCHE LESER SEITE 41 ~ SEITE 6O

Page 2

In order to obtain optimum performance from this amplifier, please read this instruction manual thorough-
ly before use. Please keep this instruction manual for reference in case you have further questions or
problems

CAUTION
RISK OF ELECTRIC'SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER SERVIC-
ING TO QUALIFIED SERVICE PERSONNEL.

tude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert
the user of the presence of important operating and maintenance (servic-

The lightning flash with arrowhead symbol within an equilateral'triangle
is intended to alert the user of the presence of uninsuiated "dangerous
voltage" within the product's enclosure that may be of sufficient magni-
A ing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE DR SHOCK HAZARD, DO NOT EXPDSE THIS
APPLIANCE TO RAIN OR MOISTURE.

"SERIAL NO.
PLEASE RECORD UNIT SERIAL NUMBER ATTACHED TO THE REAR OF THE
CABINET FOR FUTURE REFERENCE"

_2_

Page 18

OVERALL CHARACTERISTICS
SN Ratio (IHFA Network): PHONO MM 87 dB (input terminals short-circuited for
2.5 mV input)
MC 70 dB (input terminals shortcircuited for
250 [N input)
TUNER, TAPE, DAD, VIDEO/AUX:
110 dB (input terminals short-circuited)

Tone Control Adjustable Range: BASS 100 Hz :8 dB
TREBLE 10 kHz :8 dB
Filtering Characteristics: SUBSONIC 20 Hz, 6 dB/oct
Loudness Characteristics: Low frequency 100 Hz + 7 dB
High frequency 10 kHz + 6 dB
Ac OUTLET: SWITCHED x2,100W (Total)
(For U.S.A., Canada and Asia) UNSWITCH ED x 1, 250 w
POWER SOURCE: Germany and France AC 220 V, 50 HZ; UK. and Australia
AC 240 V, 50 H2: U.S.A: and Canada AC 120 V, 60 HZ;
Asia 110/120/220/240 V, 50/60 Hz (Multiple)
POWER CONSUMPTION: 215 W (U.S.A.); 420 VA (Canada); 240 W (IEC);
190 W (Multiple); 650 W Maximum Output
DIMENSIONS: 470 mm (18-1/2)Wx 136 mm (5-11/32)H x

413 mm (161/4)D (WithVWood Board)
434 mm (17-5/64")Wx 136 mm (5~11/32)H x
413 mm (16-1/ ")D (without Wood Board)
(including rubber feet, control knobs, and terminals.)
WEIGHT: 13 kg (28 lbs 11 02) (with Wood Board)
12 kg (26 lbs 7 02) (without Wood Board)
10.5 kg (23 lbs 2 02) (without Wood Board) (For U.S.A. & Canada)

Design and specifications are subject to change without prior notice.

-18-
