Denon PMA 710AE Brochure

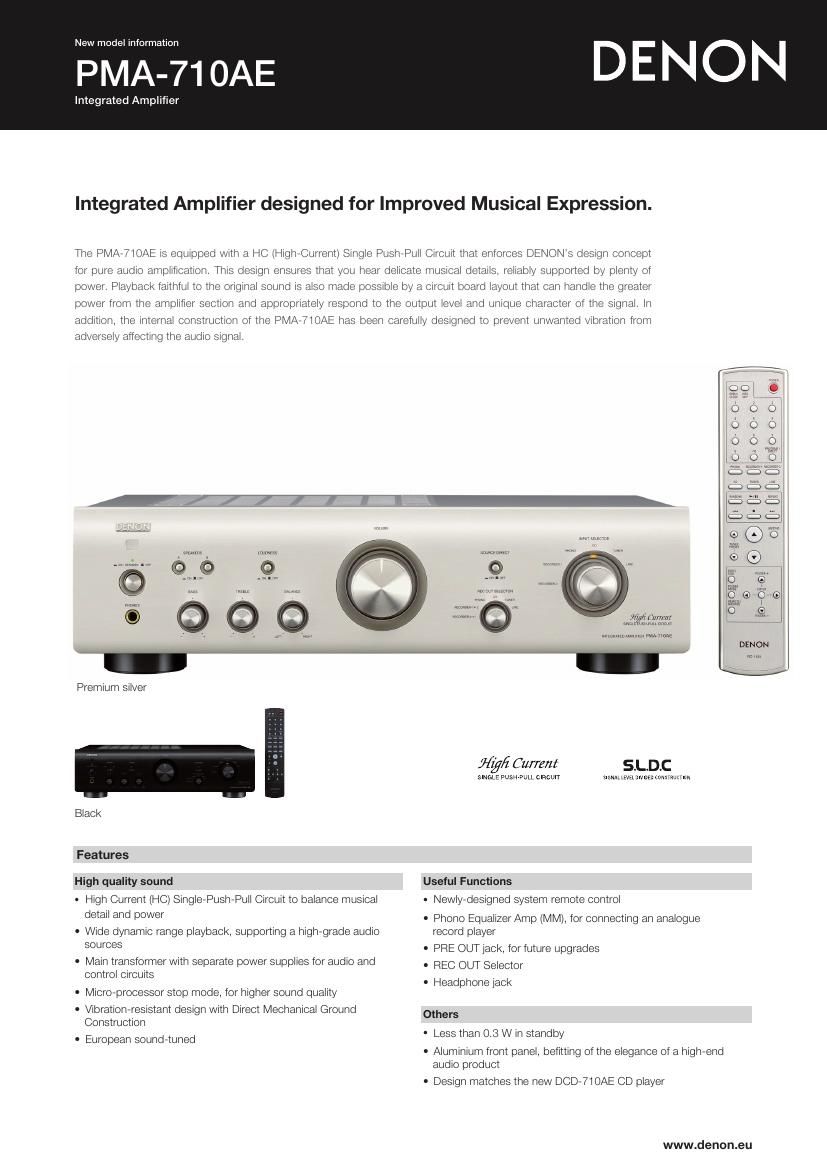

Page 1

New model information

PMA-710AE

Integrated Amplifier

Integrated Amplifier designed for Improved Musical Expression.

The PMAJIOAE is equipped With a HG [HighrCurrentl Single PushrPull Circuit that enforces DENONs design concept
for pure audio amplification. This design ensures that you hear delicate musical details. reliably supported by plenty of
power Playback faithful to the original sound is also made possible by a cichit board layout that can handle the greater
power from the amplifier section and appropriately respond to the output level and unique character of the signal. In
addlthll the internal construction of the PMAJlOAE has been carefully designed to prevent unwanted Vibration from

adversely affecting the audio signal

6'"i¢ o

Premium silver

Black

Features

High quality sound
- High Current (HC) Single-Push-Pull Circuit to balance musical
detail and power

0 Wide dynamic range playback, supporting a high-grade audio
sources

0 Main transformer With separate power supplies for audio and
control Circuits

- Micro-processor stop mode, for higher sound quality

- Vibration-resistant design with Direct Mechanical Ground
Construction

0 European sound-tuned

waif [mm/r

.vmtimwa m w m

flyfl Current

SlNGLE Puswuuciacuir

S.L.D.C

SlENAttEVEt )lVlDEK communion

Useful Functions
- Newly-deSigned system remote control

- Phono Equalizer Amp (MM), for connecting an analogue
record player

- PRE OUTiack, for future upgrades
- REC OUT Selector
- Headphone lack

Others
- Less than 0.3 W in standby

- Aluminium front panel, befitting of the elegance of a high-end
audio product

0 Design matches the new DOD-71 OAE CD player

www.denon.eu

Page 2

High quality sound

High Current tHC) Single-Push-Pull Circuit for
musical detail and power

The PMAJiOAE incorporates HC transistors With
2 to 3 times the electrical current supply capability
of conventional power transistors for audio.
DENONs acclaimed HC SinglerPushrPull Circuit
has been inherited from its highrend models which.
together With a fully discrete amplifier design. pro
duces a powerful sound filled with beautiful musical
details.

High-speed, high-capacity power supply
circuit for HC Single-Push-Pull

The PMAV710AE's power circuit uses a block capar
citor that DENON engineers have jointly developed
With a parts manufacturer and a Schottkyrbarrier
diode that features loW internal resistance for low
loss, short recovery time, and negligible rectifying
noise. This highly stable electrical current supply
further brings out the expressive power of sound
produced by the HC SinglerPushrPull Circuit

Wide dynamic range, supporting high-grade
audio sources

The PMAJT OAEs tone control and poWer amplifier
circuit have been carefully adjusted to secure a
frequency response of up to 100 kHz during actual
use Also, improvements in the volume circuit supr
press noise in the amplifier to achieve high sonic
resolution These features and others give the
PMAr7tOAE plenty of latitude to handle the wide
dynamic range of highrgrade audio sources such
as BD. Super Audio CD and DVDrAudio.

Main transformer with separate power

supplies for audio and control circuits

The main power transformer has separate coiled
Wires for the audio and control circuits The sepa
rate poWer supplies and divided circuitn/ layout
Work together to eliminate mutual interference and
thoroughly preserve sound quality.

Micro-processor stop mode, for higher sound
quality

The Microprocessor Stop Mode automatically stops
all operations of the microprocessor When it is not
needed during playback. By stopping the oscillar
tion of the microprocessors clock during normal
listening, the audio signal is protected from noise
and the quality of sound is improved.

Vibration-resistant design with

Direct Mechanical Ground Construction

The power transformers. themselves a source of
vibration, have been placed near the base of the
unit and immediately above the insulators to alloW
direct dissipation of unwanted vibrations, minimizh
ing propagation through the unit.

ieoge Without "otice
erria'k ot DKM Hold rigs ine

S.L.D.C. (Signal Level Divided Construction),

a layout design for optimum response to signal
level and character

The layout of the PMAV7TOAEs circuitry has been
divided into a phono circuit, preramp circuit, and
power amp circuit in accordance wrth signal level to
suppress mutual inference betWeen circuits. Signal
paths have also been made as short as possible to
minimize signal degradation and ensure a beautir
fully clear playback sound.

"Source Direct" function - for clean, pure audio
playback (simple 8t straight signal)

The PMAJtOAE includes a Source Direct function
that allows the audio signal to bypass the Bass,
Treble, Loudness, and Balance control circuits and
maintain its purity for optimum sound transparr
ency during playback. This Source Direct function
works for all inputs.

Every detail of the design devoted to
high-quality sound

The relay sWitch used for CD and Phono input
contains an inert gas to prevent the occurrence
of noise that can negatively affect the signal. In
addition, highly durable parts strictly selected for
their contribution to sound quality. such as the
largercapacity block capacitor for the power sup
ply circuit, highrquality sound carbon resistors, and
highrquallty sound capacitors, are also used. Each
individual part employed in configuring the circuits
reflects this emphasis on high sound quality

Useful Functions

Newly-designed remote unit

The PMAV710AE's system remote controls the
main volume, function sWitching, muting, and re
mote power on/off (linked With an AC outlet). The
system remote also controls DENON CD players
and tuners.

PRE OUT jack, for future upgrades

The PMAJTOAE is equipped With a PRE OUT Jack
that allows the connection of a highroutput power
amplifier or subwoofer in future system upgrades,

REC OUT Selector

The PMAJT OAEs REC OUT Selector function lets
the system perform recording operations such as
from CD to a recorder While listening to a record

Others

. Speaker A / B switches
- Front panel layout, designed for ease of use

- Integration with the new DCD-71OAE's
remote control unit

Main Specifications

Power amplifier section
Rated output 50 W + 50 W
is ohms 20 Hz . 20 kHz, THD new
as w + as W

{4 ohms 1 kHz. THD a 7%)

Total harmonic distortion 0 01% isehins. 1 kHz)

Preamplifier section
Phono eQualizer
rateo output

lnput sensitivity»

150 mV (REC out terminal]

impedance
Line 105 mV/47 kohms
tseuice Direct. OFF)
Phano 2 5 nivw kohms
RlAA deviatluii
Phono 20 Hz . 20 th 10 5 ea
SignalrtOrnoisc ratio
(lHF A nctworki
une 107 as isouice Dircct OFF)
Phono NM) 85 ea [input terminals shorted,

input signal 5 WV)
Tone controls

Bass mo Hz. :8 do
Treble to kHz. :3 ea
General

Powersupply Ac 230 v. 50 Hz

200W
(Standby: loss than 0.3 W]
434 x i2i x807 mm

Power consumption

Dimensions (W x H x Di

Weight 6.7 kg

Ports

In Phono (MM) x 1
cm x 1
Tuner x 1
Line x i
Recorderri (Playback) xi
Recorder? (Playback) x 1

Out Recorderri (REC) xi
Recorder? (REC) x i
Prcout x 1

Other Ac outlet x a

Complimentary Products

DPVZOOUSB
Fully automatic record player

TUrl SOODAB
DAB/FMeRDS/AM Radio Tuner

ciéo'c
on

. .

DCDV7T OAE
CDrPlayer

DEMON UK
Divis uri oi Dari/i AuleVisudi Ltd

Moorbrdge House Padbury Oaks 579 Eath nooo
Loiigord

Middlesex

uar DEW

www dE"Uli co uk

www.denon.eu
