Denon DVM 715S Brochure

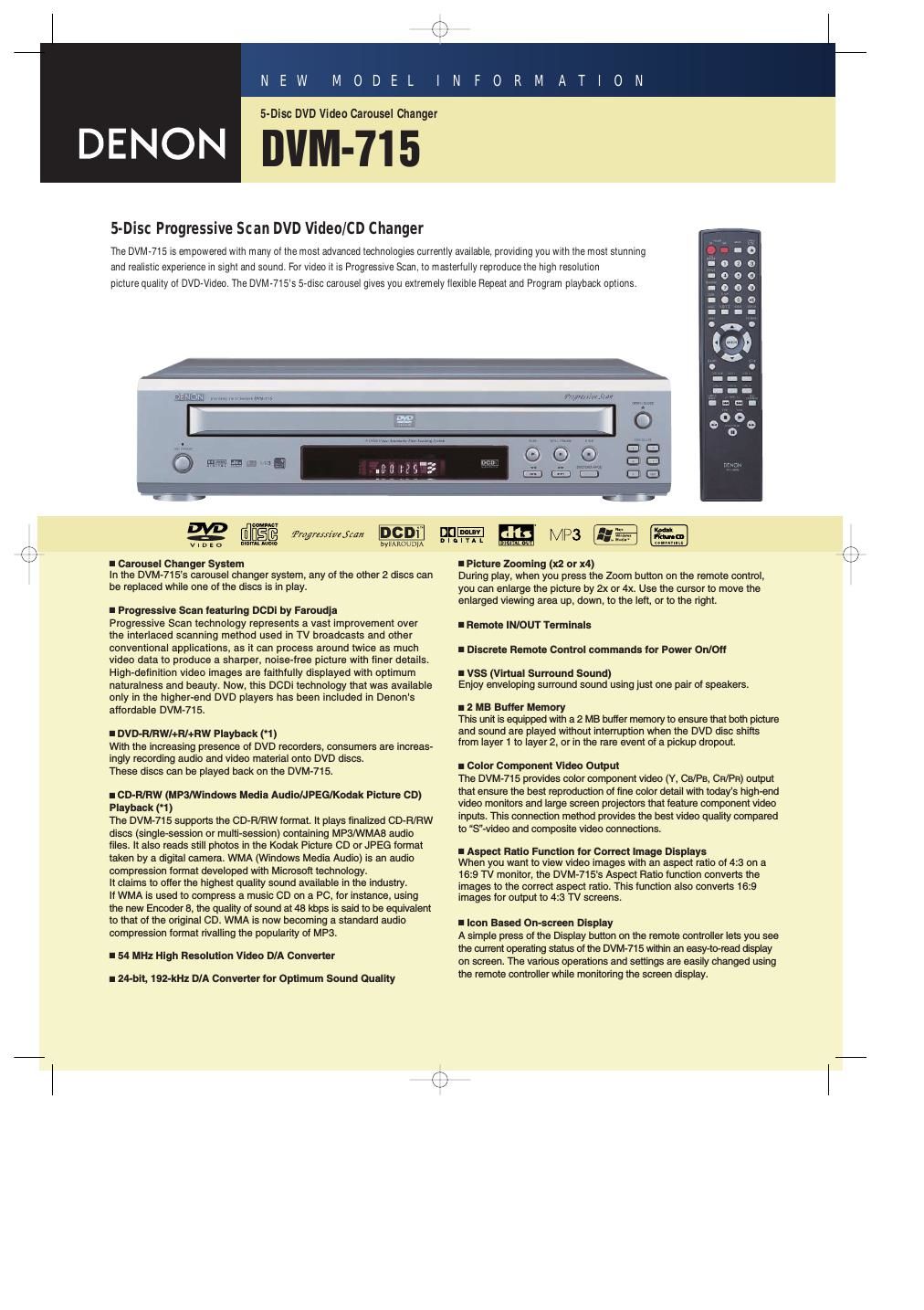

Page 1

Fluorescent Display to Easily Distinguish Discs With the DVM-715, the display on the front panel indicates whet her a loaded disc is a CD or a DVD so that you easily can monitor the kinds of discs that are loaded. 24/96 PCM Digital Output Capability PCM, Dolby Digital and DTS Digital Output Auto Power OFF (*1): Discs that have been poorly finalized following recording may be\ only partially playable or not playable at all. SpecificationsVideo Section Signal system .............................. NTSC Disc played DVD Video, Music CD, CD-R/RW (Audio/MP3/WMA/JPEG), DVD-R (Video Mode), DVD-RW (Video mode/Video Recording Mode) DVD+R/+RW Video outputs ............................... 1 set of Composite video output 1 set of S-Video output 1 set of Component video output Composite output level ................. 1 Vp-p (75 ohms) S-video output level ...................... Y output: 1 Vp-p (75 ohms) C output: 0.286 Vp-p Component video output level ...... Y output: 1 Vp-p (75 ohms) C B/PBoutput: 0.7 Vp-p (75 ohms) C R/PRoutput: 0.7 Vp-p (75 ohms) Audio Section Audio outputs ............................... 1 set of Analog output (L/R) 1 set of Optical digital output 1 set of Coaxial digital output Audio output level ......................... 2 Vrms (1 kHz, 0 dB) CD audio Frequency response..................... 4 Hz - 20 kHz Signal-to-noise ratio ..................... 115 dB Dynamic range ............................. 98 dB Total harmonic distortion .............. 0.003 % General Power supply ................................ AC 120 V, 60 Hz Power consumption ...................... 11 W Dimensions................................... 435 (W) x 104 (H) x 363 (D) mm 17.1 (W) x 4.1 (H) x 14.4 (D) Weight .......................................... 4.6 kg, 9.48 lbs MODEL I N F O R M A T I O N DVM-715 * Design and specifications are subject to change without notice. * Dolby, Dolby Digital, Pro Logic, and the doubl\ e-D device are registered trademarks of Dolby Laboratories Licensing Cor\ poration. * dts is a registered trademark of dts Technology. * DCDi™ is a trademark of Faroudja, a division of Genesis Mic\ rochip Inc. * WMA (Windows Media Audio) is a new audio codec developed by \ Microsoft ®in the United States of America. * Kodak is a trademark of Eastman Kodak Company. DENON ELECTRONICS (USA), INC. 19C CHAPIN ROAD, SUITE 205, PINE BROOK, NJ 07058-9385 USA TEL: 973-396-0810 www.usa.denon.com DENON, LTD. KAYABACHO TOWER 14F, 1-21-2 SHINKAWA, CHUO-KU, TOKYO 104-0033, JAPAN 16141004 A
