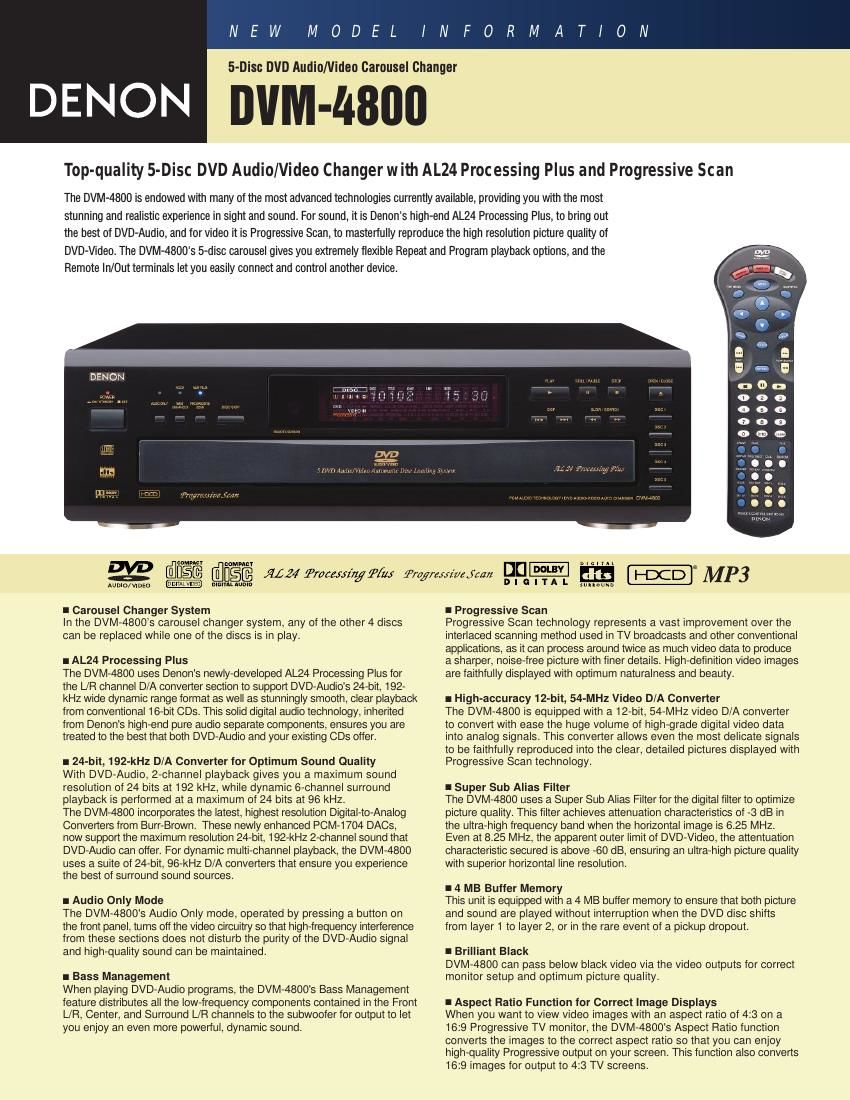

Denon DVM 4800 Brochure

Page 1

nWide Selection of Playback Options 1) Program Play; Program Play lets you play up to 32 tracks without interruption from any or all of the CD or DVD-Audio discs that you have loaded. (Program Play does not work with DVD-Video discs.) 2) Repeat Play; A variety of Repeat Play functions are available for CD, DVD-Video, and DVD-Audio discs. They are as follows: For CD: Repeat Track, Repeat 1 Disc, Repeat All Discs, Repeat CD Discs For DVD-Video: Repeat Chapter, Repeat Title, Repeat All Discs, Repeat DVD-V Discs For DVD-Audio: Repeat Track, Repeat Group, Repeat All Discs, Repeat DVD-A Discs 3) Random Play; Random Play is possible with CD and DVD-Audio discs, playing one disc at a time. For example, if a CD is loaded in Tray 1 and a DVD-Audio disc is in Tray 2 and Tray 2 is random selected first, Random Playplays all the tracks of that disc at random. When it finishes Tray 2, it random plays the disc in Tray 1. (Random Play does not work with DVD-Video discs.) nFluorescent Display to Easily Distinguish Discs With the DVM-4800, the display on the front panel indicates whether a loaded disc is a CD or a DVD so that you easily can monitor the kinds of discs that are loaded. nHDCD Decoder HDCD is a digital recording technology, compatible with the conventional CD format, that significantly reduces distortion during recording to expand the dynamic range and realize high resolution. The HDCD decoder allows the DVM-4800 to play discs that have been recorded inHDCD format and to bring out the superior sonic performance from these discs. Combined with DENON's advanced audio technology, the DVM-4800 masterfully reproduces HDCD's rich dynamic range and beautiful sound quality. nVirtual Surround Sound Surround yourself with sensational 3D soundfield envelopment using just one pair of speakers. The DVM-4800's Virtual Surround mode provides a dramatic psychoacoustic surround sound effect, using two speakerswith Dolby Digital, DTS, MPEG, LPCM, 2-channel or over recorded sources. nCD-R/RW (audio/MP3) Playback(*2) Both CD-R and CD-RW discs can be played in the DVM-4800. *2: Discs that have been poorly finalized following recording may be only partially playable or not playable at all. nBuilt-in Dolby Digital, DTS and DVD-Audio Decoders nOn-screen Display A simple press of the Display button on the remote controller lets you see the current operating status of the DVM-4800 within an easy-to-read display on screen. The various operations and settings are easily changed using the remote controller while monitoring the screen display. nClosed Caption Provides on-screen closed captioning, similar to TV broadcasts, with DVDs that are closed caption encoded. nRemote IN/OUT Terminals nAuto Power OFF MODEL INFORMATION DVM-4800 SpecificationsnVideo Section Signal system .............................. NTSC Disc played ................................. DVD Audio, DVD Video, Video CD, Music CD, CD-R/RW (audio/MP3) Video outputs ............................... 2 sets of Composite video output 2 sets of S-Video output 1 set of Component video output Composite output level ................. 1 Vp-p (75 ohms) S-video output level ...................... Y output: 1 Vp-p (75 ohms) C output: 0.286 Vp-p Component video output level ...... Y output: 1 Vp-p (75 ohms) C B/PBoutput: 0.648 Vp-p (75 ohms) C R/PRoutput: 0.648 Vp-p (75 ohms) nAudio Section Audio outputs ............................... 1 set of Analog output (L/R) 1 set of 5.1-ch Analog output 1 set of Optical digital output 1 set of Coaxial digital output Audio output level ......................... 2 Vrms (1 kHz, 0 dB) DVD linear audio Frequency response................... 2 Hz - 22 kHz/48 kHz sampling 2 Hz - 44 kHz/96 kHz sampling 2 Hz - 88 kHz/192 kHz sampling CD audio Frequency response................... 2 Hz - 20 kHz/44.1 kHz sampling Signal-to-noise ratio ..................... 115 dB (CD/DVD) Dynamic range ............................. 100/108 dB (CD/DVD) Total harmonic distortion .............. 0.0030/0.0025 % (CD/DVD) nGeneral Power supply ................................ AC 120 V, 60 Hz Power consumption ...................... 22 W Dimensions................................... 434 (W) x 131 (H) x 415 (D) mm 17.1Ó (W) x 5.2Ó (H) x 16.3Ó (D) Weight .......................................... 7.2 kg, 15.9 lbs *Design and specifications are subject to change without notice. *ÒDolbyÓ, ÒDolby DigitalÓ, ÒPro LogicÓ, and the double-D device are registered trademarks of Dolby Laboratories Licensing Corporation. *DTS is registered trademarks of DTS Technology. DENON ELECTRONICSNIPPON COLUMBIA CO., LTD. DIVISION OF DENON CORPORATION (USA)3-16-11, YUSHIMA, BUNKYO-KU, TOKYO 113-0034, JAPAN 19 CHAPIN ROAD, P.O. BOX 867, PINE BROOK, NJ 07058-9777, USA TEL: 973-396-0810 www.denon.com DENON CANADA INC. 17 DENISON STREET, MARKHAM ONTARIO, CANADA L3R 1B5 TEL: 905-475-4085 www.denon.ca 12670801 A Printed in Singapore
