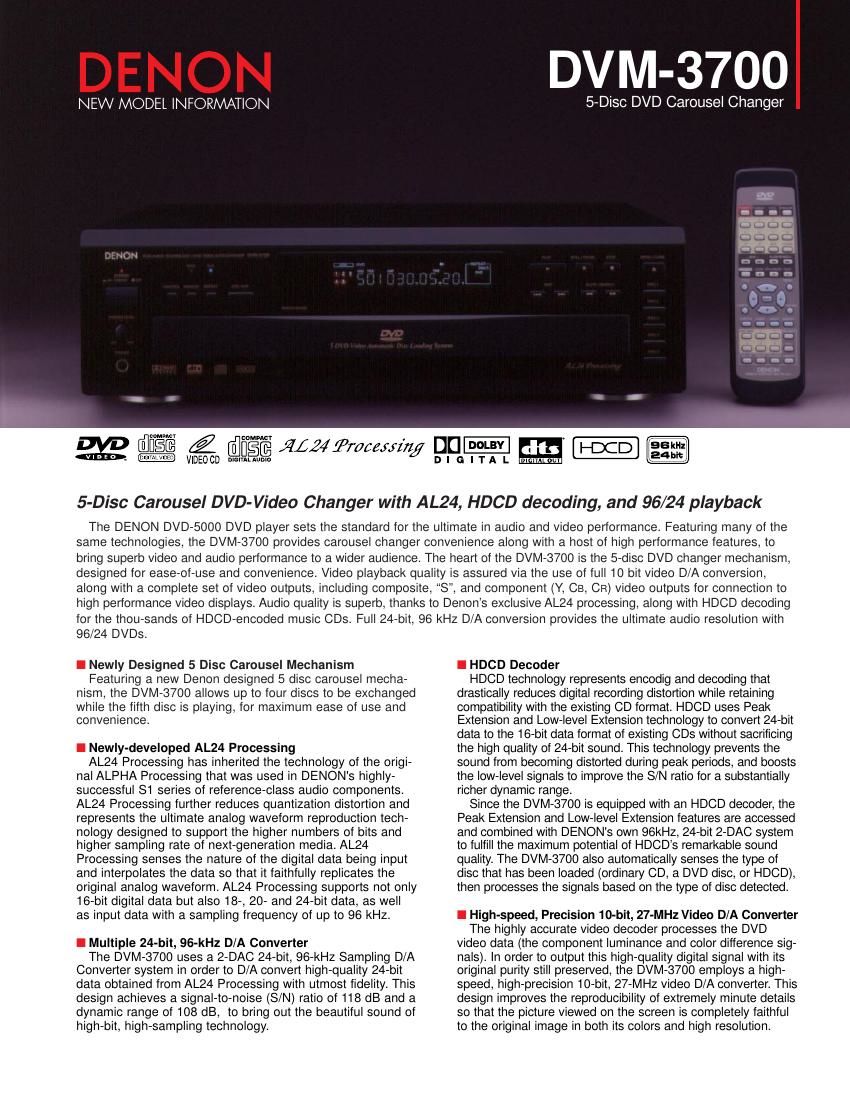

Denon DVM 3700 Brochure

Page 1

*Design and specifications are subject to change without notice. *ÓDolbyÓ, ÒDolby DigitalÓ, ÒPro LogicÓ, and the double-D device are registered trademarks of Dolby Laboratories Licensing Corporation. *DTS is registered trademarks of DTS Technology. n100 CD Changer Control Connect the DVM-3700 to DenonÕs 100 disc CD changers (DCM-5000/5001) and the DVM-3700 can control them easily. nFive Video Outputs 2 Composite video outputs, 2 ÒSÓ video outputs, and 1 set of component video outputs are provided, allowing easy integra- tion into virtually any home theater system. nPCM, Dolby Digital and DTS Digital Output Both coaxial and optical digital outputs are provided. nPicture Mode In addition to the Normal mode, the Picture Mode function also provides Soft, Fine, and Cinema modes. Soft mode pro- duces a soft picture, Fine mode produces a picture of high con- trast emphasizing the curved lines, and Cinema mode gives you a picture quality well suited to the atmosphere of movie viewing. nCinema Position Selector Optimizes the picture quality according to the specific type of display device. (Standard / CRT Projector / LCD Projector / Projection TV) nClosed Caption Provides on-screen closed captioning, similar to TV broad- casts, with DVDs that are closed caption encoded. nVirtual Surround Sound Specifications Video Section Signal system ................. NTSC Disc played ..................... DVD Video Disc, Video CD, Music CD Video outputs ................... 2 Composite Video Outputs 2 S-Video Outputs Component Output Composite output level .... 1 Vp-p (75 ohms) S-video output level ......... Y output: 1 Vp-p (75 ohms) C output: 0.286 Vp-p Component output level... Y output: 1 Vp-p (75 ohms) Cb output: 0.648 Vp-p (75 ohms) Cr output: 0.648 Vp-p (75 ohms) Audio Section Audio outputs ................... 2 Analog Ouputs (2-ch) Optical Digital Output (Dolby Digital / DTS / Linear PCM) Coaxial Digital Output(Dolby Digital / DTS / Linear PCM) Audio output level ............ 2 Vrms (1 kHz, 0 dB) DVD linear audio Frequency response ...... 2 Hz - 22 kHz / 48 kHz sampling 2 Hz - 44 kHz / 96 kHz sampling Signal-to-noise ratio....... 115 dB Dynamic range .............. 108 dB Total harmonic distortion ..0.0025% CD audio Frequency response ...... 2 Hz - 20 kHz / 44.1 kHz sampling Signal-to-noise ratio....... 115 dB Dynamic range .............. 100 dB Total harmonic distortion ..0.0030% General Power supply ................... AC 120 V, 60 Hz Dimensions ...................... 434 (W) x 135 (H) x 430 (D) mm 17.1Ó (W) x 5.3Ó (H) x 16.9Ó (D) Weight .............................. 9.1 kg, 20.1 lbs DENON ELECTRONICS.NIPPON COLUMBIA CO., LTD. DIVISION OF DENON CORPORATION (USA)14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-8011, JAPAN 222 NEW ROAD, PARSIPPANY, NEW JERSEY 07054, USA http://www.denon.co.jp TEL: 973-396-0810 www.del.denon.com DENON CANADA INC. 17 DENISON STREET, MARKHAM ONTARIO, CANADA L3R 1B5 TEL: 905-475-4085 11820899 A Printed in Japan
