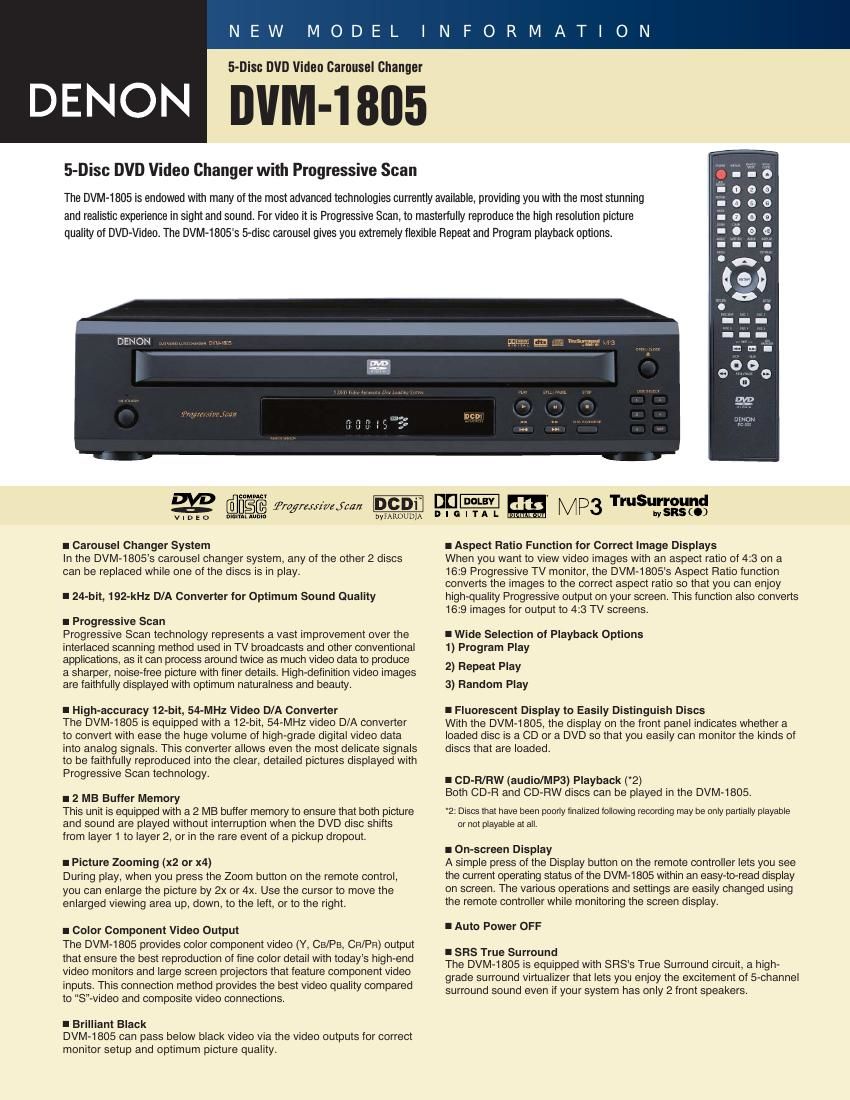

Denon DVM 1805 Brochure

Page 1

Specifications■Video Section Signal system .............................. NTSC Disc played ................................. DVD Video, Music CD, CD-R/RW (audio/MP3) Video outputs ............................... 1 set of Composite video output 1 set of S-Video output 1 set of Component video output Composite output level ................. 1 Vp-p (75 ohms) S-video output level ...................... Y output: 1 Vp-p (75 ohms) C output: 0.286 Vp-p Component video output level ...... Y output: 1 Vp-p (75 ohms) C B/PBoutput: 0.7 Vp-p (75 ohms) C R/PRoutput: 0.7 Vp-p (75 ohms) ■Audio Section Audio outputs ............................... 1 set of Analog output (L/R) 1 set of Optical digital output 1 set of Coaxial digital output Audio output level ......................... 2 Vrms (1 kHz, 0 dB) CD audio Frequency response..................... 20 Hz - 20 kHz Signal-to-noise ratio ..................... 110 dB Dynamic range ............................. 94 dB Total harmonic distortion .............. 0.005 % ■General Power supply ................................ AC 120 V, 60 Hz Power consumption ...................... 11 W Dimensions................................... 435 (W) x 104 (H) x 363 (D) mm 17.1 (W) x 4.1 (H) x 14.4 (D) Weight .......................................... 4.6 kg, 9.48 lbs MODEL INFORMATION DVM-1805 * Design and specifications are subject to change without notice. * Dolby, Dolby Digital, Pro Logic, and the doubl\ e-D device are registered trademarks of Dolby Laboratories Licensing Cor\ poration. * DTS is registered trademarks of DTS Technology. DENON ELECTRONICS (USA), INC. 19 CHAPIN ROAD, P.O. BOX 867, PINE BROOK, NJ 07058-9777 USA TEL: 973-396-0810 www.usa denon.com DENON CANADA INC. 505 APPLE CREEK BLVD. UNIT 5 MARKHAM, ONTARIO L3R 5B1 CANADA TEL: 905-475-4085 www denon.ca DENON, LTD. 3-16-11 YUSHIMA, BUNKYO-KU, TOKYO 113-0034 JAPAN 12980602 A
