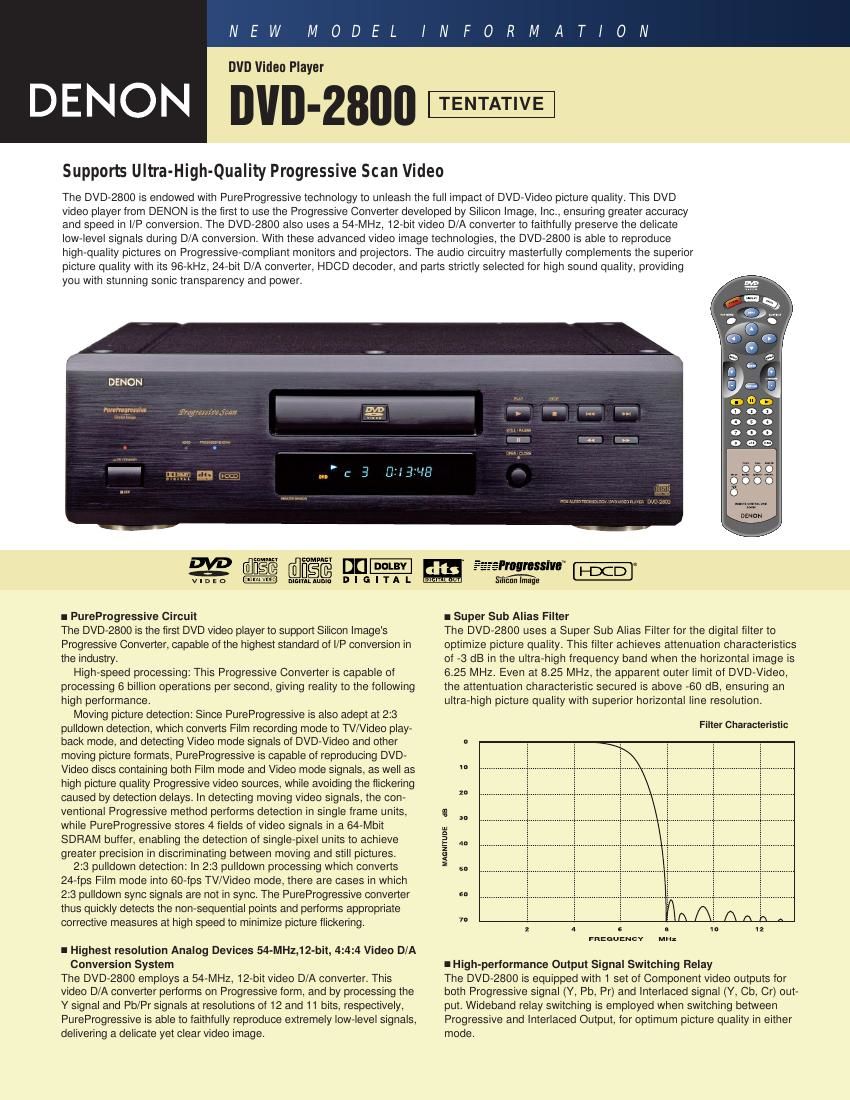

Denon DVD 2800 Brochure

Page 1

*Design and specifications are subject to change without notice. *ÒDolbyÓ, ÒDolby DigitalÓ, ÒPro LogicÓ, and the double\ -D device are registered trademarks of Dolby Laboratories Licensing Corp\ oration. *DTS is registered trademarks of DTS Technology. * , HDCD ¨, High Definition Compatible Digital ¨and Pacific Microsonics TM are either registered trademarks or trademark\ s of Pacific Microsonics, Inc. in the United States and/or other countries. * PureProgressive TMTechnology brought to you by Silicon Image, Inc. SpecificationsnVideo Section Signal system ....................... NTSC Disc played ........................... DVD Video, Video CD, Music CD, CD-R/RW (audio), CD-R/RW (MP3) Video outputs ........................ Composite Video Output: 1.0 Vp-p (with 75 ohms load) S-Video Output: Y; 1.0 Vp-p (with 75 ohms load), C; 0.286 Vp-p Component Video Output: Y, Cb/Pb, Cr/Pr: Y; 1.0 Vp-p (with 75 ohms load), Cb/Pb; 0.648 Vp-p (with 75 ohms load), Cr/Pr; 0.648 Vp-p (with 75 ohms load) nAudio Section Audio outputs ....................... Analog Ouput (L/R): 2.0 Vrms 1 Set Optical Digital Output 1 Set Coaxial Digital Output Signal-to-noise ratio ............. 115 dB (DVD/CD) Dynamic range ..................... 108/100 dB (DVD/CD) Total harmonic distortion ...... 0.0018 % nGeneral Power supply ........................ AC 120 V, 60 Hz Power consumption .............. 19 W Dimensions ........................... 434 (W) x 133 (H) x 330 (D) mm 17.1Ó (W) x 5.2Ó (H) x 13.0Ó (D) Weight .................................. 7.0 kg, 15.4 lbs NEW MODEL INFORMATION DVD-2800 n PureProgressive TM Technology brought to you by Silicon Image, Inc. nVideo Controls The DVD-2800 provides 5 video adjustment controls---Contrast, Sharpness, Brightness, Gamma (to enhance gradation for video programs with predominantly dark Progressive Scan images), and Hue (for Interlaced images only)---which let you adjust the video images to suit\ your taste. nMP3 Playback (*1) The DVD-2800 also plays MP3 files downloaded from the Internet and other sources. Simply record these files onto a CD-R/RW disc via your computer, then play the disc in the DVD-2800. nCD-R/RW (audio/MP3) Playback (*1) Both CD-R and CD-RW discs can be played in the DVD-2800. n24-bit, 96-kHz Audio D/A Converter The DVD-2800 uses a highly accurate multi-bit Sigma Delta D/A converter with superior dynamic range and S/N characteristics. This converter pro- vides plenty of support for the demanding 24-bit, 96-kHz sampling signal\ s of the DVD-Video format. The incorporation of a differential circuit in \ the output stage and other features of the D/A converter ensure that playbac\ k sound is of the highest quality possible, the normal expectation from DENONÕs acclaimed digital technology. nHDCD Decoder HDCD is a digital recording technology, compatible with the conventional\ CD format, that significantly reduces distortion during recording to exp\ and the dynamic range and realize high resolution. The HDCD decoder allows the DVD-2800 to play discs that have been recorded in HDCD format and to bring out the superior sonic performance from these discs. Combined with DENON's advanced audio technology, the DVD-2800 masterfully reproduces HDCD's rich dynamic range and beautiful sound quality. nDouble-speed Drive System The DVD-2800 employs a 2x drive system that drives at 4x when the loaded disc is a CD. This unit is also equipped with a 4 MB buffer memory to ensure that both picture and sound are played without interruption when the DVD disc shifts from layer 1 to layer 2, or in the\ rare event of a pickup dropout. nPCM, Dolby Digital and DTS Digital Output n24/96 PCM Digital Output Capability nOn-screen Display nPasses Below Black DVD-2800 can pass below black video via the progressive and the interlaced outputs for correct monitor setup and optimum picture quality\ . nVirtual Surround Mode (*2) Surround yourself with sensational 3D soundfield envelopment using just one pair of speakers. The DVD-2800's Virtual Surround mode provides a dramatic psychoacoustic surround sound effect, using two speakers with Dolby Digital 5.1 encoded sources. nHighly Rigid Chassis and Hybrid Loader Mechanism The DVD-2800 incorporates a center mechanism mount that is struc- turally very stable, and the mechanism's cover ensures that vibration from the drive does not influence signal circuitry. The DVD-2800's rigid chassis is constructed of a 15-mm thick front panel, a 1.6-mm thick drive mechanism, and a 1-mm thick top cover, 1.2-mm thick main chassis to thoroughly suppress internal and external vibration and preserve signal integrity. The disc loader features a special hybrid\ construction of molded plastic and metal that further absorbs vibration for completely stable disc playback. nOther Versatile Features ¥ Multi-Angle Function (*3) ¥ Multi-Sound Function (*3) ¥ Multi-Subtitle (*3) ¥ Playback Memory Function ¥ Energy-Saving During Standby ¥ Auto Power OFF DENON ELECTRONICS NIPPON COLUMBIA CO., LTD. DIVISION OF DENON CORPORATION (USA) 14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-8011, JAPAN 19 CHAPIN ROAD, P.O. BOX 867, PINE BROOK, NJ 07058-9777 USA TEL: 973-396-0810 www.del.denon.com DENON CANADA INC. 17 DENISON STREET, MARKHAM ONTARIO, CANADA L3R 1B5 TEL: 905-475-4085 www.denon.ca 12540101 A Printed in Japan LR YPBCBPRCR OPT CAL COAXIAL VIDEO OUT AC IN COMPONENT VIDEOOUT S VIDEO OUT DIGITAL OUT (PCM/BITSTR AM) AUD O OUT ® *1 Discs that have been poorly finalized following recording may be onl\ y partially playable or not playable at all. *2 For discs recorded in Dolby Digital only. *3 The DVD software needs to have this feature.
