Denon DVD 2200 Brochure

This is the 2 pages manual for Denon DVD 2200 Brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2

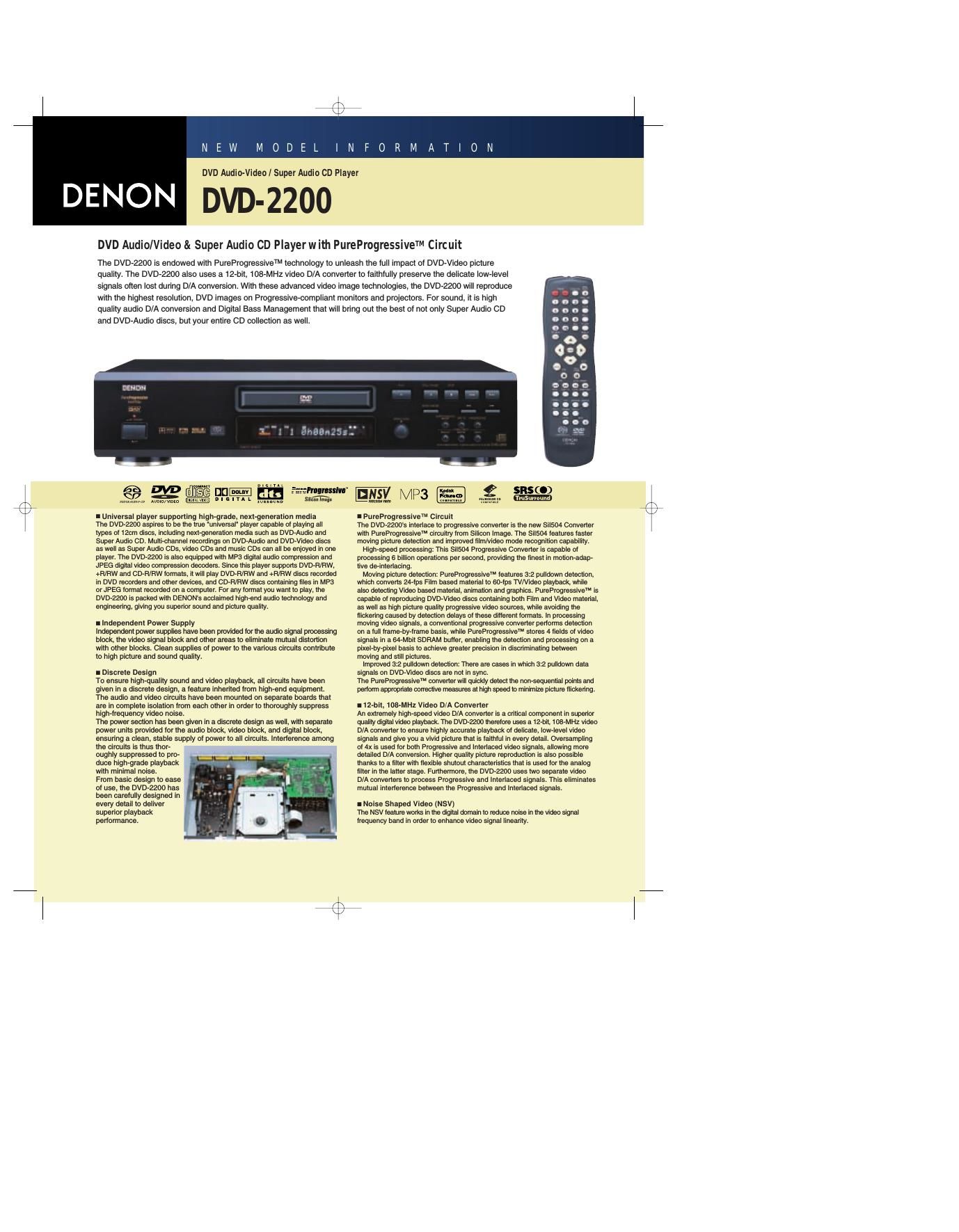

Denon DVD 2200 Brochure

Extracted text from Denon DVD 2200 Brochure (Ocr-read)


Page 1

Super Sub Alias FilterThe S/N ratio can be improved when unwanted signals of higher than 6.75 MHz following D/A conversion are cut. The DVD-2200 thus uses a Super Sub\ Alias Filter that produces flat characteristics, ensuring that adverse influences do not affect video signals inside the essential frequency band, and folding noise is eliminated. In the DVD-2200, the Super Sub Alias Filter is applied to th\ e chroma signal as well as the luminance signal, improving color reproduction. Burr-Brown 24-bit, 192-kHz Audio D/A ConverterThe DVD-2200 uses a 24-bit, 192-kHz audio D/A converter that is well pro\ tected from noise caused by fluctuations in current from the power supply. Sinc\ e the level of quantization noise within the frequency range is uniform for all frequencies, this D/A converter ensures that all the sound you hear is as clear and noise-\ free as possible. Pure Direct ModeThe DVD-2200 features a Pure Direct Mode that further improves sound qua\ lity. For example, during analog audio output, Pure Direct can turn off video \ signal outputs and the front panel display which can easily influence the sound\ quality of the analog audio signals. Digital Bass ManagementWhen playing DVD-Video, DVD-Audio or Super Audio CD sources, it is possi\ ble to preset speaker configurations. The crossover point is fixed at 80 Hz wit\ h 12 dB high and 24 dB low pass filter slopes. SRS True SurroundThe DVD-2200 is equipped with SRS's True Surround circuit, a high-grade \ surround virtualizer that lets you enjoy the excitement of 5-channel aud\ io with only using 2 speakers. DVD-R/RW,+R/RW (DVD-Video Recording Mode) Playback (*1) CD-R/RW (MP3 / JPEG) Playback (*1)The DVD-2200 supports the CD-R/RW format. It plays finalized CD-R/RW discs containing MP3 audio files. It also reads still photos in the JPEG forma\ t taken by a digital camera. KODAK Picture CD/FUJICOLOR CDThe DVD-2200 also plays Picture CDs. Brilliant BlackDVD-2200 can pass below black video (PLUGE) via the progressive or i nterlace video outputs for correct monitor setup and optimum picture quality. A Wealth of Picture Quality Adjustment FunctionsContrast, Brightness, Hue, Sharpness and Gamma can be adjusted as desire\ d by the user. On Screen Display Remote IN/OUT Terminals for home installation Discrete Remote Control Commands for Power On/Off * Design and specifications are subject to change without notice. * Dolby, Dolby Digital, Pro Logic, and the doubl\ e-D device are registered trademarks of Dolby Laboratories Licensing Cor\ poration. * DTS is registered trademarks of DTS Technology. * PureProgressive TMTechnology brought to you by Silicon Image, Inc. * NSV and Super Sub Alias Filter are registered trademarks of Analog Dev\ ices,Inc. * Kodak is a trademark of Eastman Kodak Company. * Fuji Color CD is a trademark of Fuji Photo Film Co., Ltd. * Super Audio CD is a registered trademark of Sony and Philips. NEW MODEL I N F O R M A T I O N DVD-2200 DENON ELECTRONICS (USA), INC.19 CHAPIN ROAD, BLDG#C, PINE BROOK, NJ 07058-9777 USA TEL: 973-396-0810 www.usa.denon.com DENON CANADA INC. 505 APPLE CREEK BLVD. UNIT 5 MARKHAM, ONTARIO L3R 5B1 CANADA TEL: 905-475-4085 www.denon.ca DENON, LTD. 3-16-11 YUSHIMA, BUNKYO-KU, TOKYO 113-0034 JAPAN 13240703 A (*1) Discs that have been poorly finalized following recording may be \ only partially playable or not playable at all. SpecificationsVideo Section Signal system................... NTSC/PAL selectable Usable Disc ...................... DVD Audio, DVD Video, DVD-R/RW (DVD Video), DVD+R/RW (DVD Video), Super Audio CD, Video CD, Music CD, CD-R/RW (AUDIO/MP3/JPEG), Picture CD Video outputs ................... 1 Set Composite video output: 1 Vp-p (with 75 ohms load) 1 Set S-Video output: Y; 1 Vp-p (with 75 ohms load), C; 0.286 Vp-p (NTSC) 1 Set Component Video Output: Y, Cb/Pb, Cr/Pr: Y; 1.0 Vp-p (with 75 ohms load), Cb/Pb; 0.648 Vp-p (with 75 ohms load), Cr/Pr; 0.648 Vp-p (with 75 ohms load) Audio Section Audio outputs .................. 1 Set Analog Front Channel (FL/FR) Ouput, 1 Set Analog Multi Channel (FL/FR/SL/SR/C/SW)Output, 1 Set Optical Digital Output, 1 Set Coaxial Digital Output, Signal-to-noise ratio ........ 115 dB Dynamic range ................ 106 dB Total harmonic distortion 0.001 % General Power supply .................. AC 120 V, 60 Hz Power consumption ........ 27 W Dimensions ..................... 434 (W) x 101 (H) x 318 (D) mm, 17.1 (W) x 4.0 (H) x 1\ 2.5 (D) Weight .............................. 4.7 kg, 10.36 lbs
