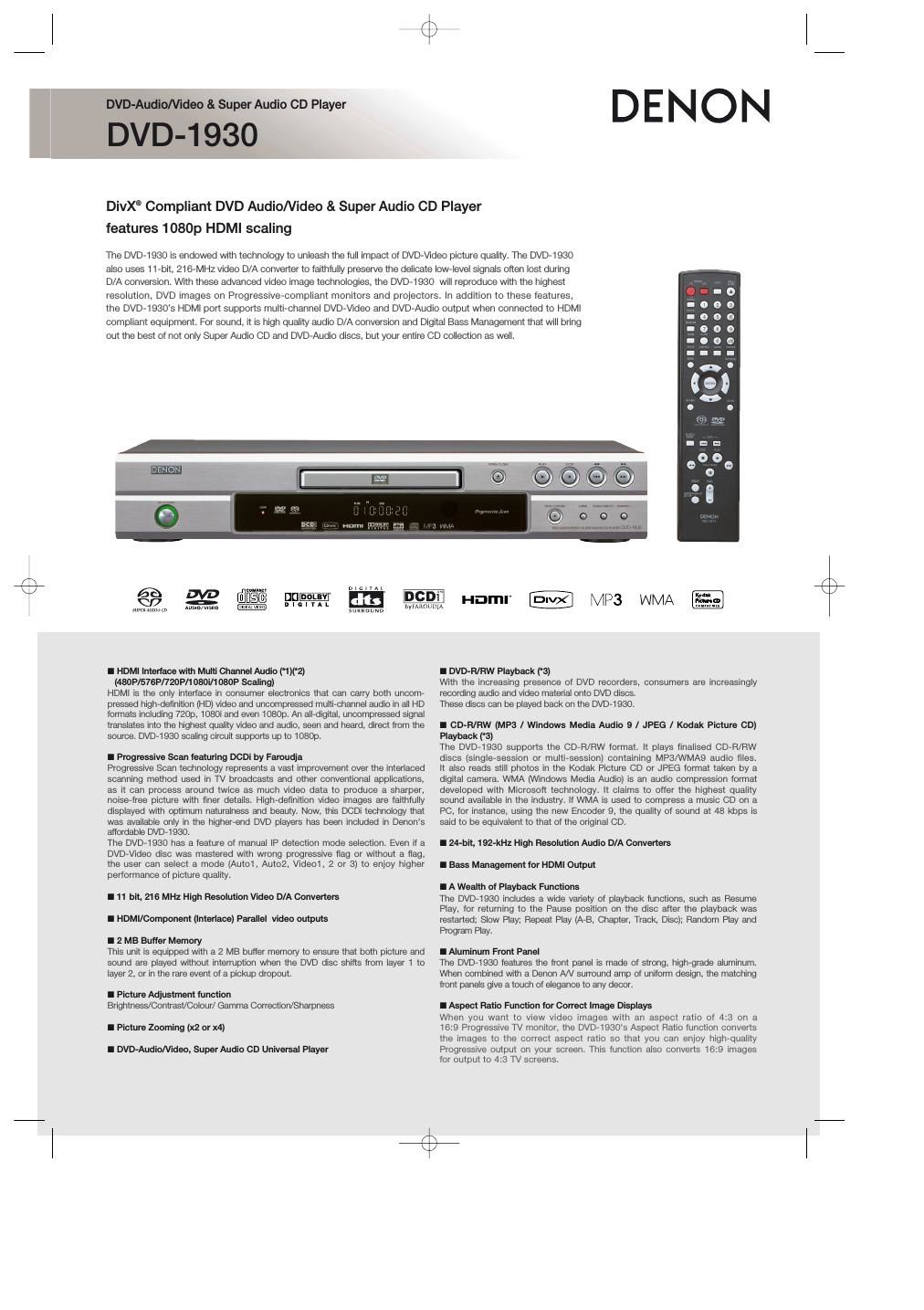

Denon DVD 1930 Brochure

Page 1

Video SectionSignal system PAL/NTSC* Disc played DVD Audio, DVD Video, Music CD, CD-R/RW (Audio/MP3/WMA/JPEG/Kodak picture CD) DVD-R/RW, Super Audio CD Video outputs Composite Video Output: 1.0 Vp-p (with 75 ohms load) S-Video Output: Y; 1.0 Vp-p (with 75 ohms load), C; 0.3 Vp-p Component Video Output: Y, Pb/Cb, Pr/Cr: Y; 1.0 Vp-p (with 75 ohms load), Pb/Cb; 0.7 Vp-p (with 75 ohms load), Pr/Cr; 0.7 Vp-p (with 75 ohms load) SCART (RGB Video Output): R: 0.7 Vp-p (with 75 ohms load) G: 0.7 Vp-p (with 75 ohms load) B: 0.7 Vp-p (with 75 ohms load) 1 HDMI Output * PAL60 signals can be output when NTSC, Region 2 disc played and connec\ ted via Video Out or S-Video termi- nals to an equipment or a monitor which can receive such PAL signals. In above mentioned conditions, NTSC signals can be output via RGB (SCAR\ T), Component (Interlace/Progressive) and HDMI terminals. Audio Section Audio outputs 1 Set of Analog Output (L/R) 1 Set of Multi channel (Front L/R, Center, Surround L/R, Subwoofer) 1 Optical Digital Output 1 Coaxial Digital Output 1 HDMI Output CD audio Frequency response 4 Hz - 20 kHz Signal-to-noise ratio 115 dB Dynamic range 98 dB Total harmonic distortion 0.004% GeneralPower supply AC 200-240 V, 50 Hz Power Consumption 17 W (Standby: 1.35 W) Dimensions 435 (W) x 75 (H) x 310 (D) mm Weight 2.6 kg Remote Control Unit RC-1017 DVD-1930 Icon Based On-screen DisplayA simple press of the Display button on the remote controller lets you s\ ee the current operating status of the DVD-1930 within an easy-to-read display \ on screen. The various operations and settings are easily changed using the\ remote controller while monitoring the screen display. 24 bit/96kHz PCM Digital Output Capability PCM, Dolby Digital and DTS Digital Output Auto Power OFF *1) Version 1.1 compliant. HDMI audio output capacity is dependent on t\ he monitor being used. HDMI outputs is HDCP compliant. Video cannot be viewed if connected to a mon tor that does not support HDCP; video can be viewed only on HDCP-compliant monitors. *2) HDMI output is HDCP compliant. Video cannot be viewed if connected \ to a monitor that does not support HDCP; video can be viewed only on HDCP-compliant monitors. *3) Discs that have been poorly finalised following recording may be on\ ly partially playable or not playable at all. Specifications * Design and specifications are subject to change w thout notice. * Dolby and the double-D symbol are registered trademarks of Do by Laboratories Licensing Corporation. * DTS and DTS Digital Surround are registered trademarks of DTS Technolo\ gy. * DCDi TM is a trademark of Faroudja, a division of Genesis Microchip Inc. * HDMI, the HDMI logo and High-Definition Multimedia Interface are trade\ marks or registered trademarks of HDMI Licensing LLC. * DivX, DivX Certified, and associated logos are trademarks of DivXNetwo\ rks, Inc. and are used under license. * Windows Media and the Windows logo are trademarks or registered tradem\ arks of Microsoft Corporation in the United States and/or other countries. 54160806 B Denon Brand CompanyD&M Building, 2-1 Nisshin-cho, Kawasaki-ku, Kawasaki-shi, Kanagawa, 210-\ 8569 Japan www.denon.com * Black version is available.
