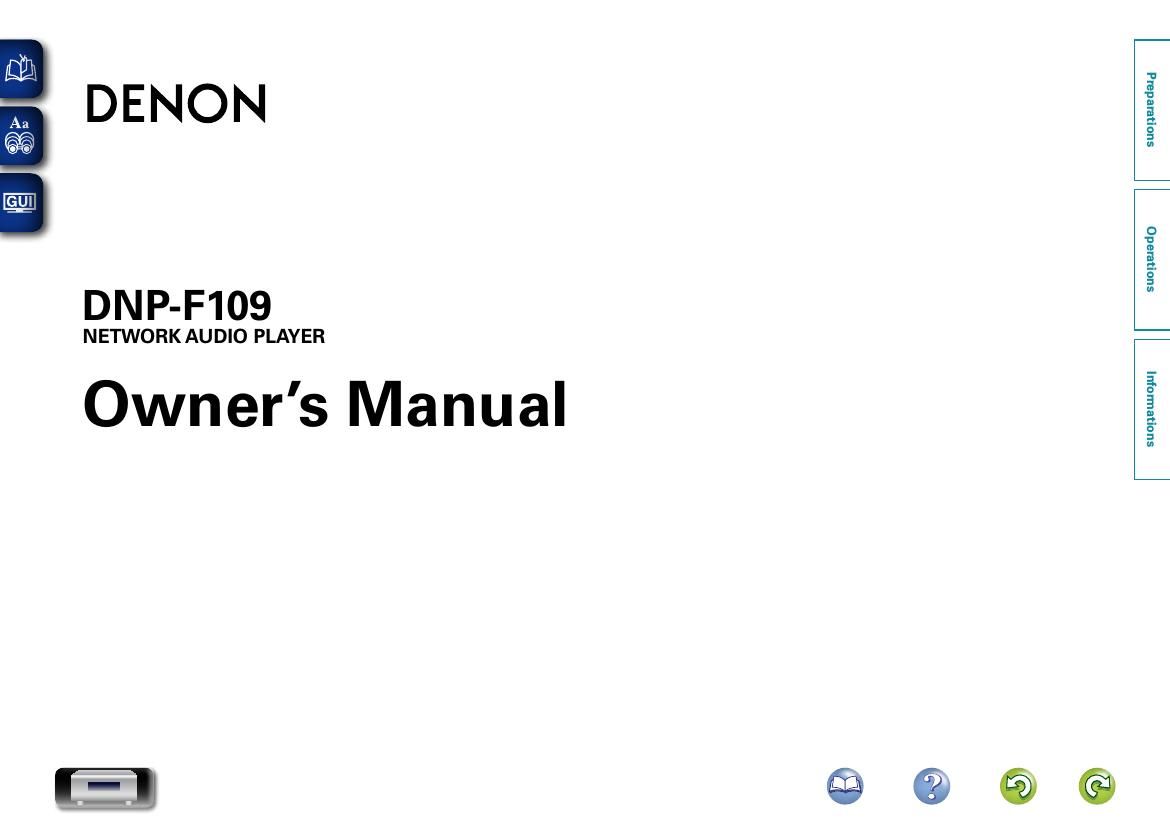

Denon DNP F109 Owners Manual
This is the 51 pages manual for Denon DNP F109 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Denon DNP F109 Owners Manual (Ocr-read)
Page 2
CI SAFETY PRECAUTIONS
CAUTION
A RISK OF ELECTRIC SHOCK A
Do NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING T0 QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, Within an equilateral
mangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point Within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance lservicing) instructions in the literature
accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE 0R ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE To RAIN 0R MOISTURE.
NFJV'PSJN.
.00
IMPORTANT SAFETY
INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all Warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only With dry cloth.
Do not block any ventilation openings.
Install in accordance With the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiersl that produce heat.
Protect the poWer cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point Where they exit from the
apparatus.
10. Only use attachments/accessories specified by the manufacturer.
11.
12. Unplug this apparatus during lightning storms or when
13. Refer all
Use only With the can, stand, tripod, bracket, or table
specified by the manufacturer, or sold With the apparatus.
When a cart is used, use caution When moving the cart/
apparatus combination to avoid injury from tippver.
.5
A-
unused for long periods of time.
servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way,
such as powerrsupply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
14. Batteries shall not be exposed to excessive heat such as sunshine, fire or
the like.
CAUTION:
To completely disconnect this product from the mains, disconnect the plug
from the wall socket outlet.
The mains plug is used to completely interrupt the power supply to the unit
and must be Within easy access by the user.
' DECLARATION OF CONFORMITY
We declare under our sole responsibility that this product, to Which this
declaration relates, is in conformity With the followmg standards:
EN60065, EN55013, EN55020, EN61OODr3v2, EN61OOOV3»3, EN300328,
EN301489701, EN301489-17 and EN50371.
Followmg the provisions of Low Voltage Directive 2006/95/EC and EMC
Directive 2004/108/EC, the EC regulation 1275/2008 and its frame work
Directive 2009/125/EC for Energyrrelated Products lErPl.
DENON EUROPE
Division of D&M Germany GmbH
An der Kleinbahn 18, Nettetal.
D41334 Germany
A NOTE ABOUT RECYCLING:
This product's packaging materials are recyclable and can
be reused. Please dispose of any materials in accordance
with the local recycling regulations.
When discarding the unit, comply With local rules or
regulations.
Batteries should never be thrown away or incinerated
but disposed of in accordance With the local regulations
concerning battery disposal.
This product and the supplied accessories, excluding the
batteries, constitute the applicable product according to the
WEEE directive.
gamma
C e 2 2 00 © R&TI'E Directive 1999/5/Ec
This product may be operated in the folloWing countries;
AT BE CZ DK FI
FR DE GR HU IE
IT NL PL PT SK
ES SE GB NO CH
indoor use only.
@fiiOO
suoueaado suoieredaId
suoiwLquwl
Page 7
Remote operation
gfi Denon Remote App
Denon Remote App is a unique application developed for the iPhone,
iPod touch and Android smartphone. This application enables you to
Aa control DENON network devices that are connected to your home
% network. Install the App onto your iPhone, iPod touch or Android
smartphone to control this device.
[E DENONDNP-F109 5)::5'
Intamet Radio
Mam
m
I
. Bidirectional communication is performed.
-The Denon Remote App can be downloaded for tree from the
iTunes® Store.
@®®@
suopmado suoueiedaiid
suonemwwl
Page 26
m Playing files stored on a PC and NAS Li
Use this procedure to play music files or playlists.
A21 1 Prepare for playback.
% ® Check the network environment,
then turn on this unit's power
luggage 20 "Turning the power @
onl.
IGUI ® If settings are required, make the Q
"Setting the network [Network]" ("E-D E)
(@page 14). v
® Prepare the computer
luggage 22 Applying media
sharing settings", @page 40
About Music server").
Press MUSIC SERVER to switch
the input source to Music
Server.
0 For details on selecting the input source using the unit buttons, see
"Selecting the input source using the main unit (@page 20).
3 Press AV to select the server including the file to be
played, then press ENTER or D.
Press AV to select the search item or folder, then
press ENTER or D.
Repeat step 4 until the file is displayed.
GUI-h
Playback starts once buffering reaches 100%".
Press AV to select the file, then press ENTER or I>.
I
- Connections to the required system and specific settings must be
made in order to play music files (@page 8).
- Before starting, you must launch the computer's server software
and set the files as server contents. For details, see the operating
instructions of your server software.
-The order in which the tracks/files are displayed depends on
the server specifications. If the tracks/files are not displayed in
alphabetical order due to the server specifications, searching by the
first letter may not work properly.
- WMA Lossless files can be played when using a server supporting
transcoding, such as Windows Media Player Ver. H or later.
Particularly when you play back large music files, depending on your
wireless LAN environment, the playback sound may be interrupted. In
this case, make the wired LAN connection.
El Playing repeatedly (Repeat playback)
(@oage 28)
El Playing random order (Random playback)
(@oage 28)
23
Network audio playback -
El Swrtchlng the dlsplay 3
0
During playback, Press INFO. g
..
0 The display switches each time INFO is 6 n1".
pressed. 2
ll!
-»
Artist name 8
m
<- 3
'2.
File type/Bitrate g
1/2
El Music sewer operation
Operation buttons Function
FAVORITE ADD Registration to the Favorite list
FAVORITE CALL Call from the Favorite list g
K4 >>l Auto search(cue) :9:
>III Playback / Pause a
I Stop 3.
SETUP Menu 3
Cursor operation lAV<1 l>)/
AV Auto search (cue, AV)
ENTER Enter -
SEARCH Character search1
REPEAT Repeat playback luggage 28)
RANDOM Random playback (@gage zsl *2
*1 Press SEARCH, then press ENTER to select the first letter you
want to search mode.
*2 When playing files stored on a computer using the random play
function, when a track has finished playing, the next track is
selected at random from all of the tracks on the computer. For
this reason, the same track may be played back to back.
i
0 If the list is not in alphabetical order, you may not be able to perform
a character search.
0 Depending on the server being used, some functions may be limited.
@®®®
Page 35
LEE
Aa
%
[gig
Remote play function
You can use your home network to play back with this unit music
files stored on PC, NAS, mobile phones and portable audio players. In
this case, you use PC, mobile phones and portable audio players for
operations.
i
-The relevant devices should comply with the DLNA (Digital Living
Network Alliancel Ver. 1.5 standard.
~Awireless LAN environment is required for playing back music files
on mobile phones or portable audio players.
0 For some mobile phones, you must install an application for DLNA
music playback.
El Roles each device plays
The following devices are used for Remote Play. As specified in
the DLNA standard, these devices are called DMC, DMS or DMR
according to their role.
Name Device example Role
Performs Remote Play
DMC - PC operations.
(Digital Media 0 Mobile phone DMC can also play back
Controllerl - Portable audio player music files stored on these
devices.
DMS - PC Stores music files.
(Digital Media ° NAS Music files stored on these
Server] (Network Attached devrces are played back With
Storage) DMC.
Outputs audio of music files
DMR played back through Remote
(Digital Media 0 This unit Play from speakers. DMR
Renderer) cannot perform playback
operations.
El Files that can be played back
See "Important information" - About Music server"
(@pagezlol.
Settings required for each device
You must make settings on DMC and DM8 for Remote Play. Make
the following settings. Also see the owners manual of each device
for settings.
El Settings on PC and NAS
Make settings on PC and NAS to exchange data with DMR devices.
For settings, see Applying media sharing settings" (EEpage 22!.
El Settings on mobile phones
You must install an application for DLNA music playback on
your mobile phone to perform operations on DM8 and this unit
(DMR) with your mobile phone. The applicable application differs
according to your mobile phone.
I
Some mobile phones support DLNA music playback with the factory
settings. See the owner's manual of your mobile phone.
El Settings on portable audio players
Make settings so that this unit (DMR) can play back music files
stored on your portable audio player. For settings, see the owners
manual of your portable player.
El Settings on this unit
Connect this unit to the DLNA network. You do not need to make
other settings.
For the network connection, see the provided Getting Started,
"Connecting to a home network (LANl" (@page 8) and
"Setting the network [Network]" lllEEpage 14).
32
El Remote Play operations
Operations are different for each device, but the procedures
for preparing for Remote Play are the same. The preparation
procedures are shown below.
Turn on this unit.
- Make sure that this unit is connected to the network.
Display the music file playback screen on DMC.
I For PC, open Windows Media Player 12, etc.
- For mobile phones, switch to the music file playback mode.
1
2
3
4
Select the friendly name of this unit for the item that
sets the playback device on the playback screen.
I The default friendly name of this unit is "DENON DNP-F109".
Start playing back a music file on DMC.
- The function on this unit automatically switches to Music
Sewer and the Remote Play mark (5%) appears on the display.
Remote Play starts.
During Remote Play, you cannot perform playback operations with
this unit. Use the DMC device for these operations.
El To exit Remote Play
Press <1.
- The Remote Play mode ends.
@®®®
suogwmdatd
suoueiado
suoneuuoiul
