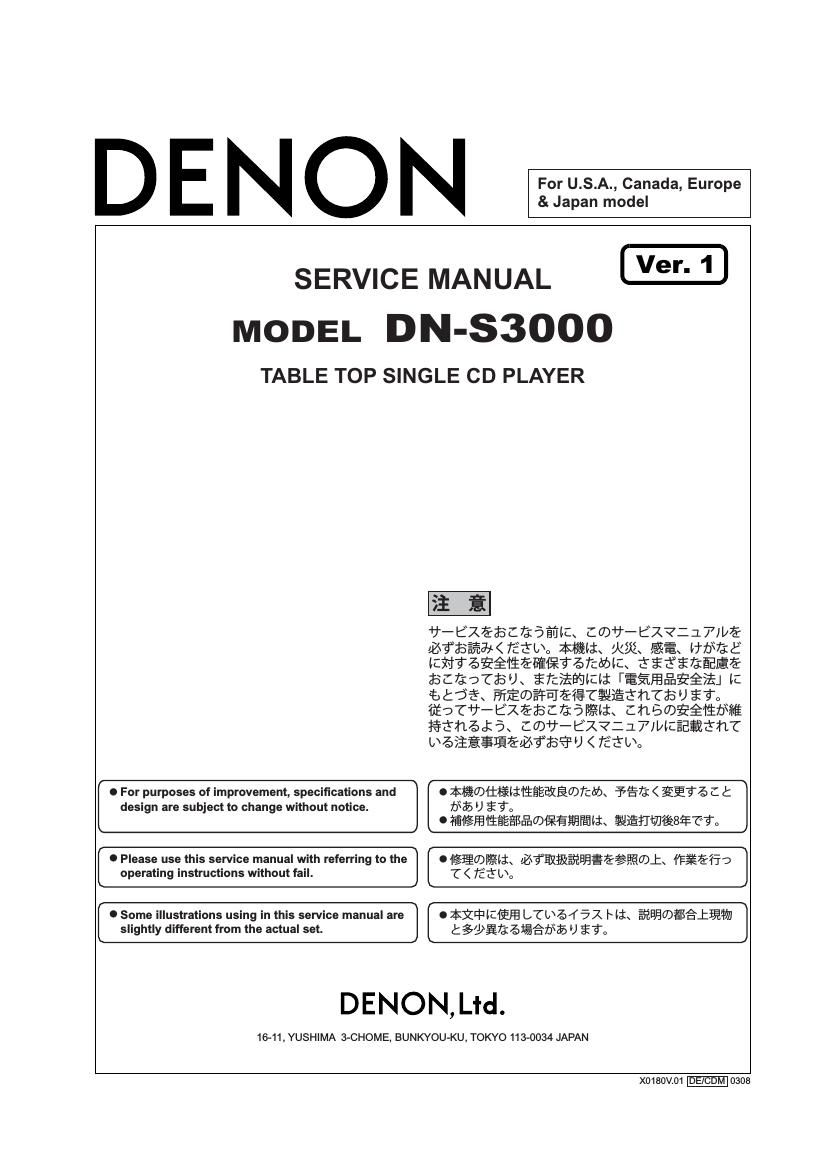

Denon DN S3000 Service Manual
This is the 63 pages manual for Denon DN S3000 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Denon DN S3000 Service Manual (Ocr-read)
Page 1
2 2 DN-S3000 SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective. LASER RADIATION Do not stare into beam or view directly with optical instruments, class 3A laser product. (1) (2) 500V 1M (1) (2)
Page 2
3 3 DN-S3000 DISASSEMBLY (Follow the procedure below in reverse order when reassembling.) 1. SLIP DISK, SLIP MAT (1) Remove a screw and pull out Slip Disc and Slip Mat. 2. PLATTER (1) Remove Belt from Motor Pully. (2) Remove 3 screws and pull out Platter. Slip Disc Slip Mat Slip SheetAnti-static Sheet Washer Belt Motor Pully Platter
