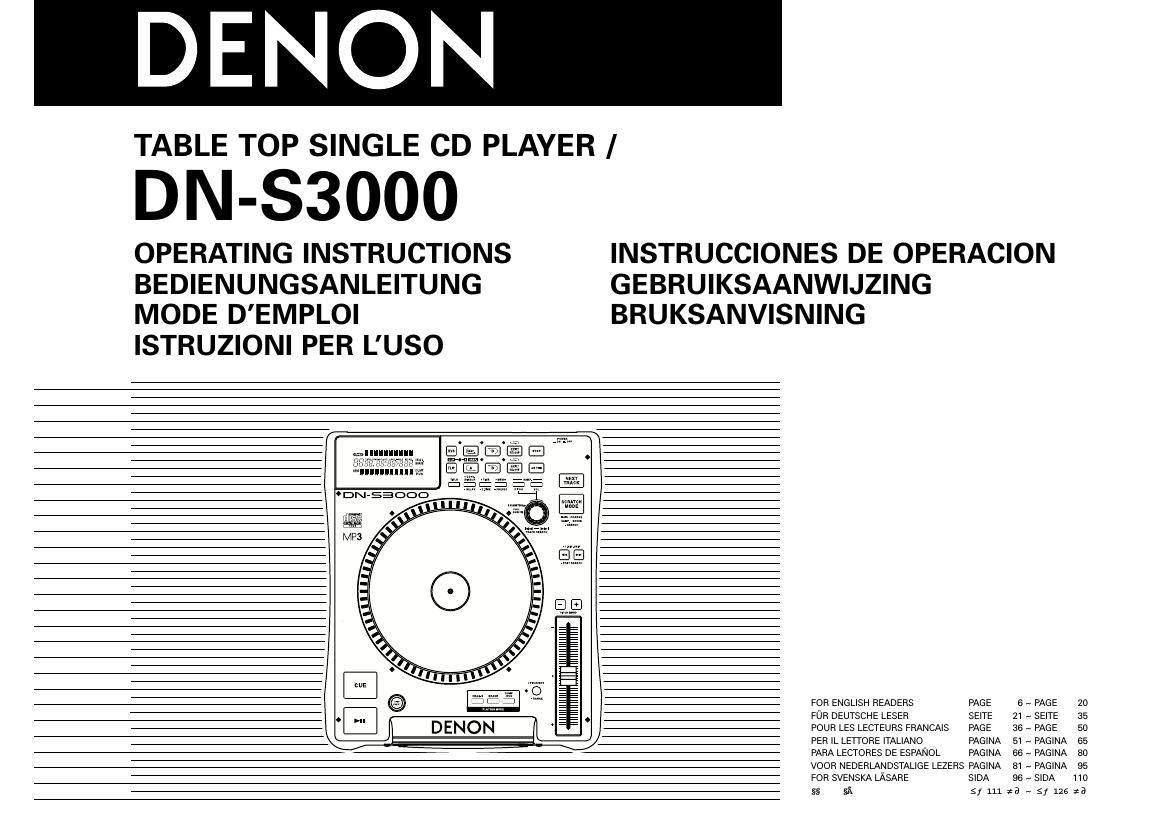

Denon DN S3000 Owners Manual
This is the 111 pages manual for Denon DN S3000 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Denon DN S3000 Owners Manual (Ocr-read)
Page 1
2 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangl\ e, is intended to alert the user to the presence of uninsulated dangerous voltage \ within the products enclosure that may be of sufficient magnitude to constitute a risk of el\ ectric shock to persons. The exclamation point within an equilateral triangle is intended to aler\ t the user to the presence of important operating and maintenance (servicing) instructio\ ns in the literature accompanying the appliance. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION:1. Handle the power supply cord carefullyDo not damage or deform the power supply cord. If it is damaged or deformed, it may cause electric shock or malfunction when used. When removing from wall outlet, be sure to remove by holding the plug attachment and not by pulling the cord. 2. Do not open the top cover In order to prevent electric shock, do not open the top cover. If problems occur, contact your DENON dealer. 3. Do not place anything inside Do not place metal objects or spill liquid inside the CD player. Electric shock or malfunction may result. Please, record and retain the Model name and serial number of your set shown on the rating label. Model No. DN-S3000 Serial No. LABELS (for U.S A. model only) CERTIFICATION THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE. CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. NOTE: This CD player uses the semiconductor laser. To allow you to enjoy music at a stable operation, it is recommended to use this in a room of 5 °C (41 °F) –35 °C (95 °F). ADVARSEL: USYNLIG LASERSTRÅLING VED ÅBNING, NÅR SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. UNDGÅ UDSAETTELSE FOR STRÅLING. VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄMTTÖMÄLLE LASERSÄTEILYLLE. VARNING– OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN I DENNA BRUKSANVISNING SPECIFICERATS, KAN ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG LASERSTRÅLNING SOM ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1. CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT , CLASS 1 LASER PRODUCT , ,, SAFETY INSTRUCTIONS 1. Read Instructions – All the safety and operating instructions should be read before the product is operated. 2. Retain Instructions – The safety and operating instructions should be retained for future reference. 3. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to. 4. Follow Instructions – All operating and use instructions should be followed. 5. Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. 6. Attachments – Do not use attachments not recommended by the product manufacturer as they may cause hazards. 7. Water and Moisture – Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. 8. Accessories – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturers instructions, and should use a mounting accessory recommended by the manufacturer. 9. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 10. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturers instructions have been adhered to. 11. Power Sources – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions. 12. Grounding or Polarization – This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. 13. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. 15. Outdoor Antenna Grounding – If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A. 16. Lightning – For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. 17. Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 18. Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 19. Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 20. Servicing – Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 21. Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into theproduct, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance – this indicates a need for service. 22. Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 23. Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 24. Wall or Ceiling Mounting – The product should be mounted to a wall or ceiling only as recommended by the manufacturer. 25. Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. FIGURE A EXAMPLE OF ANTENNA GROUNDING AS PER NATIONALELECTR CAL CODE ANTENNA LEAD N WIRE GROUND CLAMP ELECTRIC SERVICE EQUIPMENT ANTENNA DISCHARGE UN T (NEC SECTION 810-20) GROUND NG CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERV CE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) NEC - NATIONAL ELECTRICAL CODE
Page 2
3 o !1 !3 !4 #1 #2 #3 #4 #5 !7 !5 !9 !8 @0 @1 @2 @4 @6 !6 !2 !0 #0 @9 @8 @7 @3 @5 i #6 #7 #8 #9 TOP PANEL DIAGRAM / OBERES BEDIENFELD-SCHEMA / SCHEMA DU PANNEAU SUPERIEUR / SCHEMA PANNEAU SUPERIEUR DIAGRAMA DEL PANEL SUPERIOR / OVERZICHT VAN BOVENPANEEL / BILD ÖVER ÖVERSTA PANELEN /≥ª≠±™ Oµ ¯πœ ENGLISH DEUTSCH FRANÇAIS ESPA ÑOL SVENSKA NEDERLANDS ITALIANO
Page 11
12 ENGLISH 7 SCRATCH q w 1 Select Scratch source qSelect the source to be scratched using the SCRATCH MODE button. Each short push of the SCRATCH MODE button switches between MAIN and SAMPLER. MAIN: The SCRATCH MODE button light up in orange. SAMPLER: The SCRATCH MODE button light up in green. - If scratching is possible, the LED for the selected source flashes. - If scratching is not possible immediately, because for example the Sampler setting has not been made, the LED for the selected source lights without flashing. You can Scratch in CD or Sampler mode. 2 [Scratch Disc] w When MAIN is selected as the Scratch mode and Scratch Disc is turned by hand, the Main Track (CD)is scratched. When SAMPLER is selected as the Scratch mode and Scratch Disc is turned by hand, the sample is scratched. 6 NEXT TRACK RESERVE - It is possible to standby at the beginning of the next track to be played while continuing to play the current track and to start playback of the next track without interrupting playback. 1 2 -1 Enter Next Track mode q When the NEXT TRACK button is pushed, the NEXT TRACK RESERVE function is turned on. - When this mode is set, this button and CUE button blink. - When the button is pushed again, the NEXT TRACK RESERVE mode is turned off. Select the track w Turn the PARAMETERS knob and select for the next track to be played. 2-2 Select the MEMO e The CUE point of MEMO can be selected as NEXT TRACK. - When the NEXT TRACK with which MEMO is memorized is selected, MEMO is displayed on a character display. - If the MEMO button is pushed at this time, the CUE point memorized as NEXT TRACK can be selected. - It will be canceled the next track is selected by PARAMETERS knob. 3 Track search start r When the CUE button is pushed after selecting the track, current playback continues, but the next track is searched for and the standby mode is set. When the standby mode is set, the CUE button lights up and the PLAY/PAUSE button flashes. - At this time , loop playback is continued during the loop play for less than 8 seconds. In the case of beyond it, loop play is turned off, and it returns to normal playback. - The time display indicates the remaining playback time for data in the memory. NOTE: The amount of time for which playback of the currently continuing track can be continued is a maximum of 15 seconds from the time searching for the next track starts. PARAMETERSON / OF PUSH q w e r t 4 Next Track playback start tWhen the PLAY/PAUSE button is pushed, the current playback is stopped and playback of the next track starts. - If the PLAY/PAUSE button is not pushed after standing by at the next track, when in the CONT. playback mode, playback of the next track starts once all of the currently playing playback data has been played. When in the SINGLE playback mode, playback stops once all of the currently playing playback data has been played.
Page 87
NEDERLANDS 8 SEAMLESS LOOP/HOT START/STUTTER r e q, w, y t, y 1 A-punt instellen (Hot Start-data inlezen) qDruk op de A-toets om punt A in te stellen, waarna de gegevens voor de warme start worden geladen. - Wanneer een A-punt is ingesteld, beginnen de overeenkomstige A-toets en de FLIP-LED te branden; deze toets wordt in de Hot Start-modus ingesteld. 3-2- Wanneer u tijdens de seamless loop- weergave of na de EXIT-weergave op de B-toets drukt , wordt het B-punt verplaatst naar het punt waarop u op de toets hebt gedrukt. - Wanneer het B-punt is ingesteld, branden de B- en de LOOP-LED's. A Seamless Loop/Hot Start/Stutter (Naadloze herhaling/Warme start/Staccato) 2 Hot Start starten wWanneer de A-toets wordt ingedrukt, begint de weergave vanaf punt A met een warme start. A 3-1B-punt voor Seamless Loop instellen eWanneer u op de B-toets drukt nadat u het A-punt hebt ingesteld of nadat de Hot start-weergave is begonnen, wordt het B-punt ingesteld en begint de Seamless Loop-weergave op het A-punt. 4 Exit/Reloop rBij Seamless Loop-weergave kunt u de loop laten afsluiten of er in terugkeren. EXIT: Druk tijdens de Seamless Loop-weergave op de EXIT/RELOOP-toets om de loop te verlaten. De DN-S3000 zet de weergave verder na het B-punt. RELOOP: Wanneer u na het verlaten van de loop op de EXIT/RELOOP-toets drukt, wordt de Seamless Loop-weergave hervat vanaf het A-punt. 5 Stutter - Er kan ook een punt worden ingesteld voor staccato weergave. tVoor staccato weergave drukt u op de FLIP-toets voordat u op de A-toets drukt, zodat de FLIP LED uitgaat. Druk op de FLIP-toets om te schakelen tussen de modi Hot Start/Seamless Loop en Stutter. 6 A/B-punt wissen yHoud de FLIP/(CLR)-toets ingedrukt en druk de op A-toets om de bijbehorende punten A en B te wissen. U kunt ook de FLIP-toets gedurende tenminste 1 seconde ingedrukt houden om de punten A en B tegelijk te wissel. - Houd de FLIP/(CLR)-toets ingedrukt en druk de op B-toets om alleen de punten B te wissen. A Bedieningsdisplay (zie het deel dat het display beschrijft)
Page 88
NEDERLANDS 6 Trim B-punt uVerdraai Scratch Disc om het B-punt 1 frame per keer te verplaatsen. - Het bereik voor het trimmen van B-punt is als volgt beperkt. B-punt voor Loop: Tussen 5 frames na het A-punt en het einde van de cd. B-punt voor Sampler: Tussen 5 frames na het A-punt en het sampler-einde. 9 A/B TRIM q, !3 r, u, !1 e, t, o, !2 w y, i, !0, !2 1 A-B trim-modus selecteren Kies eerst of u de A- en B-punten via de A-B trim-modus of via de A/B move -modus wilt regelen. q Druk op de A/B TRIM- toets om de positieregelmodus voor het A- en B-punt in te stellen. w Draai vervolgens de PARAMETERS-knop om A-B Trim of A/B Move te kiezen. 3 Trim A-punt rDraai het Jog Wheel om het A-punt frame per frame weer te geven. - Het bereik voor het trimmen van A-punt is als volgt. A-punt voor Loop: ±30 frames vanaf het oorspronkelijke A-punt. (Wanneer het A-punt echter van de standby-modus was ingelezen, kunt u het A-punt niet achteruit verplaatsen. Gebruik in dat geval de A/B Move- functie.) A-punt voor Sampler: Tussen het oorspronkelijke A-punt en 5 frames voor het B-punt. 2 Select A point (in A-B Trim) e Stel A-B Trim in druk op de overeenkomstige A-toets van de loop die u wilt trimmen. De A-toets knippert en de loop-weergave begint. 5 Kies B-punt (A-B Trim) yStel de A-B Trim-modus in en druk om het B-punt te kiezen op de B-toets nadat u het A- punt hebt gekozen. Druk vervolgens op de B-toets. De B-LED knippert en de B -punt trim wordt geactiveerd. - De punten A en B voor naadloze herhaling en de sampler kunnen met behulp\ van de scratch disc nauwkeurig worden gekozen. - Hier bestaan twee manieren voor. A-B Trim: Trim de punten tijdens de loop-weergave. A/B Move: Verplaats de punten door gebruik te maken van de functies Fast Search (S\ nel zoeken) of Manual Search (Handmatig zoeken). A/B Move kan niet worden gecombineerd met Sampler loop. PARAMETERSON / OF PUSH A/B Trim 4 Sla het A-punt op tDruk opnieuw op de A-toets om het nieuwe A-punt op te slaan en de A-B Trim-modus te verlaten. De A-toets begint te branden. 7 Sla het B-punt op iDruk opnieuw op de B-toets om het nieuwe B-punt op te slaan en de A-B Trim-modus te verlaten. De B-LED begint te branden. A/B TRIM A A - A/B Move kan niet worden gecombineerd met Sampler loop. 9 10 Move A- of B-punten !1 Verdraai de Scratch Disc om het geselecteerde punt met behulp van de handmatige zoekfunctie te verplaatsen. - Het bereik voor het verplaatsen van A- punt is als volgt beperkt. A-punt voor Loop: Tussen het begin van de cd en 5 frames voor het B-punt. - Het bereik voor het verplaatsen van B- punt is als volgt beperkt. B-punt voor Loop: Tussen 5 frames na het A-punt en het einde van de cd. A/B Move 8 Kies het A- of B-punt o Kies A/B Move en druk op de A-toets voor het A-punt dat u wilt verplaatsen. De standby- modus wordt ingesteld op het A-punt en de A-toets begint te knipperen. !0 Druk om het B-punt te kiezen op de B-toets nadat u het A-punt hebt gekozen. - De B-LED knippert. Het gekozen B-punt wordt gebruikt voor het A-punt dat eerst was gekozen. A 11 A-B Trim of A/B Move annuleren !3 Druk op de A/B TRIM- toets om de regelmodus voor het A- en B-punt af te sluiten. A/B TR M Sla het A- of B-punt op !2Druk opnieuw op de A- of de B-toets. De LED stopt met knipperen en het A- of het B- punt wordt vernieuwd en de A/B Move-modus wordt afgesloten.
