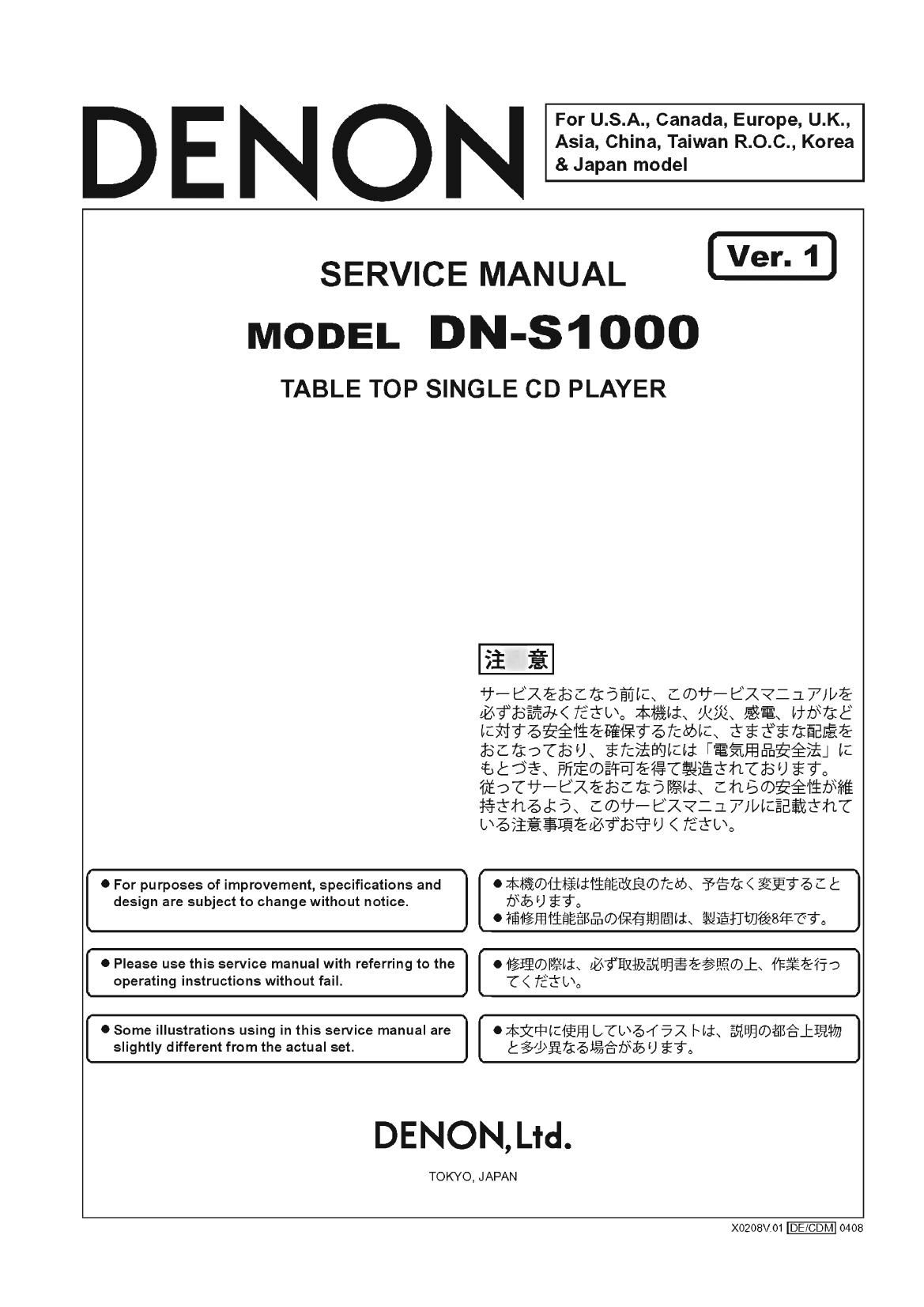

Denon DN S1000 Service Manual

This is the 49 pages manual for Denon DN S1000 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 49
Denon DN S1000 Service Manual

Extracted text from Denon DN S1000 Service Manual (Ocr-read)

Page 3

DN-Sl 000

DISASSEMBLY

(Follow the procedure below in reverse order when reassembling.)

1. Bottom Plate

(1) Remove 6 screws 57 and pull out Bottom Plate.

2. Top Cover unit
(1) Remove 6 screws 61 and 2 screws 59.
(2) Disconnect FFC Cable.
(3) Detach Top Cover unit.

Top Cover

Note:
0 Do not pull out aslant to prevent FFC cable damage.
0 Do not fail to pull AC cord from wall outlet before disconnect FFC Cable.

If AC cord is remained plugged into wall outlet, power is kept supplied in the unit, which may cause danger.
