Denon DN 2000F Owners Manual

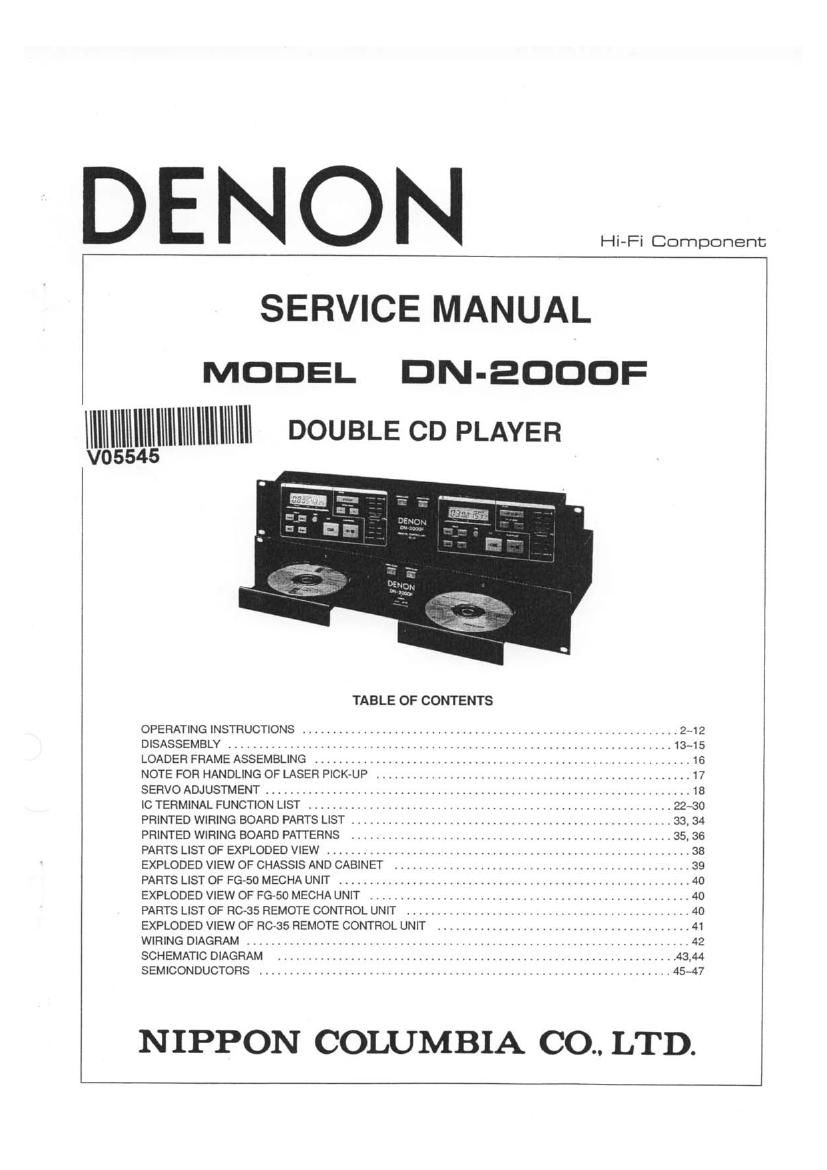

Page 1

D E N O N

SERVICE MANUAL

MODEL DN-EDDDF
IIIIIIIIIIIIHIII DOUBLE co PLAYER

OPERATING INSTRUCTIONS ............................
DISASSEMBLY .................
LOADER FRAME ASSEMBLING ...........
NOTE FOR HANDLING OF LASER PICK-UP

SERVO ADJUSTMENT ................................................................... 18
IC TERMINAL FUNCTION LIST ........ , . . .22-30
PRINTED WIRING BOARD PARTS LIST .................................................. 3134
PRINTED WIRING BOARD PATTERNS .................................................... 35, 36
PARTS LIST OF EXPLODED VIEW ........... . . . . . .38
EXPLODED VIEW OF CHASSIS AND CABINET ............................................... 39

PARTS LIST OF FG-SD MECHA UNIT IIIIIIIII
EXPLODED VIEW OF FG-SO MECHA UNIT ......

PARTS LIST OF R035 REMOTE CONTROL UNIT .......
EXPLODED VIEW OF RC-35 REMOTE CONTROL UNIT
WIRING DIAGRAM ................................
SCHEMATIC DIAGRAM
SEMICONDUCTORS

NIPPON COLUMBIA CO.. LTD.

Page 2

IMPORTANT TO SAFETY

WARNING:

TO PREVENT FIRE 0R SHOCK HAZARD. DO NOT EXPOSE THIS
APPLIANCE TO RAIN 0R MOISTURE

CAUTION:

1. Handle the power suppIy cord coreIuIly
Do not damage or delarm the power supply cord. lI it is damaged or
delerrned, it may cause electric shock or mallunction when used, When
removing Irom wall outlet. be sure to remove by holding the plug
attachment and not by pulling the cord.

2. Do not open the top cover
In order to prevent electric shock. do not open the top cover.
It problems occur, contact your DENON dealer.

3. Do not place anything inside
Do not place metal obiects or spill liquid inside the CD player.
Electric shock or malfunction may result.

Please, record and retain the Model name and serial number oI your set
shown on the rating label.
Model No. DNrZOOOF SerialNo.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO
NOT REMOVE COVER (OR BACK). NO USER-SERVDEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL

The lightning Ilash wtth arrowhead symbol. within
an equilateral triangle, is intended to alert the user to
A the presence oI uninsulated dangerous voltage'
within the product's enclosure that may he 0!

suIIiCienl magnitude to constitute a risk oI electric
shock to persons.

The exclamation point within an equilateral triangle
is intended to alert the user to the presence oi

A important operating and maintenance lseryicingl
instructions in the literature accompanying the op»
plience.

IMPORTANT (BRITISH MODEL ONLVI

The wires in this menu: lead are coloured in accordance with the
Iollowinq code:

Blue: Neutral Brown: Live

The colours oi the Wires in the mains lead at this apparatus may not
correspond with the coloured markings identifying the terminals in
your plug proceed as Iollows.

The wire which IS coloured blue must be connected to the terminal
which is marked With the letter N or coloured black.

The wire which is coloured brown must be connected to the
terminal which is marked wilh the letter L or coloured red.

NOTE:

This CD player uses the semiconductor laser. To allow you to enjoy music
at a stable operation, it is recommended to use this in a room at 5°C (41°F)
- 35°C (95°FI.

LABELS (Ior U.S.A. model only]

WACYMED

WARNING snout

mm
mm VIXTABE INSIDE m NOT OPEN
AVIE rusou: DE c-ioc maritime
PAS Mm

WARNING tom M norms
ORELECTRC W no iot saves: in:
common to run on uosrune

CERTIFICATION
mam MSWMMESTI D"
WERJWAVDATEGWICIW
WEVUWIISA i
m
,0' - mum-m

CAUTION:

USE OF CONTROLS OR ADJUSTMENTS 0R REFORMANCE OF PROCE-
DURES OTHER THAN THOSE SPECIFIED HEREIN MAV RESULT IN
HAlARDOUS RADIATION EXPOSURE.

THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED
RV ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.

NOTE:

This unit may cause interlerence to radio and television reception il
you do not operate it in strict accordance with this OPERATING
INSTRUCTIONS,

This unit complies with Class B computing devnce rules in accord-
ance with the specifications in Sub-pert J or Part 15 of the FCC
Rules, which are designed to provide reasonable protection against
such interterence in a residential installation. II the unit does cause
interterence to any radio or tele on reception, try to reduce it by
one or more at the lollowing means:

at Turn the other unit to improve reception

bl Move this unit

cl Move this unit away Irom others

dl Plug this unit respectively into a diflereni AC outlet

° This is note in accordance with Section 15.838 at the FCC Rum
