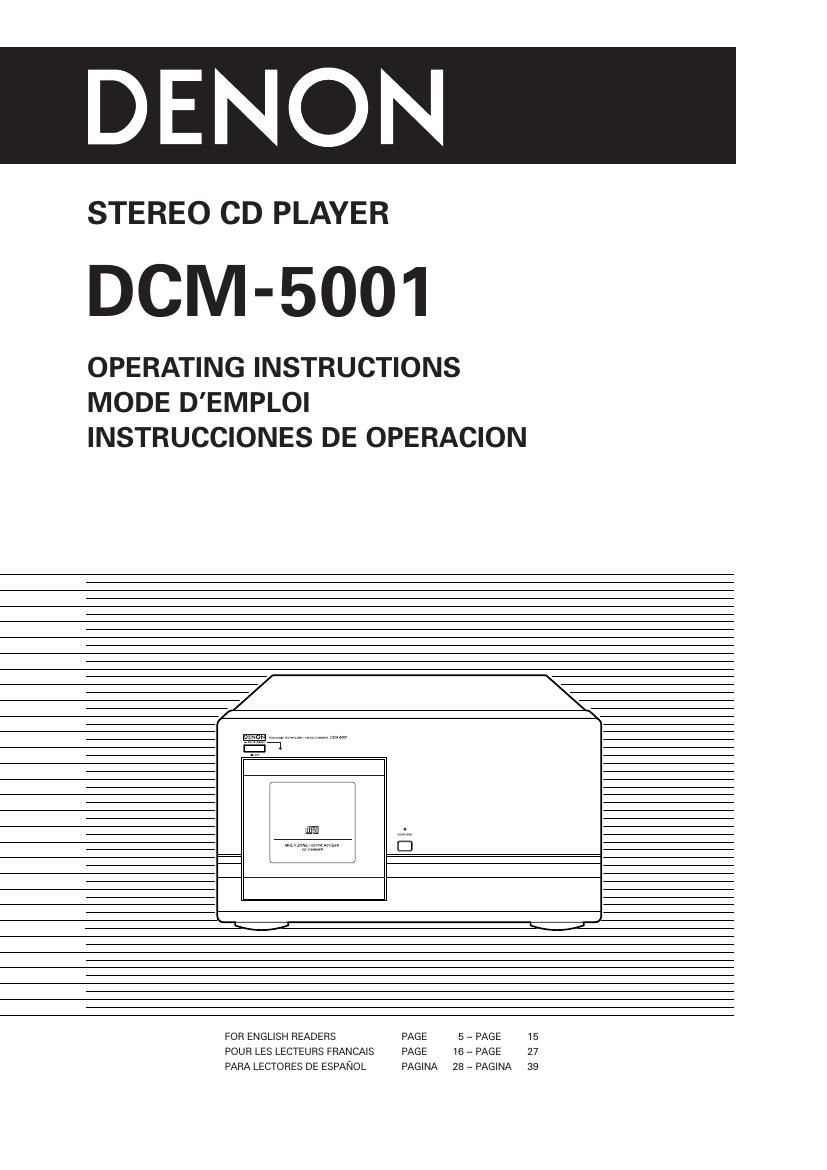

Denon DCM 5001 Owners Manual
This is the 40 pages manual for Denon DCM 5001 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Denon DCM 5001 Owners Manual (Ocr-read)
Page 1
2 IMPORTANT TO SAFETY WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. LABELS (for U.S.A. model only) CERTIFICATION THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER APPLICABLE AT DATE OF MANUFACTURE. CAUTION: 1. Handle the power supply cord carefullyDo not damage or deform the power supply cord. If it is damaged or deformed, it may cause electric shock or malfunction when used. When removing from wall outlet, be sure to remove by holding the plug attachment and not by pulling the cord. 2. Do not open the top cover In order to prevent electric shock, do not open the top cover. If problems occur, contact your DENON dealer. 3. Do not place anything inside Do not place metal objects or spill liquid inside the CD player. Electric shock or malfunction may result. Please, record and retain the Model name and serial number of your set shown on the rating label. Model No. DCM-5001 Serial No. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR REFORMANCE OF PROCE- DURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZ- ARDOUS RADIATION EXPOSURE. THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. - FOR U.S.A. & CANADA MODEL ONLY CAUTION TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. -POUR LES MODELES AMERICAINS ET CANADIENS UNIQUEMENT ATTENTION POUR PREVENIR LES CHOCS ELECTRIQUES NE PAS UTILISER CETTE FICHE POLARISEE AVEC UN PROLONGATEUR UNE PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ETRE INSEREES A FOND SANS EN LAISSER AUCUNE PARTIE A DECOUVERT. Use compact discs that include the mark. CDs with special shapes (heart-shaped CDs, octagonal CDs et\ c.) cannot be played on this set. Attempting to do so may damage the set. Do not use such CDs. DIGITAL AUD O DIGITAL AUD OCOMPACT COMPACT Utiliser des disques compacts portant le logo . Des CD avec des formes spéciales (CD en forme de coeur, des CD octog\ onaux, etc.) ne peuvent pas être lus sur cet appareil. Le fait de lessayer, risque dendommager le lecteur. Ne pas utili\ ser de tels CD. DIGITAL AUD O DIGITAL AUD OCOMPACT COMPACT Use discos compactos con la marca . En este equipo no es posible reproducir CDs con formas especiales (CDs con forma de corazón, CDs octagonales, etc.). Si intenta hacerlo, el equipo podrá resultar dañado. No use este t\ ipo de CDs. DIGITAL AUD O DIGITAL AUD OCOMPACT COMPACT NOTE: This CD player uses the semiconductor laser. To allow you to enjoy music\ at a stable operation, it is recommended to use this in a room of 5 °C (4\ 1 °F) ~ 35 °C (95 °F).
Page 2
3 SAFETY INSTRUCTIONS 1. Read Instructions – All the safety and operatinginstructions should be read before the appliance is operated. 2. Retain Instructions – The safety and operating instructions should be retained for future reference. 3. Heed Warning – All warnings on the appliance and in the operating instructions should be adhered to. 4. Following Instructions – All operating and use instructions should be followed. 5. Water and Moisture – The appliance should not be used near water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, and the like. 6. Carts and Stands – The appliance should be used only with a cart or stand that is recommended by the manufacturer. 6A. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 7. Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer. 8. Ventilation – The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings. 9. Heat – The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. 10. Power Sources – The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. 11. Grounding or Polarization – Precautions should be taken so that the grounding or polarization means of an appliance is not defeated. 12. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance. 14. Cleaning – The appliance should be cleaned only as recommended by the manufacturer. 15. Power Lines – An outdoor antenna should be located away from power lines. 16. Outdoor Antenna Grounding – If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A. 17. Nonuse Periods – The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time. 18. Object and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings. 19. Damage Requiring Service – The appliance should be serviced by qualified service personnel when: A. The power-supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance; or C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a marked change in performance; or E. The appliance has been dropped, or the enclosure damaged. 20. Servicing – The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel. FIGURE A EXAMPLE OF ANTENNA GROUNDING AS PER NATIONALELECTRICAL CODE ANTENNA LEAD IN WIRE GROUND CLAMP ELECTRIC SERVICE EQUIPMENT ANTENNA DISCHARGE UNIT (NEC SECTION 810 20) GROUNDING CONDUCTORS (NEC SECTION 810 21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) NEC NATIONAL ELECTRICAL CODE
Page 31
ESPAÑOL 32REPRODUCCIÓN AUTÓNOMA PRECAUCIÓN CON LAS CONEXIONES- Antes de proceder a las conexiones o desconexiones de cables y del cable de alimentación y demás, asegúrese de apagar todos los componentes del sistema. - Asegúrese de que todos los cables están conectados correctamente a las tomas L (izquierda) y R (derecha). - Inserte los conectores en los terminales a fondo. - Conecte los conectores de salidas a las tomas de entrada CD, AUX o TAPE del amplificador. Conecte un extremo del cable de conexión suministrado con el reproductor de CDs a los terminales de salida izquierdo (L) y derecho (R) del reproductor de CDs, y el otro extremo a los terminales de entrada CD, AUX o TAPE PLAY, izquierdo (L) y derecho (R) del amplificador. 1 D G TA CO X NDA SY HA N IN REM TE ON ROL N 2 1 2 U L CO TR L DA SY HA N CO TR L E TE NAL MO E SW TCH ¢ R 23 C£ R 42 A 0 ATTEN ION ATTEN ION 21 I I AL C AX O T D I Y CH IN UT 1 2 Utilice el cable de punta coaxial de 75 Ω/ohmios para conectar el conector de salida digital (DIGITAL COAX OUT) del DCM-5000 al conector de entrada digital (COAXIAL) de un procesador o unidad convertidor D/A digital. El DCM-5001 está equipado con puertos interfaz de ordenador y de control remoto, para la compatibilidad con las soluciones de control remoto externo ofrecidas por terceras compañías. Póngase en contacto con el distribuidor o consultor de instalaciones para que le aconsejen, si está considerando adquirir un sistema de control extern\ o. NOTA:Cuando se selecciona el modo de zona individual, no se dará salida a ningún dato digital del lado de la ZONA 2. 6 Conexión de conectores de Salida Analógica Amplificador de ZONE 2 Amplificador de ZONE 1 Toma de red general de alimentación Conexión del conector de Salida Digital (COAXIAL) Otras conexiones Toma de red general de alimentación Procesador o convertidor digital D/A (amplificador) de ZONE 1 Procesador o convertidor digital D/A (amplificador) de ZONE 2 DCM-5001 DCM-5001
