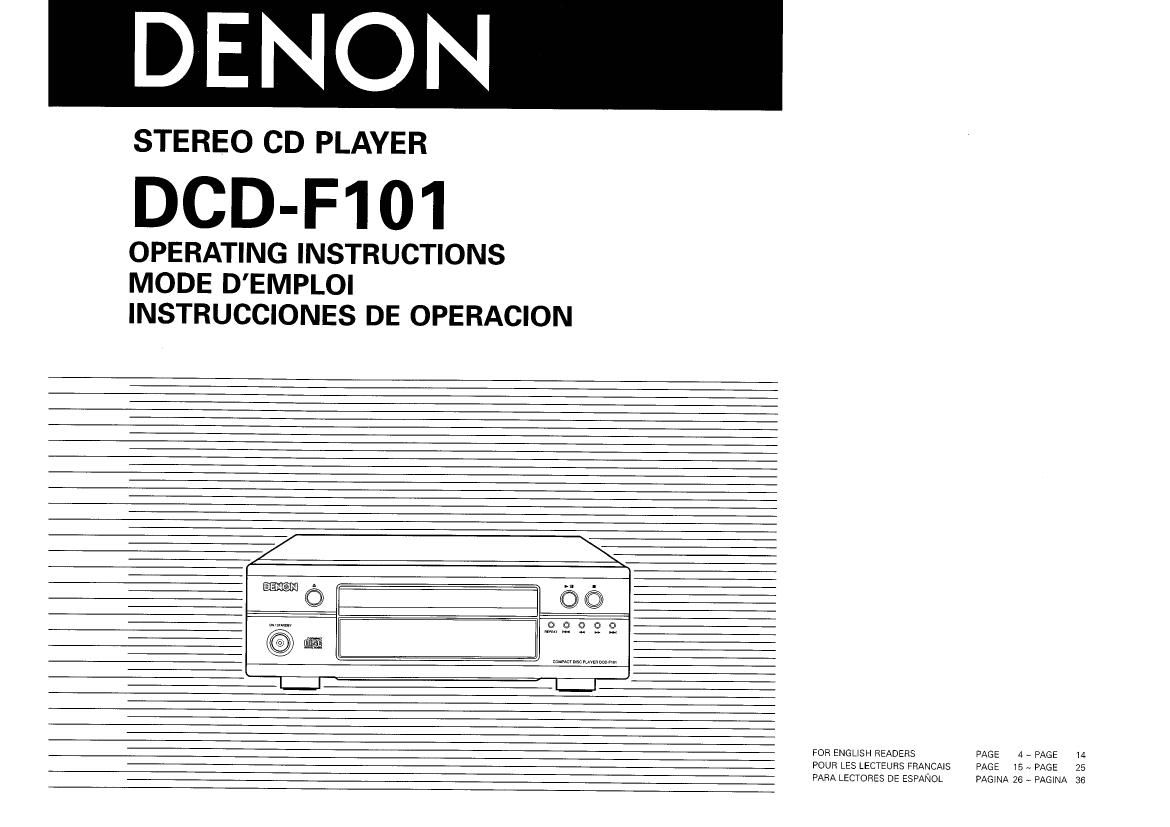

Denon DCD F101 Owners Manual

Page 1

DENON

STEREO CD PLAYER

DCD-F101

OPERATING INSTRUCTIONS
MODE DEMPLOI

INSTRUCCIONES DE OPERACION

FOR ENGLISH READERS PAGE 4 ~ PAGE 14
POUH LES LECTEURS FRANCAIS PAGE 15 ~ PAGE 25
PARA LECTORES DE ESPANOL PAGINA 26 ~ PAGINA 36

Page 2

IMPORTANT T0 SAFETY

WARNING:
To PREVENT FIRE 0R SHOCK HAZARD, DO
NOT EXPOSE THIS APPLIANCE To RAIN 0R
MOISTURE.

NOTE:
This CD player uses the semiconductor laser, To allow

you to enjoy music at a stable operation, it is

recommended to use this in a room of 5°C (41°Fl -
35°C (95°F).

LABELS liar U.S.A. model only]

CAUTION
1

. Handle the power supply cord carefully

Do not damage or deform the poweI supply cord.
If it is damaged or deformed, it may cause electric
shock or malfunction when used. When removing
from wall outlet, be sure to remove by holding the
plug attachment and not by pulling the cord,

2. Do not open the top cover
In order to prevent electric shock, do not open the
top cover.
If problems occur, contact your DENON DEALER.

3. Do not place anything inside
Do not place metal objects or spill liquid inside the
system.
Electric shock or malfunction may result,

Please, record and retain the Model name and serial
number of your set shown on the rating label.

Model No. DCD-F101

Serial No.

CERTIFICAHON
THIS PRODUCT COMPLIES WITH DHHS RULES
21 CFR SUBCHAPTER J APPLICABLE AT DATE
OF MANUFACTURE.

CAUTION:
use or CONTROLS 0R ADJUSTMENTS OR
REFORMANCE OF PROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

THE COMPACT DISC PLAYER SHOULD NOT BE

ADJUSTED OR REPAIRED BY ANYONE EXCEPT
PROPERLY QUALIFIED SERVICE PERSONNEL

RISK OF EL .01 R C SHOCK
DO NOT OPEN

CAUTION: '
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING T0 QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the
presence of unlnsulated "dangerous
voltage" within the products enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
Instructions in the literature
accompanying the appliance.

A

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.

This Class B digital apparatus meets all
requirements of the Canadian lnterference-Causrng
Equipment Regulations.

Cet appareil numerique de la classe B respects
toutes les exigences du Reglement sur Ie materiel
brouilleur du Canada.

- FOR CANADA MODEL ONLY

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE 0F PLUG TO WIDE SLOT, FULLY INSERT.

- POUR LES MODELE CANADIENS
UNIOUEMENT

ATTENTION

POUR EVITER LES cnocs ELECTRIQUES,
INTERODUIRE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE DE
LA PRlSE ET POUSSER JUSOU' Au FOND,

10,

ll,

SAFETY INSTRUCTIONS

Read Instructions - All the safety and operating instructions
should be read before the product ls operated.

Retain Instructions - The safety and operating instructions
should be retained for future reference.

Heed Warnings 7 All warnings on the product and in the
operating Instructions should be adhered to,

Follow instructions - All operating and use instructions
should be followed,

Cleaning » Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners.

Attachments - Do not use attachments not recommended
by the product manufacturer as they may cause hazards.

Water and Moisture 7 Do not use this product near water-
for example, near a bath tub, wash bowl, kltchen sink, or
laundry tub; in a wet basement; or near a swimming pool,
and the like.

Accessories - Do not place this product on an unstable cart.
stand, tripod, bracket, or table. The product may fall, causlng
serious lniury to a child or adult, and serious damage to the
product. Use only wrth a can, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the product,
Any mounting of the product should iollaw the manufacturers
instructions, and should use a mounting accessory
recommended by the

manufacturer

A product and can

combination should be

moved with care. Quick .

stops, excessive force,

and uneven surfaces may

cause the product and cart -
combination to Overturn.

Ventilation e Slots and openings in the cabinet are provided
for ventilation and (0 ensure reliable operation of the
product and to protect it from overheating. and these
openings must not be blocked or covered The openings
should never be blocked by placing the product on a bed.
sofa, rug, or other similar surface, This product should not
be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturers
instructions have been adhered to.

Power Sources - This product should be operated only
from the type of power source indicated on the marking
label. If you are not sure of the type of power supply to
your home, consult your product dealer or local power
company. For products intended to operate from battery
power, or other sources, refer to the operau'ng instructions,

. Grounding or Polarization - This product may be equipped

With a polarized alternatingcurrent line plug (a plug having
one blade wider than the other). This plug will fit into the
power outlet only one way, This is a safety feature, li you
are unable to insert the plug fully into the outlet, try
reversing the plug. ll the plug should still fail to fit, contact
your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.

wraps ifirguwm
inc Alt in m in
use mam tram-cu m

13.

17.

20,

21.

22,

23.

24

25,

Power-Cord Protection 7 Power-supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular
attention to cord; at plugs, convenience receptacles, and
the point Where they exit from the product.

Outdoor Antenna Grounding r If an outside antenna or
cable system is connected to the product, be sure the
antenna or cable system is grounded so as to provide some
protection against voltage surges and built-up static
charges. Article 810 of the National Electrical Code,
ANSI/NFPA 70, provides Information wlrh regard to proper
grounding of the mast and supporting structure, grounding
ol the lead-in wire to an antenna discharge unit, Size of
grounding conductors, location of antennadischarge Urllf,
connection to grounding electrodes, and requirements for
the grounding electrode, See Figure A.

. Lightning - For added protection for this product during a

lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent
damage to the product due to lightning and powerrline
surges.

Power Lines 7 An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into such
power lines or circuits. When installing an outside antenna
system. extreme care should be taken to keep from
touching such power lines or circuits as contact With them
might be fatal

, Overloading , Do not overload wall outlets, extenslon

cords, or integral convenience receptacles as this can result
in a risk of fire or electric shock.

. Object and Liquid Entry 7 Never push ohiects of any kind

into this product through openings as they may touch
dangerous voltage points or short-out pans that could
result in a tire or electric Shock Never Spill liquid bi any
kind on the product.

Servicing - Do not attempt to service this product yourself

as opening or removmg covers may expose you to

dangerous voltage or other hazards Refer all servicing to

Qualified service personnel.

Damage Requiiirg Service - Unplug this product from the

wall outlet and refer servxclng to qualified service personnel

under the following conditions:

a) When the power-supply cord or plug is damaged.

b) If liquid has been spilled, or objecs have fallen Into the
Product.

cl If the product has been exposed to rain or water,

dl If the product does not operate normally by following

the operating instructions. Adiust only those controls

that are covered by the operating instructions as an

impropar adjustment of omer controls may result in

damage and will often require extensive work by a

qualified technician to restore the product to Its normal

operation.

If the product has been dropped or damaged in any way,

and

fi When the product exhibits a distinct change in
performance - this indicates a need for service

Replacement Parts ~When replacement Darts are required.
be sure the servi:e technician has used replacement parts
specilled by the manufacturer or have the same
characteristics as the original part, Unauthoiixed
substitutions may result in fire, electric shock, or other
hazards.

Safety Check - Upon completion of any service or repairs
to this product, ask the service technlclan to perform safety
checks to determine that the product is In proper operating
condition

Wall or Ceiling Mounting -The product should be mounted
to a wall or ceiling only as recommended by the
manufacturer.

Heat - The product should be situated away from heat
sources such as radiators, heat registers, stoves, or other
products [including amplifiers) that produce heat. 2

e

Page 21

IMPORTANT TO SAFETY

WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPosE rI-Ils APPLIANCE To RAIN OR
MOISTURE.

CAUTION

1. Handle the power supply cord carefully
Do not damage or deform the power supply cord.
If it is damaged or deformed, it may cause electric
shock or malfunction when used. When removing
from wall outlet, be sure to remove by holding the
plug attachment and not by pulling the cord.
2. Do not Open the top cover
In order to prevent electric shock, do not open the
top cover.
If problems occur, contact your DENON DEALER.
3. Do not place anything inside
Do not place metal obiects or spill liquid Inside the
system.
Electric shock or malfunction may result.

Please, record and retain the Model name and serial
number of your set shown on the rating label.

Model No. DRAVFIOI

Serial No.

a CA U TI 0 N n
RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:
TO REDUCE THE RlsK or ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). ND

NOTE:

This stereo receiver uses the semiconductor laser. To
allow you to enjoy music at a stable operation, it is
recommended to use this in a room of 5°C (41°F) -
35°C (95°F).

This device complies with Part is of the FCC
Rules. Operation is subject to the followmg two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesued operation.

This Class B digital apparatus meets all
requirements of the Canadian Interference-Causing
Equipment Regulations

Cet appareil numerique de la classe B respecte
toutes les exigences du Reglement sur le materiel
brouilleur du Canada.

¢ FOR CANADA MODEL ONLY

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

v POUR LES MODELE CANADIENS
UNIOUEMENT

ATTENTION

POUR EVITER LES cnocs ELECTRIQUES,
lNTERODUIFlE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE DE
LA PFlISE ET POUSSER JUSOU Au FOND.

USERSERWCEABLE PARTS INSIDE. m.- L
SERVICING T0 QUALIFIED SERVICE
PERSONNEL.
The lightning flash With arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the
presence of uninsulated "dangerous
voltage" Within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.

A

11,

SAFETY INSTRUCTIONS

Read Instructions - All the safety and operating instructions
should be read before the product is operated.

Retain Instructions - The satety and operating instructions
should be retained for future reference,

Heed Warnings - All warnings on the product and in the
operating instructions should be adhered to.

Follow Instructions - All operating and use instructions
should he followed.

Cleaning - Unplug this product from the wall outlet oeiore
cleantng Do not use liquid cleaners or aerosol cleaners.

Attachments - Do not use attachments not recommended
by the product manufacturer as they may cause halards.

Water and Moisture 7 Do not use this product near water -
Ior example, near a bath tub, wash bowl, kitchen sink, or
laundry tub; in a wet basement; or near a swimming pool;
and the like.

Accessories - Do not place this product on an unstable cart.
stand, tripod, bracket, or table. The product may fall, causing
serious Injury to a child or adult, and serious damage to the
product Use only widt a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the product.
Any mounting oi the product should iolicvy the manufacturer's
instmctions, and should use a mounting accessory
recommended by the

manufacturer.

A product and cart ,
combination should be

moved with care. cuick 8
stops, excessive force,

and uneven Surfaces may

cause the product and can A -
combination to overturn. *
Ventilation - Slots and openings in the Cabinet are provided

for ventilation and to ensure reliable Operatlon of the
product and to protect it from overheating, and these
openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed,
sofa, rug, or other similar surface. This product should not
be placed in a built 'n installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer's
instructlons have been adhered to.

Power Sources - This product should be operated only
from the type of power source indicated on the marking
label. it you are not sure oi the type of power supply to
your home, consult your product dealer or local power
company. For products intended to operate rrom battery
power, or other sources, refer to the operating instructions.

. Grounding or Polarization r This product may be equipped

with a polarized alternatingcurrent lirle plug la plug having
one blade Wider than the other). This plug WllI fit into the
power outlet only one way. Thls is a salety feature. it you
are unable to insert the plug iuily into the outlet, try
reversing the plug. lithe plug should still fail to lit, contact
your electrician to replace your obsolete outlet Do not
defeat the safety purpose ol the polarized plug

Mummies?"
m u .m ii

use . mum Euecuim. cots

13.

20,

2i.

22.

23.

24.

25.

Power£ord Protection - Powerrsupply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and
the point where they exit irom the product

, Outdoor Antenna Grounding - If an ouSIde antenna or

cable system is connected to the product, be sure the
antenna or cable system is grounded so as to provide some
protection against voltage surges and blAlItcup static
charges. Article 810 of the National Electrical Code,
ANSI/NFPA 70, provides information With regard to proper
grounding of the mast and supporting structure, grounding
of the leadrin wire to an antenna discharge unit, SIZe oi
grounding conductors. location or antennadischargc unit,
connection to grounding electrodes, and requirements for
the grounding electrode, See Figure A,

. Lightning 7 For added protection lot this product during a

lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent
damage to the product due to Ilghtning and powerrllne
surges.

, Power Lines - An outside antenna system should not be

located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into such
power lines or circuits. When installing an outside antenna
system, extreme care should be taken to keep lrorn
touching such power llnes or circuits as contact with them
might be fatal.

, Overloading - Do not overload wall outlets, extension

cords, or integral convenience receptacles as this can result
in a risk of fire or electric shock.

. Obiect and Liquid Entry - Never push obiects of any kind

into this product through openings as they may touch
dangerous vol-age points or short-out parts that could
result in a fire or electric shock. Never spill liquid ol any
kind on the product

Servicing 7 Do not attempt to service this product yourseli
as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.

Damage Requiring Service - Unplug this product lrom the

wall outlet and refer servicing to qualified sen/ice personnel

under the following conditions:

a) When the powerrsupply cord or plug is damaged,

b) If liquid has been spilled, or obiects have fallen into the
product,

c) if the product has been exposed to rain or water.

d) it the product does not operate normally by following

the operating instructions, Adiust only those controls

that are covered by the operating instructions as an

improper adjustment of other controls may result in

damage and will oiten require extensive work by a

qualified technician to restore the product to ILS normal

operation,

lithe product has been dropped or damaged in any way,

and

When the product exhibits a distinct change in

performance 7 this indicates a need Ior service.

Replacement Parts 7 When replacement parts are required,
be sure the service technician has used replacement parts
speleled by the manufacturer or have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other
haIards.

Safety Check , Upon complefion of any service or repairs
to this product ask the service techniuian to perform safety
checks to determine that the product is in proper operating
Condltlori.

Wall or Ceiling Mounting sTlie product should be mounted
to a wall or ceiling only as recommended by the
manufacturer.

Heat e The product should be situated away from heat
sources such as radiators, heat registers. stoves. or other
products (including amplifiers) that produce heat. 2

e

f
