Denon DCD 720AE Brochure
This is the 2 pages manual for Denon DCD 720AE Brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Denon DCD 720AE Brochure (Ocr-read)

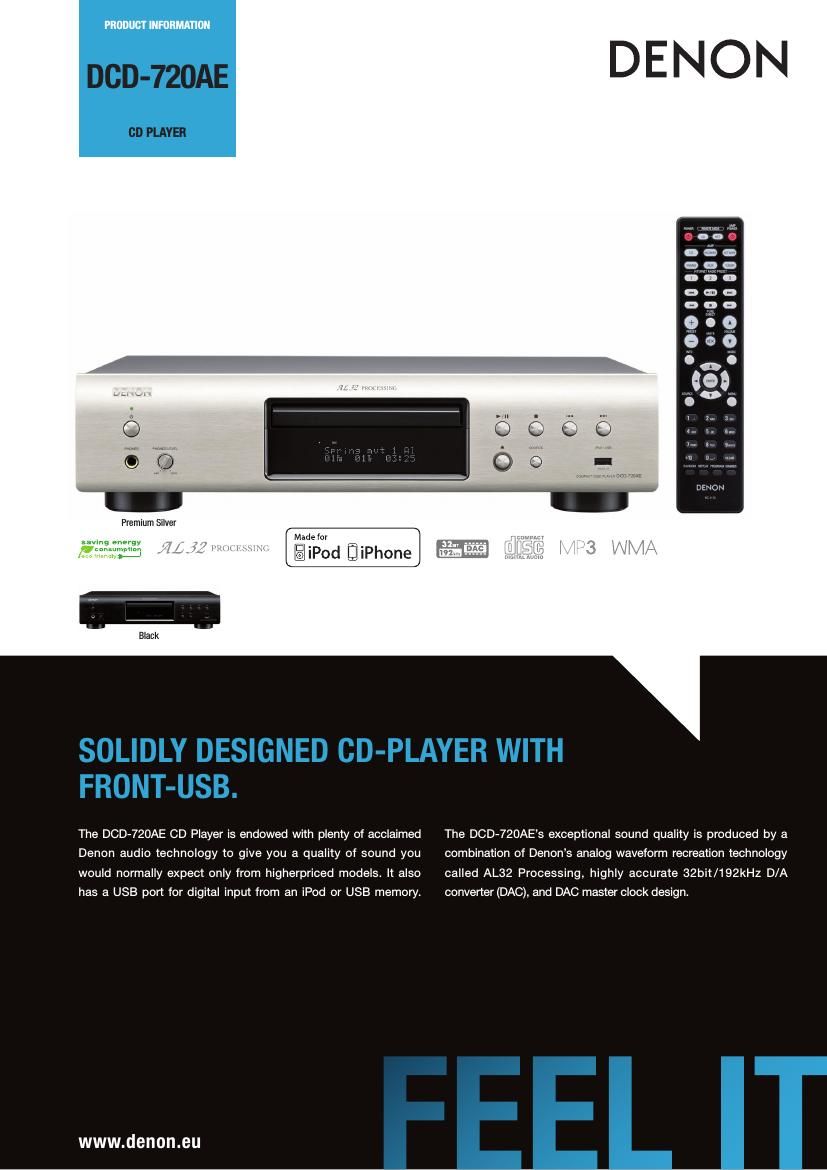

Page 1
DCD-720AE
CD PLAYER
Premium Silver
sa mg energy
)3 22:23
Black
SOLIDLY DESIGNED CD-PLAYER WITH
FRONT-USB.
The DCD720AE CD Player is endowed with plenty of acclaimed
Denon audio technology to give you a quality of sound you
would normally expect only from higherpriced models. It also
has a USB port for digital input from an iPod or USB memory.
www.denon.eu
The DCD720AEs exceptional sound quality is produced by a
combination of Denons analog waveform recreation technology
called AL32 Processing, highly accurate 32bit/192kHz D/A
converter (DAC), and DAC master clock design.
Page 2
Advanced AL32 Processor and high-precisionaz-hit, 192»
kHz DIA converters, to reproduce the original sound
Denons Advanced AL32 Processor expands audio data to 32 bits
and uses a proprietary algorithm to interpolate the data and
perform upconversron and sampling, achieving a playback sound
that is close to the original source. Since highrperformance
devices capable of large capacity processing read data samples
across a wrde spectnrm and process them in a single stage, they
interpolate signals with greater precision compared with mulnr
stage digital filters and othersuch devices. In addition, the use of
algorithms ideal for frequency characteristics outside the audible
range to filter sudden bursts of musical data or continuous sound
at high frequencies protects sound quality from the adverse
effects of aliasing noise or drops in highrrange response. The
Advanced AL32 Processor reproduces the delicate nuances of
musrc, as well as spatial information such as the position of the
artist and the breadth, height, and depth of the stage, in a more
natural manner.
NEW FEATURES
- AL32 Processing
- High precision 32bit 192kHz D/A converter
- Improved sound quality
- Newly designed remote controller
Damn is a trademark or regisiersd trademark of D&M Holdings, Inc.
~ Product available In Black and Premium siiver
~ All specs can be subject to arrange
EU DCD720AEEKE2 45321 (6367742 Black
Dcm2oAEsPE2 4532116367756 Premium sirver
UK Dcm2oAEEt
Denon Europe
it
www.denon.eu
To ensure that the Advanced AL32 Processor performs at its
maximum potential, the DCDV720AE has been fitted With high
precision 32bit, 19271012 D/A converters. These D/A converters
transmit differential output to each channel to improve sound
quality during playback. These converters let you enioy minute
details of music with remarkable clarity, including the acoustic
resonances of concert halls.
USB port for playback from an iPod or USB memory
This port lets you connect an iPod or USB memory and directly
play WMA or MP3 music files stored on those dev1ces. Since
digital signals from the USB port pass through the DCDV720AEs
highgrade audio circuitry, you can hear these files in highrquality
sound. You can also use the remote controller to select files, and
file names and other information can be viewed on the display.
The DCDV720AE can even recharge your iPod and iPad while it is
connected.
STATE-OF-THErART DEMON SOLUTIONS
FOR MAXIMISING CONTENT OUALITV
- AL32 Processing
- Master Clock Design
- CDrR/CDVRW playback (MP3,WMA)
- USB port for playbackfrom USB memory
- iPod / iPhone direct playback via USB
- Vibrationrresistant design with Direct Mechanical
Ground Construction
- Original Denon Mechanism with central assembly
drawer unit
- Carefully designed construction to preserve
audio signal
- Minimum signal path design
- 2 line fluorescent display
- Strictly selected parts for high sound quality
- Pure Direct to preserve pure audio details
- Aluminium front panel
- European soundrtuned
Specifications
2 oiiariiiei stereo
Dy f'llt. rigs too as
Sig 110 as
Toul ritiririori c distortion o 0025% 11 kHz)
General
Power supply AC 230 v, 50 Hz
Po orrsurripiiuri 22 w
Dl fISDIIS fot-lxD) 434xio7x279 rrim
Weigru 4 2 Kg
.
A-A
DAC master clock design, to suppress jitter and noise
The DCDV720AE features the same type of DAC that is used
in our highrclass CD player as a master of clock signals for all
devices. Since these clock signals are generated by an oscillator
circuit module, it is possible to obtain highly reliable oscillation
unaffected by other elements.
Vibration-resistant design with Direct Mechanical Ground
Construction
The power transformers, themselves a source of vibration, have
been placed near the ground and immediately above the molar
tors to allow direct release to the ground and thoroughly prevent
the propagation of unwanted vibration or noise.
EASE-OF-USE
- USB port for playback from an iPod or USB memory
- ECO friendly with low power consumption in stand by
and auto power off
- New designed Remote control unit equipped with buttons
of different shapes and srzes based on theirfunctions for
easy operation
- Integration with the new PMA7720AE's remote control unit
- Folder Mode function, for playing only files stored in specific
folders (used when playing discs with MPa/WMA files]
- Design matches the new PMAV720AE integrated amplifier
am (6 if:
rrr
Complementary products
0560 O :7; Q
PMA7720AE
Integrated Amplifier
DNPV720AE
Network Audio Player
