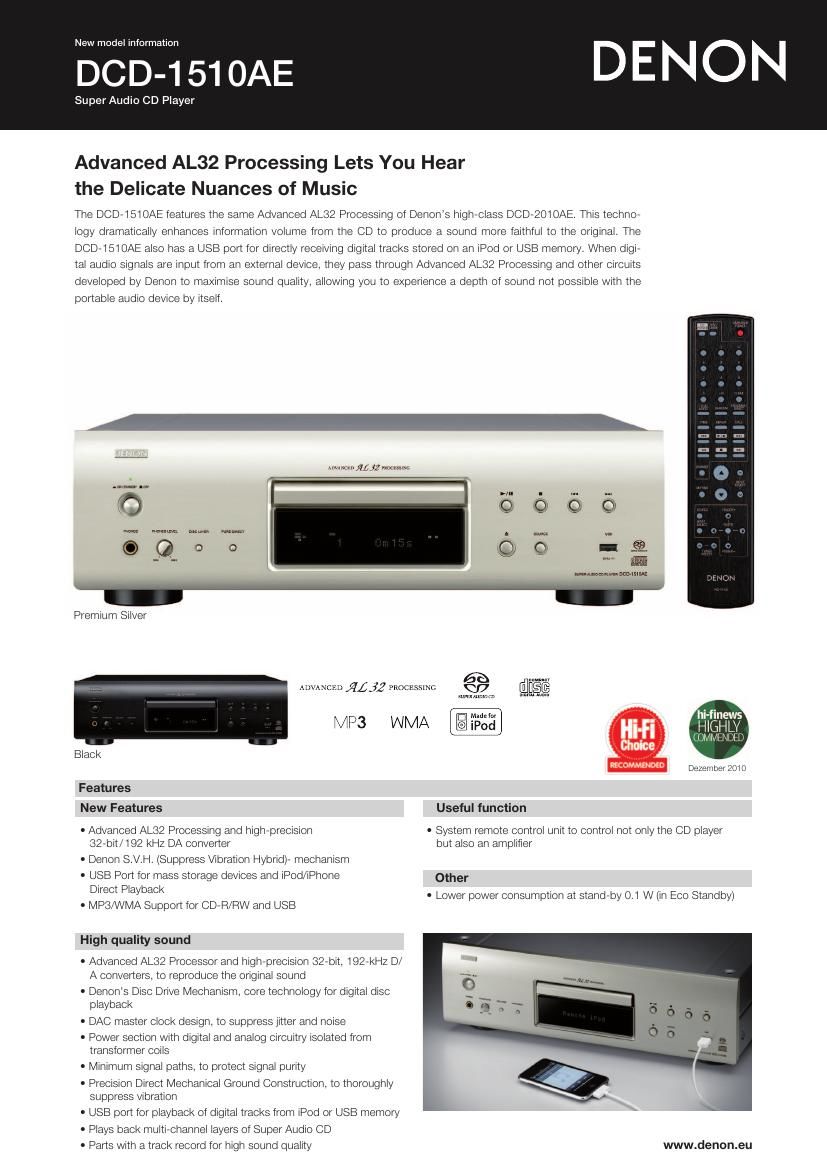

Page 1

New model information

DCD 151 OAE

Super Audio CD Player

Advanced AL32 Processing Lets You Hear

the Delicate Nuances of Music

The DOD-1510AE features the same Advanced AL32 Processing of Denons high-class DCD-ZOWOAE. This techno-
logy dramatically enhances information volume from the CD to produce a sound more faithful to the original. The
DCD-iSiOAE also has a USB port for directly receivrng digital tracks stored on an iPod or USB memory. When digi-
tal audio signals are input from an external device, they pass through Advanced AL32 Processing and other crrcwts
developed by Denon to maximise sound quality. allowing you to experience a depth of sound not possible with the
portable audio device by itself.

ummmjujz "(Mame

"- mm at. nan-m

.Qoo

Premium Silver

Amnxcsu flfijZ PROCESSNG Qf) WEE
MP3 WMA
Black
M JMMNN" Dezember 2010
Features
New Features Useful function
0 Advanced AL32 Processmg and high-precision - System remote control unit to control not only the CD player
32-bit/192 kHz DA converter but also an amplifier
- Denon S.V.H, (Suppress Vibration Hybrid)- mechanism
0 USB Port for mass storage devrces and iPod/iPhone Other

Direct Playback

- Lower power consumption at stand-by 0.1 W (in Eco Standby)
0 MPS/WMA Support for CD-R/RW and USB

High quality sound
0 Advanced AL32 Processor and high-precision 32-bit, 192-kHz D/
A converters. to reproduce the original sound

- Denons Disc Drive Mechanism, core technology for digital disc
playback

- DAC master clock deSign, to suppress Jitter and nose

0 Power section With digital and analog circuitry isolated from
transformer corls

- Minimum signal paths, to protect signal purity

- PreciSion Direct Mechanical Ground Construction, to thoroughly
suppress vibration

- USB port for playback of digital tracks from iPod or USB memory
0 Plays back multi-channel layers of Super Audio CD
0 Parts with a track record for high sound quality www.denon.eu

Page 2

High quality sound

Advanced AL32 Processor and high-preci-
sion32-bit, 192-kHz D/A converters, to repro-
duce the original sound

Denon's Advanced AL82 Processor expands
audio data to 32 bits and uses a proprietary al
gorithm to interpolate the data and perform upr
conversion and sampling, achieving a playback
sound that is close to the original source Since
highrperformance devices capable of large
capacity processing read data samples across a
Wide spectrum and process them in a single stage,
they interpolate signals With greater precision come
pared With multirstage digital filters and other such
devices. in addition, the use of algorithms ideal for
frequency characteristics outside the audible range
to filter sudden bursts of musical data or COiiller
ous sound at high frequencies protects sound
quality from the adverse effects of aliasing noise
or drops in highrrange response The Advanced
AL32 Processor reproduces the delicate nuances
of music, as well as spatial information such as the
position of the artist and the breadth, height, and
depth of the stage. in a more natural manner

To ensure that the Advanced AL32 Processor perr
forms at its maximum potential. the DCDrlSiOAE
has been fitted with highrprecision 32bit. 192*kHz
D/A converters. These D/A converters transmit dllr
ferential output to each channel to improve sound
quality during playback. These converters let you
enioy minute details of music with remarkable clarr
ity, including the acoustic resonances of concert
halls.

Denon's Disc Drive Mechanism, core
technology for digital disc playback

Since Super Audio CD rotates at high speed, the
drive mechanism itself is a source of considerable

Main Specifications

vibration. To thoroughly suppress that vibration, the
motor shaft in the DCDrlSiOAE has been short
ened as much as possible. and the drive motor
has been placed close to the turntable. Misalignr
ment of the laser beam axis and the angle of the
turntable or pickup mechanism base affect disc
reading accuracy. To eliminate such mechanir
cal variations and ensure high accuracy in signal
playback and playability. corrections have been
made for each unit individually. in addition, a S.\/.l-t.
(Suppression Hybrid Construction) loader of a
hybrid construction combining different materials
gives stability to the disc drive so that the disc can
be read With optimum accuracy.

DAC master clock design, to suppress jitter
and noise

The DCDrtfitOAE features the same type of DAC
that is used in our highrclass CD player as a masr
ter of clock signals for all devices. Since these
clock signals are generated by an oscillator circuit
module, it is possible to obtain highly reliable osciir
lation unaffected by PC board patterns and other
elements.

Power section with digital and analog

circuitry isolated from transformer coils

The digital and analog circuits have been sepa
rated from the transformer coils to minimise mutual
interference

Minimum signal paths, to protect signal purity

The signal paths are all simple and straight to
ensure pure, noiserfree audio playback. Signal
degradation is prevented by minimising tWists
and turns in the signal path. in the DCDriSlOAE.
servorrelated digital signal processing occurs
directly beloW the disc mechanism unit to shorten
the digital signal path and boost signalrtoVnoise
(S/N) performance. The transformers for the digr

Analog Output
cnenneis

Frequency range

Frequency response
Signalrtoenoise ratio
Dynamic range

Total harmonic distortion
Wow 8. Flutter

Output voltage (unbalanced)
signal system

Sampling frequency

Digital Output
Coaxial

Optical

Emission Wavelength
General

Power supply
Power consumption

Dimensions (w x H x D)
Weignt

Super Audio CD CD

2 channels 2 channels
2HleDOkl-tz 2H2720kHZ
2 Hz , 50 kHz (73 dB] 2 HZ , 20 kHz
H7 dB (audible band) l l7 dB

HIS dB (audible band) iOO dB

0 ODlO Va (l kHz, audible bandl
Below measurable limit

coma % (t kHz)
Below measurable iirnit

20\/(l0kohnil 2DVlleohrri]
lebil DSD l67bit Linear PCM
2 822 MHZ 44 l kHz

AC 230 v, 50 Hz
30 w

o 2 W (Standby)

o 1 W (Eco Standby)
434 x i35 x sst mm
s 0 kg

0 5 Von/75 onni
45 to at dBm
660 nm

ital and analog signals have also been mounted
in separate locations Within the chassis, and the
power unit for the analog signals has been placed
near the analog circuit board to shorten the path
from the power circuit and achieve lower impede
ance. These design improvements further ensure
a stable supply of current and playback of a spa
cious. transparent sound.

Precision Direct Mechanical Ground
Construction, to thoroughly suppress vibration
The disc drive mechanism, designed With a low
centre of gravity, has been placed at the centre of
the main chassis and mounted at a lower position
compared to conventional CD players to further imr
prove resistance to vibration The mounting struc7
ture has also been simplified to reduce the number
of resonance points. The adverse influences of
both internal and external vibration on sound quality
are now negligible.

USB port for playback of digital tracks from
iPod or USB memory

The DCD71501AE includes a USB port that lets
you play digital music files directly from your iPod
or USB memory i ii The signals pass through the
DCDrtSiOAE's Advanced AL32 Processor and
highrprecision 32bit, 1927kl-tz D/A converters to
give you extremely satisfying, highrquality sound.
You can also use the remote control unit to select
files, and file names and other details can be dis
played. The iPod can also be recharged during
playback.

(1) Supports 5thrgeneration iPOds and later, and use
memories of mass storage class

Plays back multi-channel layers of Super Audio
CD

The DCDri 5tOAE lets you doanix the multir
channel layers of Super Audio CD to stereo during
playback.

Parts with a track record for high sound quality
Denon engineers have strictly selected parts that
have passed a battery of listening tests based on
their many years of experience developing top
quality audio equipment. The sound of the DOD
iStOAE has been carefully tuned to achieve a level
of quality that is one rank above other players in
this class

Useful function

System remote control unit to control not only the
CD player but also an amplifier 2

The supplied remote control unit can be used to
operate the Denon PMAriBiOAE integrated amplir
fier as Well as the DCDrlBiOAE. The buttons used
most frequently have been arranged for easy op
eration when the unit is held in one hand.

l2l DCDrlSiOAEs remote control unit is the same as
PMAri5lDAEs one RCrl l43]

Other

Lower poWer consumption at standrby O.t W (in
Eco Standby)

EAN
DCDl 5i OAEBKE2
DCDl 5i OAESPE2

4582i l6364567
4582i l6364550
